Andamiro Co., Ltd.

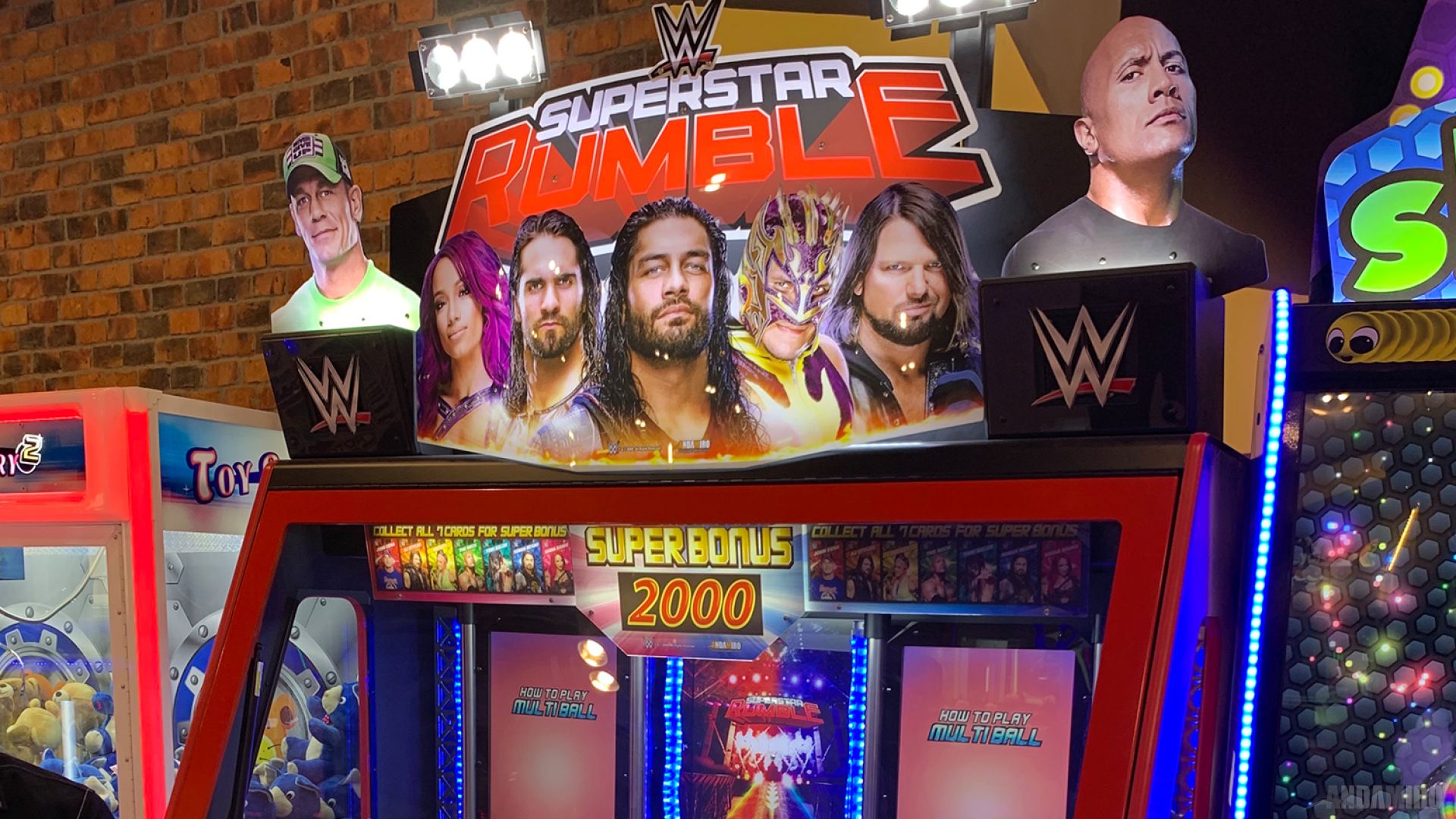

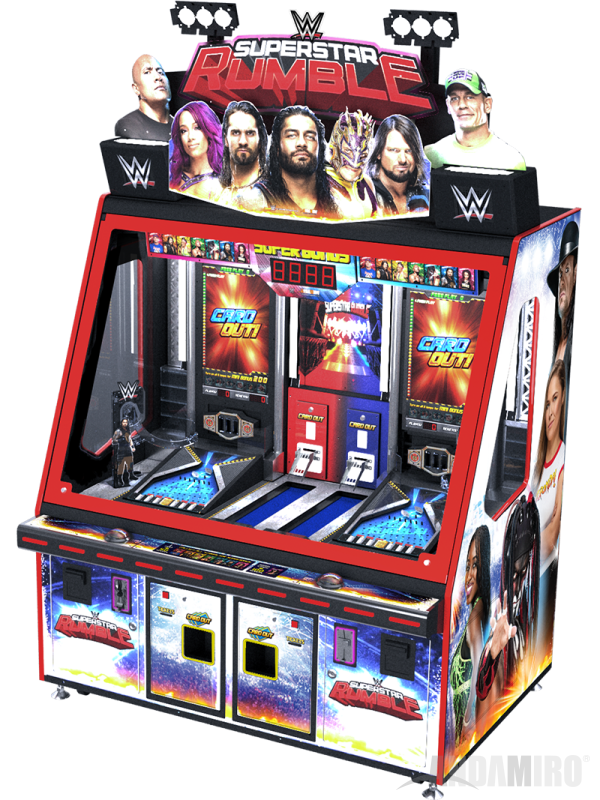

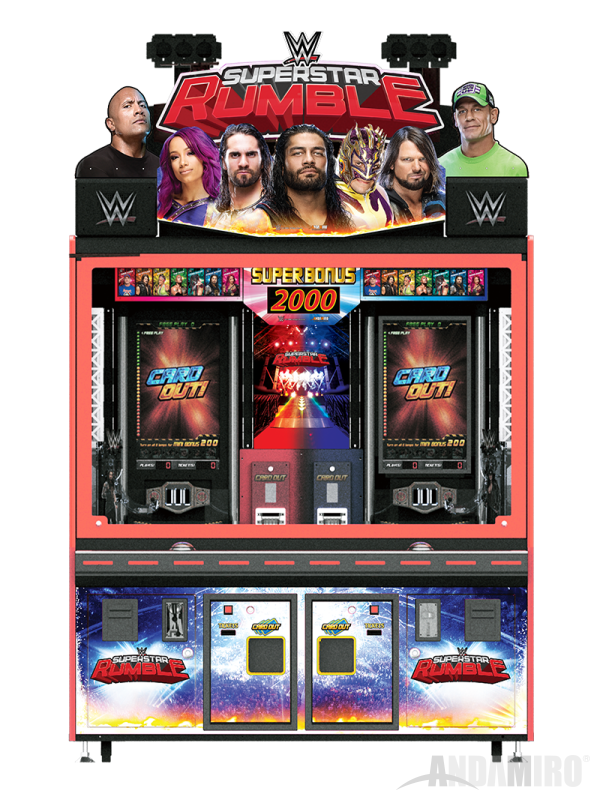

TICKET REDEMPTION WWE SUPERSTAR RUMBLE ALL THE CARDS ARE SUPERSTARS!

Short url COPY http://www.andamiro.com/games/wwesuperstar

Tags WweSuperstarRumble Ticket

Dimensions 1,582mm x 1,212mm x 2,460mm
62" x 48" x 97"

Packing Dimensions 1,700mm x 1,150mm x 2,200mm
67" x 45" x 87"

Product Weight 460 kg / 1,014 lbs

Packing Weight 515 kg / 1,135 lbs

Power 530W

INQUIRY

PARTS INQUIRY

INQUIRE
CATEGORY OF QUESTIONS	TYPE OF QUESTIONS
AREA	AREA
COUNTRY	COUNTRY
Your Name (required)	Your Name (required)
Your Email (required)	Your Email (required)
Subject	Subject
Select Parts	Select Parts
Your Message	Your Message
FILE UPLOAD ##1	FILE UPLOAD ##1
FILE UPLOAD ##2	FILE UPLOAD ##2
CAPTCHA	CAPTCHA
NEWS LETTER	NEWS LETTER Yes! I would like to receive ANDAMIRO's newsletter.
CAPTCHA
I agree to the collection and use of personal information.

SUPPORT

Leaflets (1)
Manuals (1)
Document (0)
Trouble shooting
Video List (0)

FEATURES

ALL THE CARDS ARE SUPERSTARS!

EASY AND EXITING PLAY

RAPID-FIRE EXCITEMENT

TWO PLAYER STATIONS

COLLECTIBLE CARD SET OF 7 FOR SUPER BONUS

COLLECTIBLE LEGEND CARD

GALLERY

PARTS

동기화 작업중입니다.
페이지를 이동하거나 닫으면 오류가 발생할 수 있습니다.

Total 227Parts

No.	Part name Part picture	Code Info	Part picture	Part Add

1	AC INPUT DAC-13H	AC INPUT MELE0SWI015	Part picture

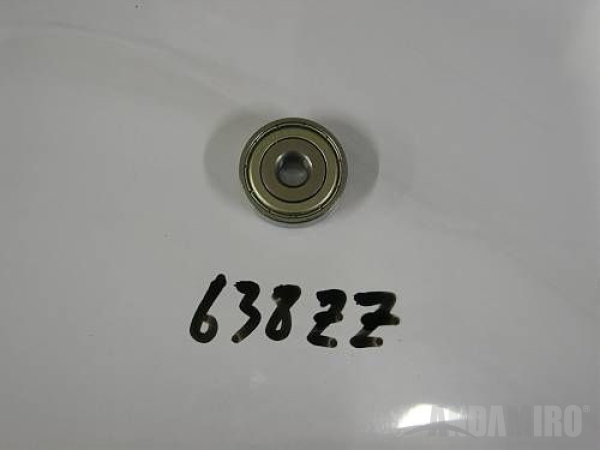

2	BEARING 638ZZ	BEARING MZZZ0BEA064	Part picture

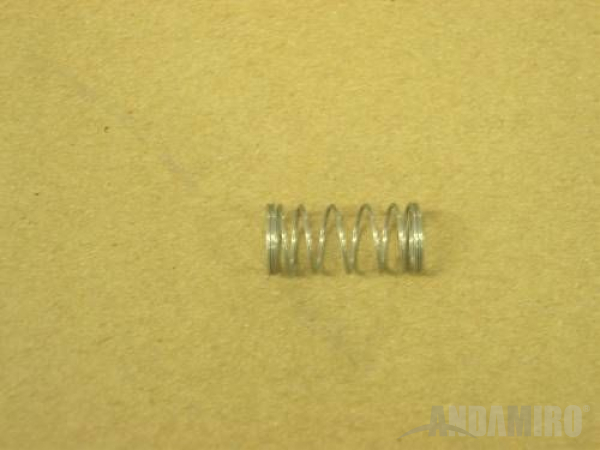

3	Z MOTOR PART TENSION SPRING .	Z MOTOR PART TENSION SPRING MWID0SPR001	Part picture
4	SPEAKER TERMINAL DJ-025	SPEAKER TERMINAL MZZZ0SPE034	Part picture

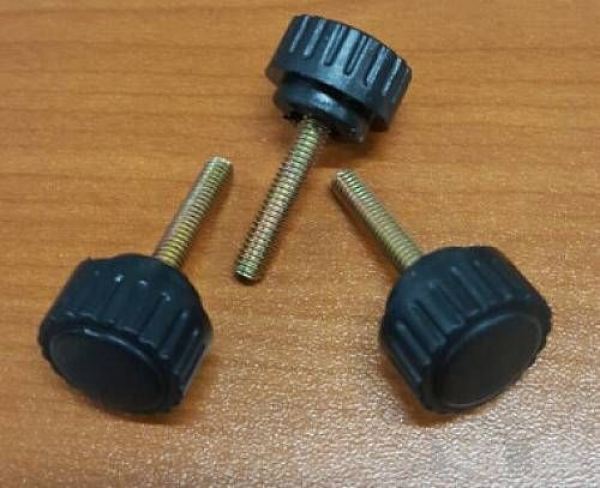

5	HAND BOLT M4, PKB4 4*10L	HAND BOLT MZZZ0PLA030	Part picture

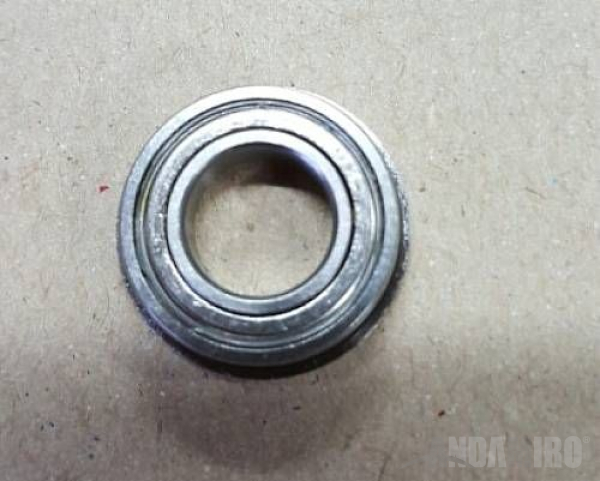

6	BEARING F6800ZZ, D10 D19 B5	BEARING MZZZ0BEA092	Part picture

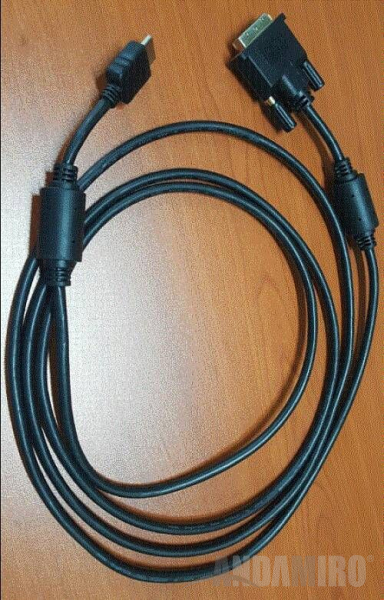

7	MONITOR CABLE NM-HD03GZ HDMI_DVI 3M	MONITOR CABLE NM-HD03GZ MZZZ0HAN064	Part picture

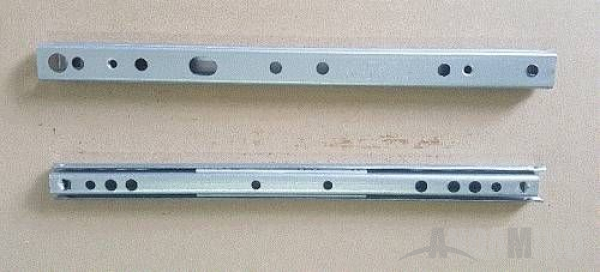

8	SLIDE RAIL S1000/1218B	SLIDE RAIL MDM30PAR001	Part picture

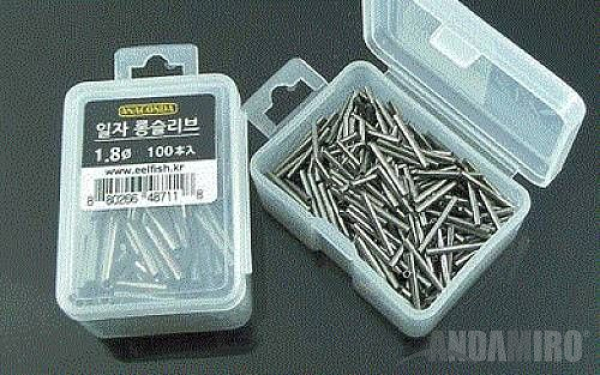

9	CARBON LONG SLIVE 3파이* 15MM 3파이* 길이15MM	CARBON LONG SLIVE 3파이* 15MM MZZZ0SLV003	Part picture

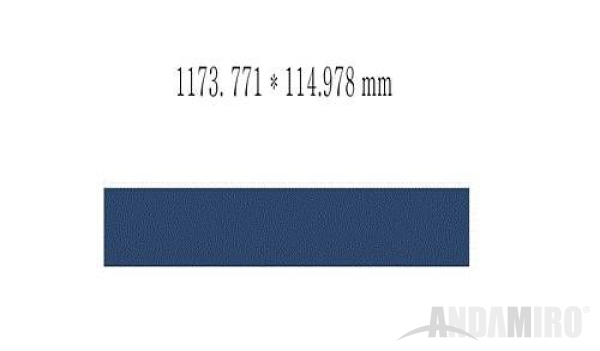

10	CARD CONVEYOR BELT ASS'Y 115*570(1141.6)	CARD CONVEYOR BELT ASS'Y ADM30ASS003	Part picture

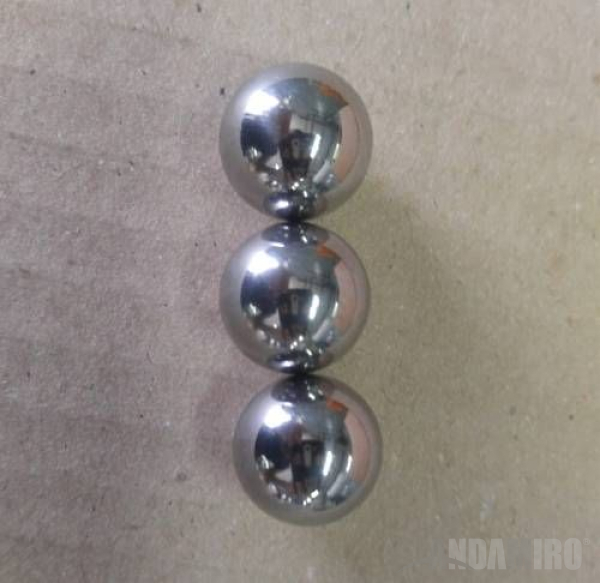

11	BALL 15.08MM PI STEEL	BALL MZZZ0BLL006	Part picture

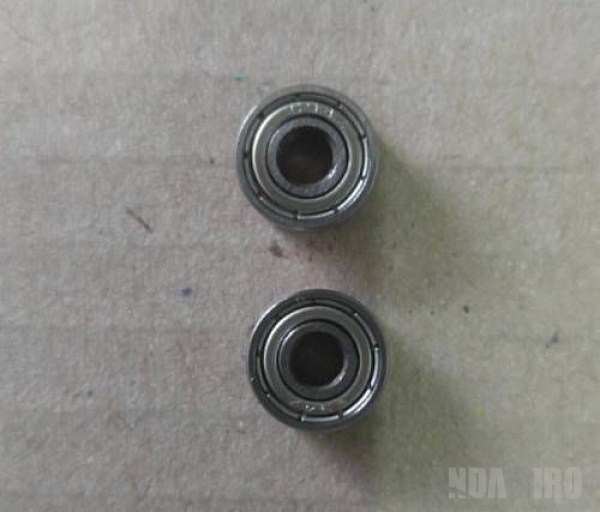

12	BEARING 694Z	BEARING MZZZ0BEA011	Part picture

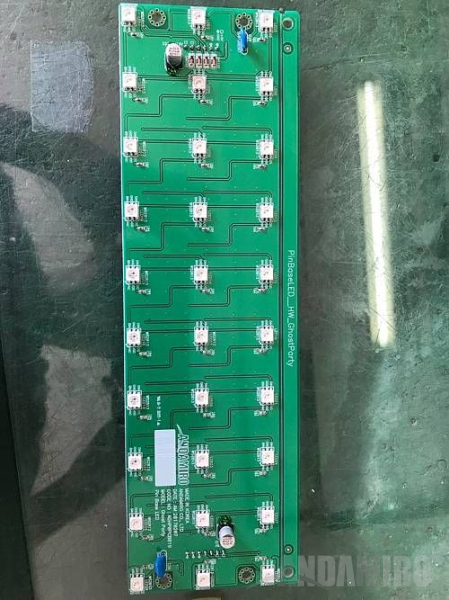

13	PIN BASE LED PCB ASS'Y GHOST PARTY	PIN BASE LED PCB ASS'Y AGHP0PCB019	Part picture
14	SPONGE_10X1000 4T BLACK	SPONGE_10X1000 4T MPCX0PLA007	Part picture

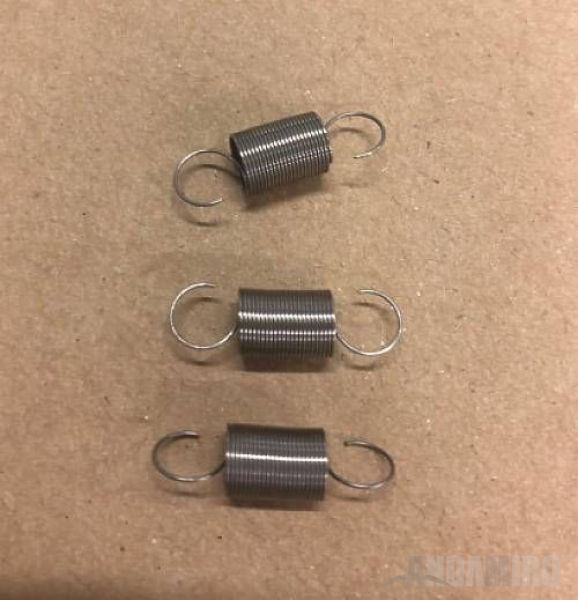

15	BONUS TARGET GATE SPRING SUS304-Ø0.4	BONUS TARGET GATE SPRING MWWE0SPR001	Part picture
15.1	[BONUS TARGET GATE SPRING] MONITOR SIDE PIPE CAP SHAFT .	[BONUS TARGET GATE SPRING] MONITOR SIDE PIPE CAP SHAFT MWWE0PRO011	Part picture
15.2	[BONUS TARGET GATE SPRING] ELEVATOR BRAKE SHAFT 열처리봉	[BONUS TARGET GATE SPRING] ELEVATOR BRAKE SHAFT MGHP0PRO032	Part picture
15.3	[BONUS TARGET GATE SPRING] ELEVATOR DISK BUSH ACETAL	[BONUS TARGET GATE SPRING] ELEVATOR DISK BUSH MGHP0PRO012	Part picture
15.4	[BONUS TARGET GATE SPRING] ELEVATOR BRAKE BUSHING ACETAL	[BONUS TARGET GATE SPRING] ELEVATOR BRAKE BUSHING MGHP0PRO031	Part picture
15.5	[BONUS TARGET GATE SPRING] ELEVATOR CENTER BUSHING ACETAL	[BONUS TARGET GATE SPRING] ELEVATOR CENTER BUSHING MGHP0PRO033	Part picture
15.6	[BONUS TARGET GATE SPRING] ELEVATOR DISK SHAFT SM45C	[BONUS TARGET GATE SPRING] ELEVATOR DISK SHAFT MGHP0PRO003	Part picture
15.6.1	[BONUS TARGET GATE SPRING] CONVEYOR TENSION SHAFT BUSHING .	[BONUS TARGET GATE SPRING] CONVEYOR TENSION SHAFT BUSHING MDM30PRO016	Part picture

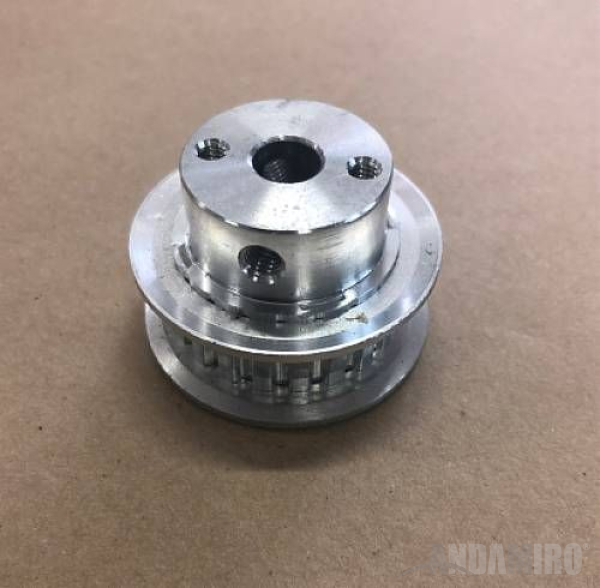

15.6.2	[BONUS TARGET GATE SPRING] CARD CONVEYOR MOTOR PULLEY .	[BONUS TARGET GATE SPRING] CARD CONVEYOR MOTOR PULLEY MDM30PRO004	Part picture

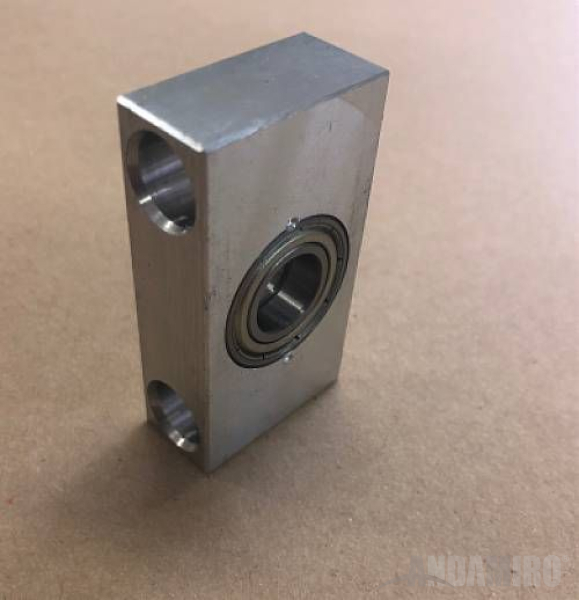

15.6.3	[BONUS TARGET GATE SPRING] CONVEYOR TENSION BEARING HOUSING .	[BONUS TARGET GATE SPRING] CONVEYOR TENSION BEARING HOUSING MDM30PRO014	Part picture
15.6.4	[BONUS TARGET GATE SPRING] CONVEYOR TENSION BLOCK .	[BONUS TARGET GATE SPRING] CONVEYOR TENSION BLOCK MDM30PRO015	Part picture
15.6.5	[BONUS TARGET GATE SPRING] CARD CONVEYOR MOTOR ROLLER .	[BONUS TARGET GATE SPRING] CARD CONVEYOR MOTOR ROLLER MDM30PRO005	Part picture
15.6.6	[BONUS TARGET GATE SPRING] CONVEYOR TENSION SHAFT .	[BONUS TARGET GATE SPRING] CONVEYOR TENSION SHAFT MDM30PRO017	Part picture
15.6.7	[BONUS TARGET GATE SPRING] CARD CONVEYOR SUPPORT SHAFT .	[BONUS TARGET GATE SPRING] CARD CONVEYOR SUPPORT SHAFT MDM30PRO006	Part picture
15.6.8	[BONUS TARGET GATE SPRING] CARD CONVEYOR IDLE ROLLER .	[BONUS TARGET GATE SPRING] CARD CONVEYOR IDLE ROLLER MDM30PRO003	Part picture

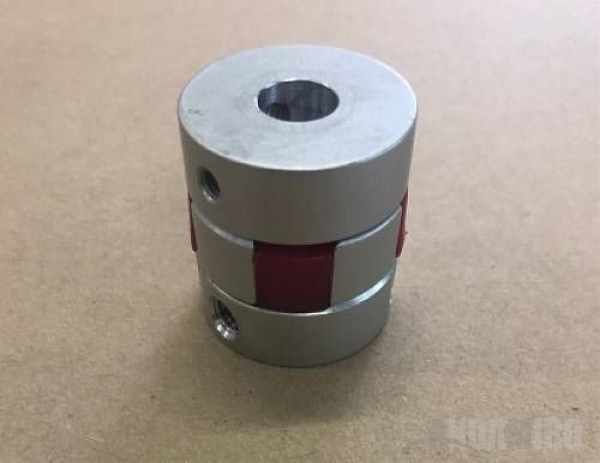

15.7	[BONUS TARGET GATE SPRING] ELEVATOR COUPLING_JOC30 COUPLING	[BONUS TARGET GATE SPRING] ELEVATOR COUPLING_JOC30 MGHP0PRO024	Part picture
15.8	[BONUS TARGET GATE SPRING] MONITOR SIDE PIPE .	[BONUS TARGET GATE SPRING] MONITOR SIDE PIPE MWWE0PRO012	Part picture

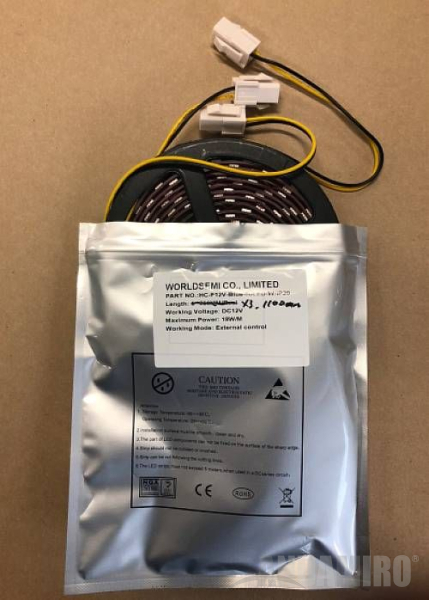

16	FLEX_5050_BLUE_1100_NWP_L_66 T5050 TOP 300구 66알	FLEX_5050_BLUE_1100_NWP_L_66 MELE0LED053	Part picture
17	FLEX_WS2813B_700_NWP_LR_42 WS2813 TOP300구 42알	FLEX_WS2813B_700_NWP_LR_42 MELE0LED054	Part picture

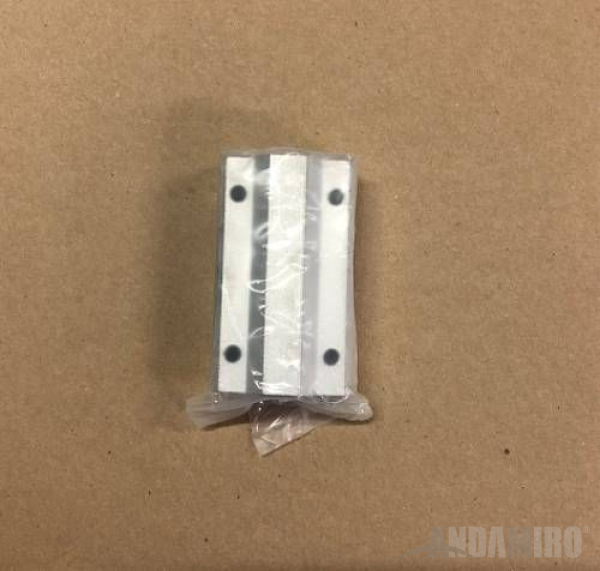

18	LM BEARING SL10UU	LM BEARING MZZZ0BEA125	Part picture

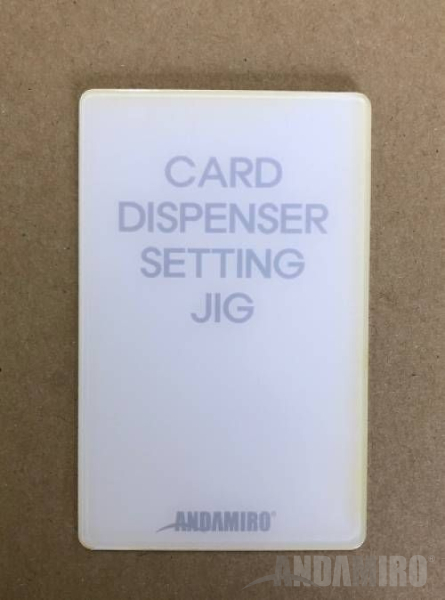

19	CARD DISPENSER SETTING JIG SBP_DC_WWE	CARD DISPENSER SETTING JIG AZZZ0ACP002	Part picture
19.1	[CARD DISPENSER SETTING JIG] BILLBOARD TITLE ACRYL FIX SHAFT .	[CARD DISPENSER SETTING JIG] BILLBOARD TITLE ACRYL FIX SHAFT MWWE0PRO003	Part picture
19.2	[CARD DISPENSER SETTING JIG] BILLBOARD FRONT ACRYL SIDE FIX SHAFT .	[CARD DISPENSER SETTING JIG] BILLBOARD FRONT ACRYL SIDE FIX SHAFT MWWE0PRO002	Part picture
19.3	[CARD DISPENSER SETTING JIG] BONUS TAREGT GATE BUSHING	[CARD DISPENSER SETTING JIG] BONUS TAREGT GATE BUSHING MWWE0PRO004	Part picture
19.4	[CARD DISPENSER SETTING JIG] BONUS TARGET SHAFT BUSHING .	[CARD DISPENSER SETTING JIG] BONUS TARGET SHAFT BUSHING MWWE0PRO008	Part picture
19.5	[CARD DISPENSER SETTING JIG] PIN BASE CAM BEARING HOUSING .	[CARD DISPENSER SETTING JIG] PIN BASE CAM BEARING HOUSING MWWE0PRO013	Part picture
19.6	[CARD DISPENSER SETTING JIG] BILLBOARD FRONT ACRYL MIDDLE FIX SHAFT .	[CARD DISPENSER SETTING JIG] BILLBOARD FRONT ACRYL MIDDLE FIX SHAFT MWWE0PRO001	Part picture
19.7	[CARD DISPENSER SETTING JIG] PIN BASE CAM ENCODER BUSHING .	[CARD DISPENSER SETTING JIG] PIN BASE CAM ENCODER BUSHING MWWE0PRO015	Part picture
19.8	[CARD DISPENSER SETTING JIG] PIN SHAFT BRASS	[CARD DISPENSER SETTING JIG] PIN SHAFT MGHP0PRO025	Part picture
19.9	[CARD DISPENSER SETTING JIG] CHUTE SPACER SHAFT SM45C	[CARD DISPENSER SETTING JIG] CHUTE SPACER SHAFT MGHP0PRO039	Part picture
19.10	[CARD DISPENSER SETTING JIG] BONUS TARGET LM SHAFT .	[CARD DISPENSER SETTING JIG] BONUS TARGET LM SHAFT MWWE0PRO007	Part picture
20	MIDDLE DISPLAY FRONT LED PCB ASS'Y .	MIDDLE DISPLAY FRONT LED PCB ASS'Y AWWE0PCB003	Part picture
21	PIN BASE SIDE LED PCB ASS'Y .	PIN BASE SIDE LED PCB ASS'Y AWWE0PCB004	Part picture

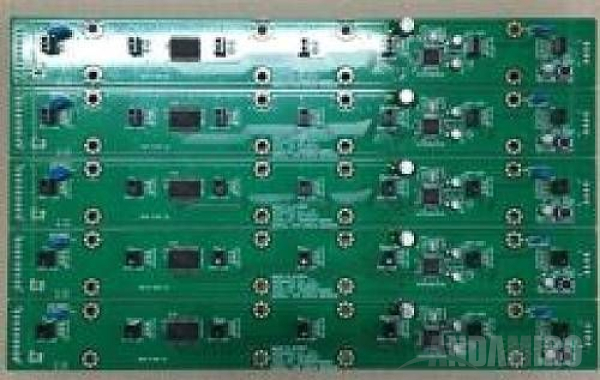

22	PIN CHECK SENSOR PCB ASS'Y .	PIN CHECK SENSOR PCB ASS'Y AWWE0PCB006	Part picture

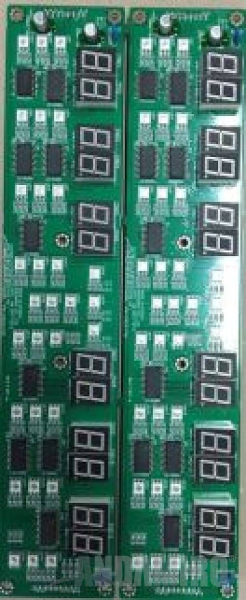

23	PIN CHECK FND PCB ASS'Y .	PIN CHECK FND PCB ASS'Y AWWE0PCB007	Part picture

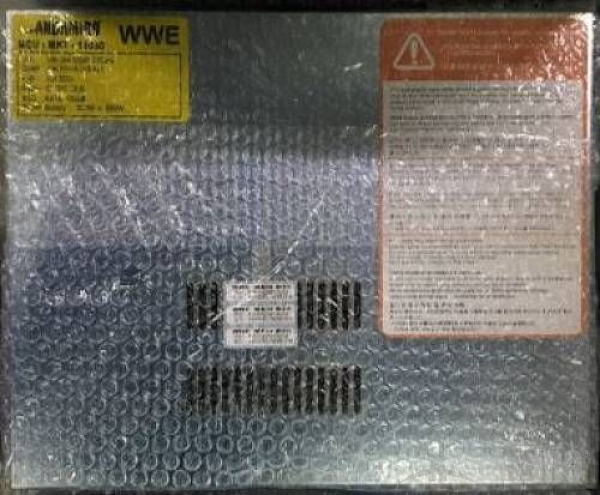

24	MAIN BOX ASS'Y WWE_MK7	MAIN BOX ASS'Y AWWE0SYS001	Part picture
25	BONUS TARGET SENSOR PCB ASS'Y .	BONUS TARGET SENSOR PCB ASS'Y AWWE0PCB005	Part picture

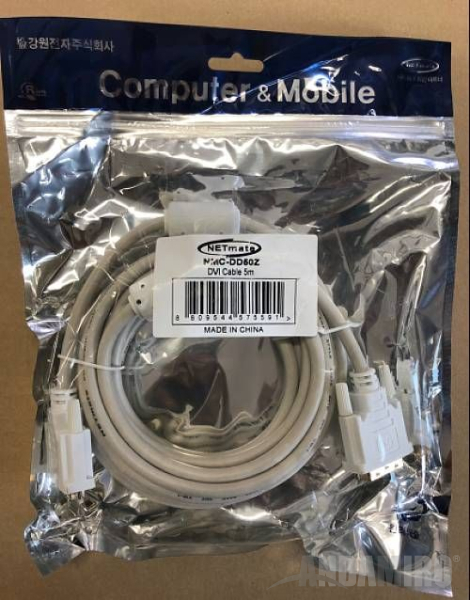

26	MONITOR CABLE NMC-DD50Z DVI_DVI 5M	MONITOR CABLE NMC-DD50Z MZZZ0HAN097	Part picture
26.1	[MONITOR CABLE NMC-DD50Z] IC NSP5112 NSP5112	[MONITOR CABLE NMC-DD50Z] IC NSP5112 PICS0AMP005	Part picture

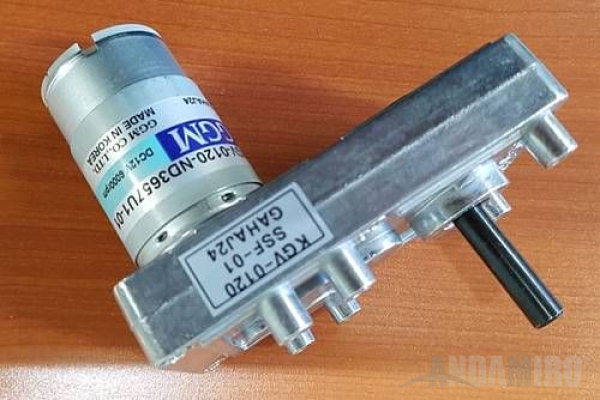

27	MOTOR KGV-0120-ND3657 U1	MOTOR MZZZ0MOT141	Part picture

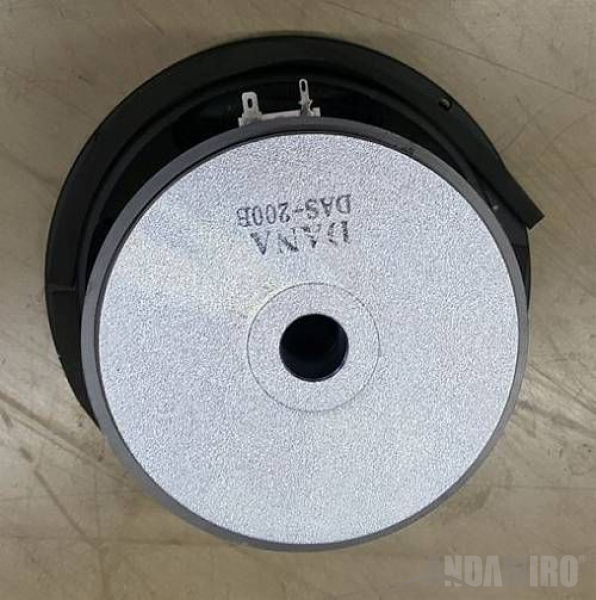

28	SPEAKER 8 INCH SUB W00FER DSU-205W	SPEAKER MZZZ0SPE036	Part picture

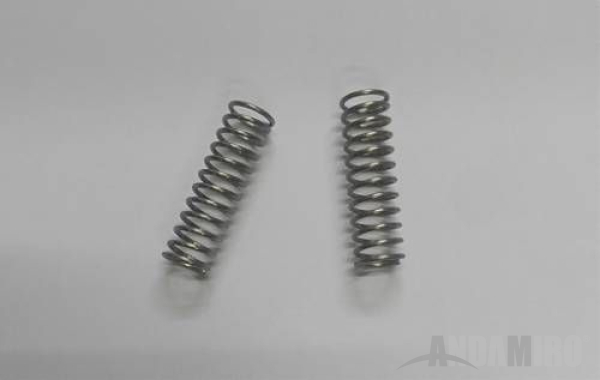

29	CONVEYOR TENSION SPRING SUS304-Ø1.2	CONVEYOR TENSION SPRING MDM30SPR001	Part picture
29.1.1	[CONVEYOR TENSION SPRING] RAM_V1 LPDDR3 4GB PC3L-12800 SAMSUNG	[CONVEYOR TENSION SPRING] RAM_V1 MZZZ0000698	Part picture

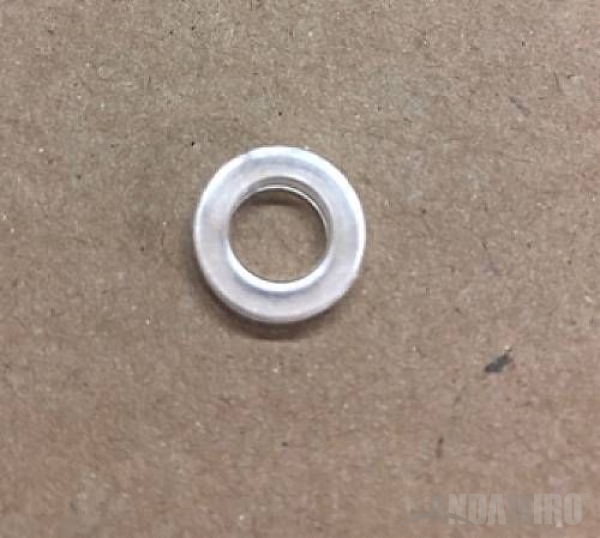

30	ELEVATOR WASHER MOLD MOLD	ELEVATOR WASHER MOLD MGHP0PLA005	Part picture

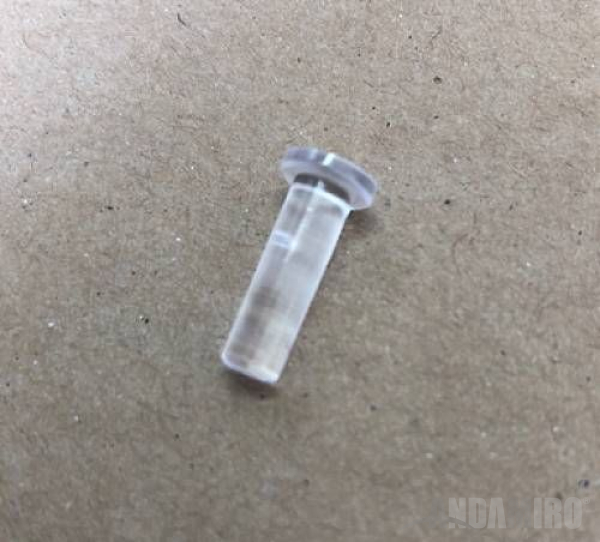

31	PIN SHAFT MOLD MOLD	PIN SHAFT MOLD MGHP0PLA004	Part picture
31.1.1	[PIN SHAFT MOLD] CONVEYOR IDLE PULLEY .	[PIN SHAFT MOLD] CONVEYOR IDLE PULLEY MDM30PRO013	Part picture

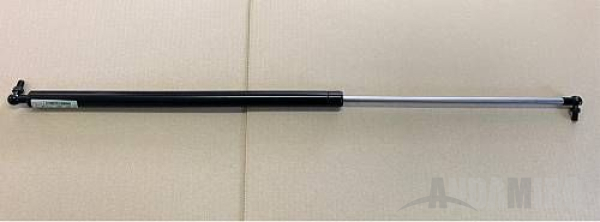

32	GAS SPRING GSB-22X761-30KG	GAS SPRING MZZZ0SHO014	Part picture

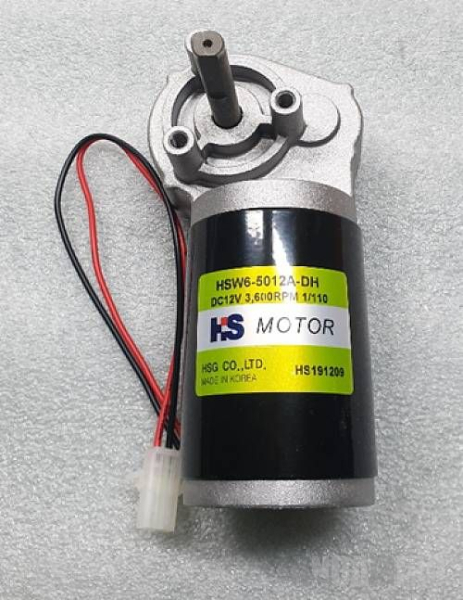

33	MOTOR HSW6-5012A-110D _DC12V_33RPM_DCUT	MOTOR MZZZ0MOT118	Part picture
34	SPEAKER MID 4.5"+TW1/2" 8Ω W-C-100 F BK	SPEAKER MZZZ0SPE021	Part picture

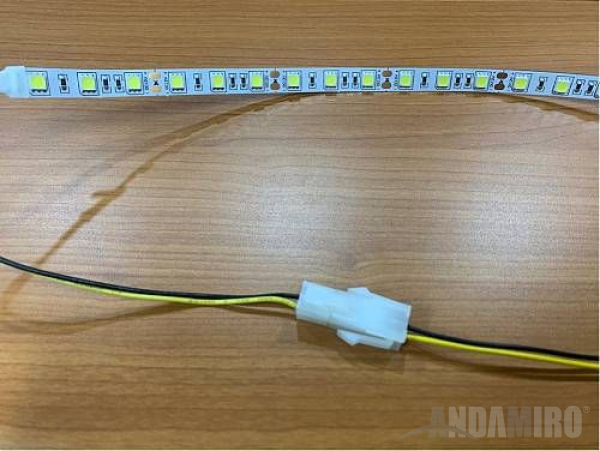

35	FLEX_5050_WHITE_350_NWP_LR_21 21알	FLEX_5050_WHITE_350_NWP_LR_21 MELE0LED028	Part picture
36	LED BAR 12V ASS'Y 710MM	LED BAR 12V ASS'Y AZZZ0PCB165	Part picture

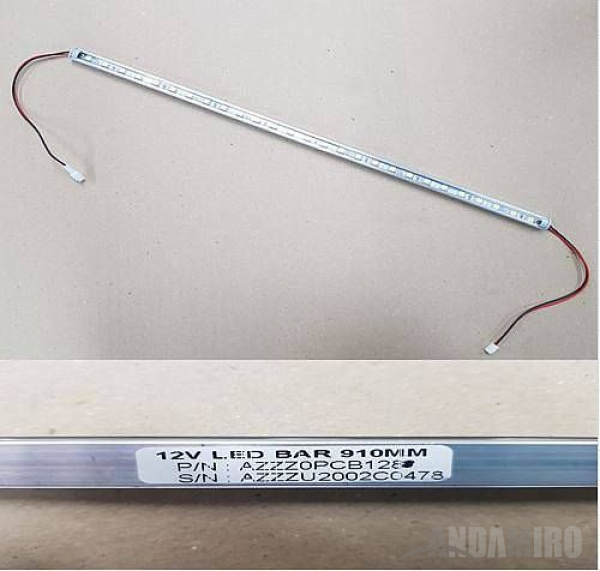

37	LED BAR 12V ASS'Y 910MM	LED BAR 12V ASS'Y AZZZ0PCB128	Part picture
37.1.1	[LED BAR 12V ASS'Y] BUTTON PLATE SIDE ACRYL-R .	[LED BAR 12V ASS'Y] BUTTON PLATE SIDE ACRYL-R MWWE0PRI008	Part picture

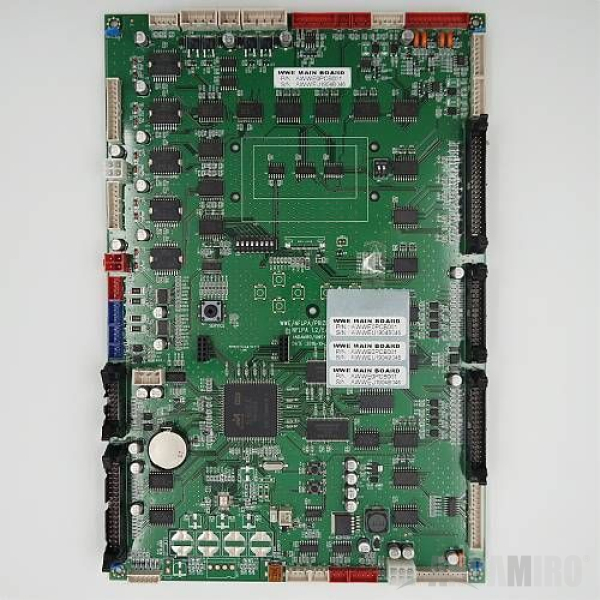

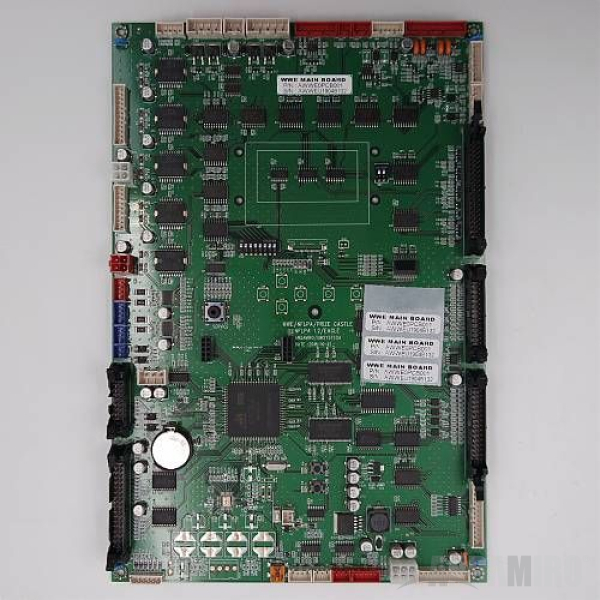

38	MAIN BOARD PCB ASS'Y WWE WITH CPU	MAIN BOARD PCB ASS'Y AWWE0PCB001	Part picture
39	SETUP LCD PCB ASS'Y UNISYSTECH	SETUP LCD PCB ASS'Y AZZZ0PCB113	Part picture
40	BUTTON SWITCH TICKET AM1PB-26SH R12D	BUTTON SWITCH MMUM0BUT002	Part picture
41	PLUG CUSHION RUBBER 공진 [KD-96R-9] 6MM	PLUG CUSHION RUBBER MCIR0RUB001	Part picture
42	LED STICK BAR BRK 12MM 90도	LED STICK BAR BRK MELE0000022	Part picture
43	VOLUME PCB ASS'Y 3CH	VOLUME PCB ASS'Y APUJ0PCB005	Part picture
44	PHOTO INT-1 PCB ASS'Y ANGLE TYPE	PHOTO INT-1 PCB ASS'Y AZZZ0PCB103	Part picture
45	BUTTON SWITCH CWB 401-WHITE 100MM LED	BUTTON SWITCH MZZZ0BUT080	Part picture

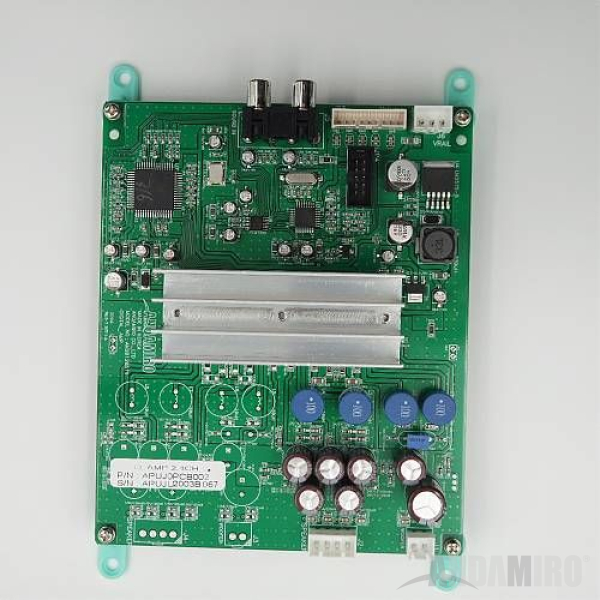

46	DIGITAL AMP PCB ASS'Y 2.1CH	DIGITAL AMP PCB ASS'Y APUJ0PCB002	Part picture

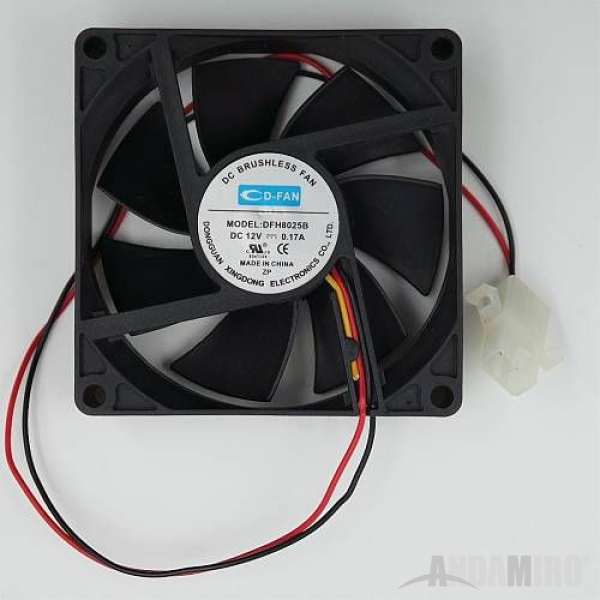

46.1.1	[DIGITAL AMP PCB ASS'Y] DC FAN 80MM 2BALL DFH8025B12	[DIGITAL AMP PCB ASS'Y] DC FAN 80MM 2BALL MZZZ0FAN015	Part picture
47	NOISE FILTER RNS-2010	NOISE FILTER MELE0NOI009	Part picture
48	TERMINAL BLOCK 250V 10P UL_CE	TERMINAL BLOCK MELE0TEB003	Part picture

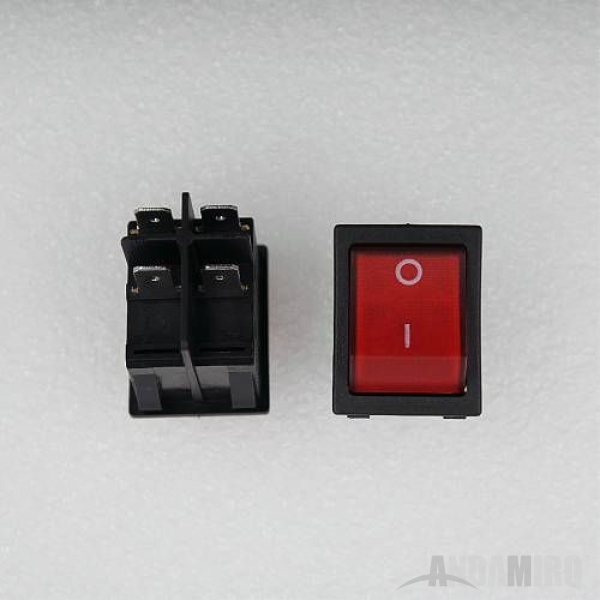

49	ROCKER SWITCH T-125 4P	ROCKER SWITCH MELE0SWI004	Part picture

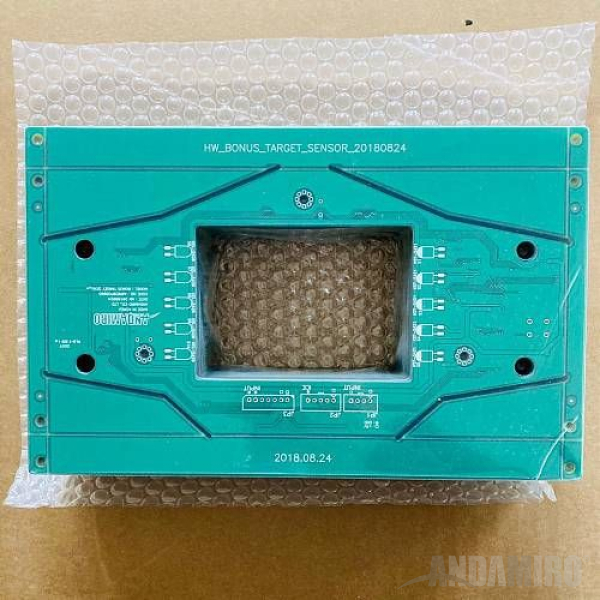

49.1.1	[ROCKER SWITCH] BONUS TARGET SENSOR PCB 20180824	[ROCKER SWITCH] BONUS TARGET SENSOR PCB PPCB0DOU542	Part picture
49.2.1	[ROCKER SWITCH] MAIN BOARD PCB ASS'Y NO CPU	[ROCKER SWITCH] MAIN BOARD PCB ASS'Y AWWE0PCB008	Part picture
49.2.1	[ROCKER SWITCH] RAM_V1 LPDDR3 4GB PC3L-12800 SAMSUNG	[ROCKER SWITCH] RAM_V1 MZZZ0000698	Part picture
49.3	[ROCKER SWITCH] ATX POWER SUPPLY FSP350-50TAC	[ROCKER SWITCH] ATX POWER SUPPLY MELE0SMP149	Part picture
49.4	[ROCKER SWITCH] SSD HP S700 120	[ROCKER SWITCH] SSD MZZZ0MEM025	Part picture

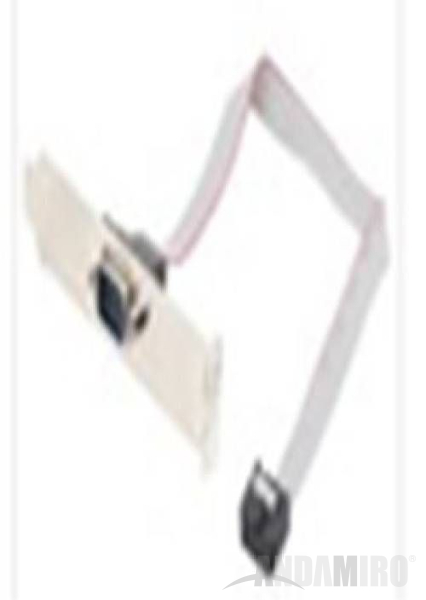

49.4.1	[ROCKER SWITCH] SERIAL 1PORT .	[ROCKER SWITCH] SERIAL 1PORT MZZZ0000786	Part picture
49.5	[ROCKER SWITCH] MAIN BOX .	[ROCKER SWITCH] MAIN BOX AWWE0SYS002	Part picture

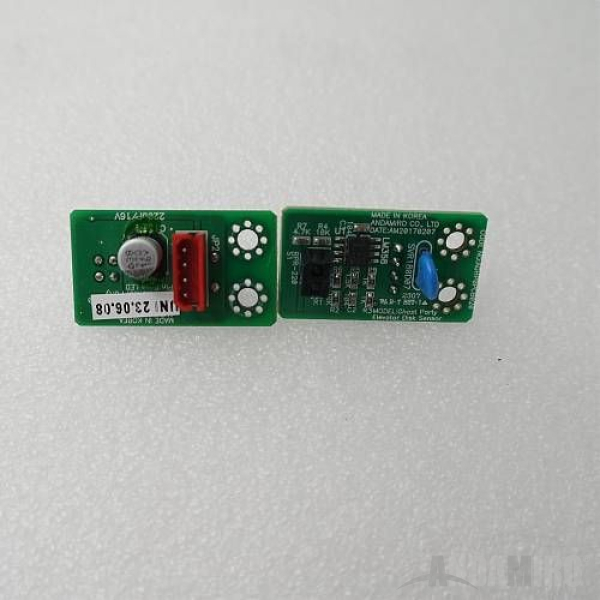

50	ELEVATOR DISK SENSOR PCB ASS'Y GHP_REZ	ELEVATOR DISK SENSOR PCB ASS'Y AGHP0PCB020	Part picture

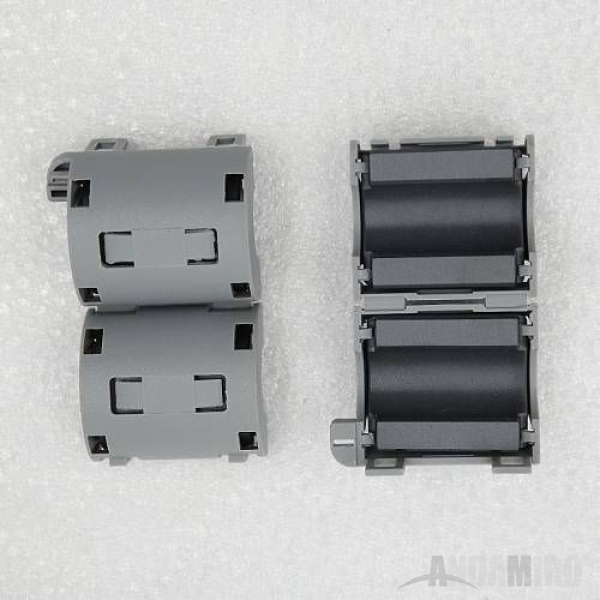

51	FERRITE CORE RU(TU)1335	FERRITE CORE MELE0FER001	Part picture
52	방진고무볼트 001605 20_18_15.5_ M6	방진고무볼트 001605 MZZZ0RUB009	Part picture
53	PUSH BUTTON SWITCH DS-412R ROSH	PUSH BUTTON SWITCH MELE0PUS006	Part picture
54	POWER SMPS LRS 150F_24	POWER SMPS MELE0SMP085	Part picture

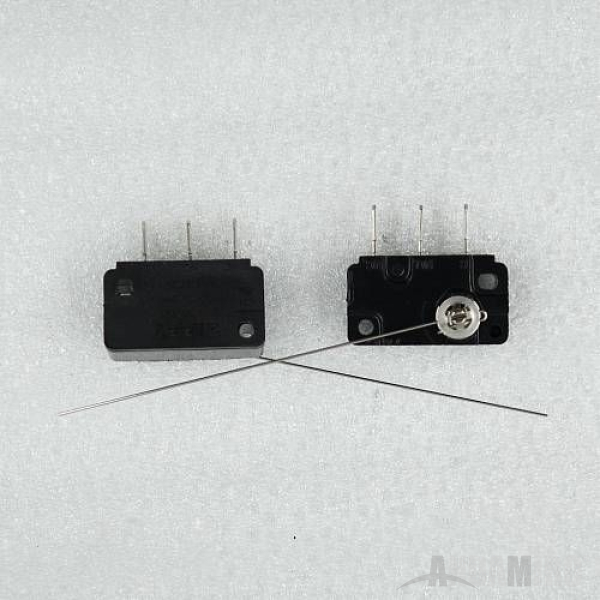

55	MICRO SWITCH CNR-05H-03 ZIPPY-FOR COIN	MICRO SWITCH MELE0MIC002	Part picture

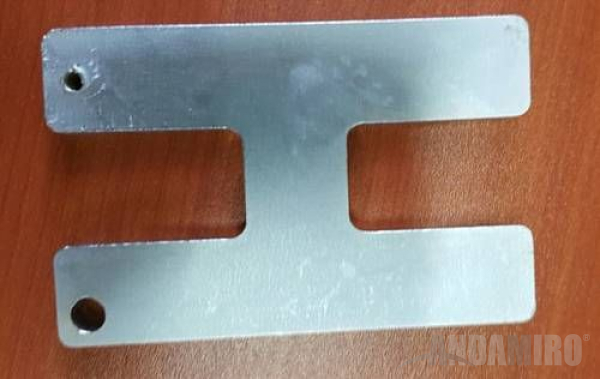

56	CARD HEAVY PUSH BKT .	CARD HEAVY PUSH BKT MSBP0MEP023	Part picture

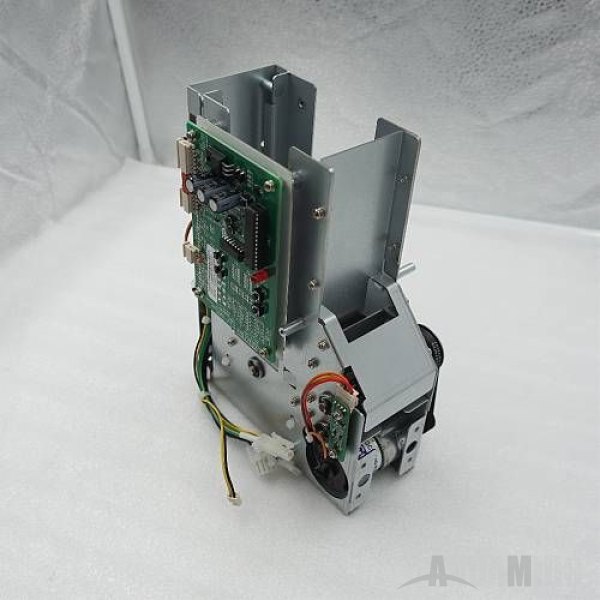

57	A_CARD DISPENSER_COMMON L CODE CHANGE AZZZ0ASS115	A_CARD DISPENSER_COMMON L AZZZ0ASS081	Part picture
57.5.1	[A_CARD DISPENSER_COMMON L] MAIN BOARD GIGA-H510M H	[A_CARD DISPENSER_COMMON L] MAIN BOARD MZZZ0PCB096	Part picture
57.6	[A_CARD DISPENSER_COMMON L] MAIN BOARD GIGA-H510M H	[A_CARD DISPENSER_COMMON L] MAIN BOARD MZZZ0PCB096	Part picture
57.6.1	[A_CARD DISPENSER_COMMON L] VGA CARD GV-N 1030D5-2GL	[A_CARD DISPENSER_COMMON L] VGA CARD MZZZ0PCB097	Part picture
57.7	[A_CARD DISPENSER_COMMON L] VGA CARD GV-N 1030D5-2GL	[A_CARD DISPENSER_COMMON L] VGA CARD MZZZ0PCB097	Part picture

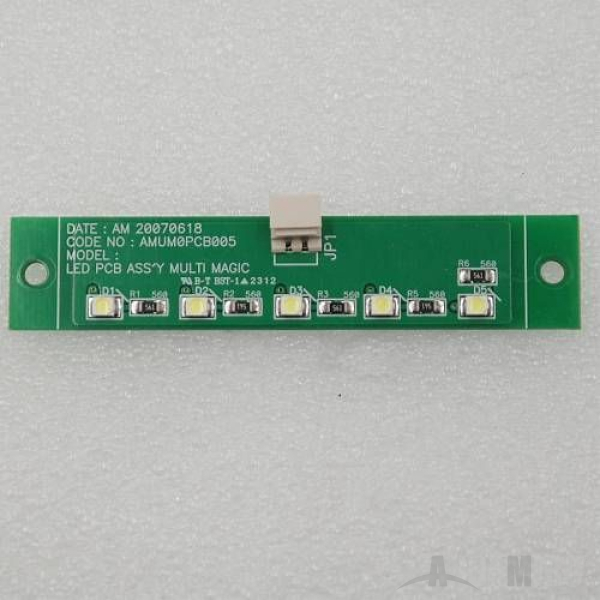

58	LED PCB ASS'Y MULTI MAGIC 070618	LED PCB ASS'Y AMUM0PCB005	Part picture
59	WS2812B IO PCB ASS'Y V3 WWE SUPERSTAR RUMBLE	WS2812B IO PCB ASS'Y V3 AWWE0PCB011	Part picture
60	AC POWER CORD UL 125V_10A_SVT 3/18AWG 1.8M	AC POWER CORD UL MELE0ACP001	Part picture
61	AC POWER CORD 250V 16A KKP-4819R CE 1.8M	AC POWER CORD MELE0ACP008	Part picture
62	COUNTER OA127CL W/2P CONNECTOR_20CM WIRE	COUNTER MZZZ0COU002	Part picture

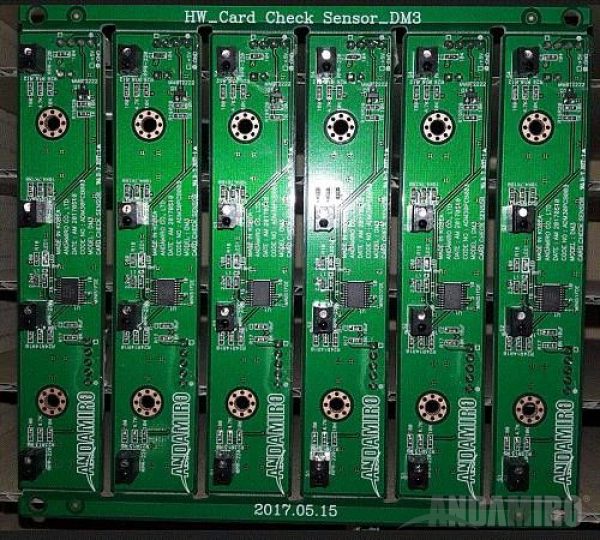

63	CARD CHECK SENSOR PCB ASS'Y DM3	CARD CHECK SENSOR PCB ASS'Y ADM30PCB003	Part picture
64	VOLUME KNOB CAP BLUE	VOLUME KNOB MELE0VOL007	Part picture

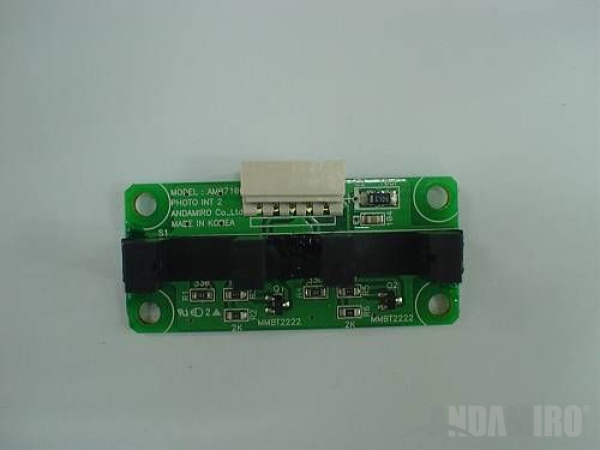

65	PHOTO INT-2 PCB ASS'Y WINNER,WON,CIR공용	PHOTO INT-2 PCB ASS'Y AWIW0PCB009	Part picture
66	POWER SMPS LRS 100-5	POWER SMPS MELE0SMP095	Part picture

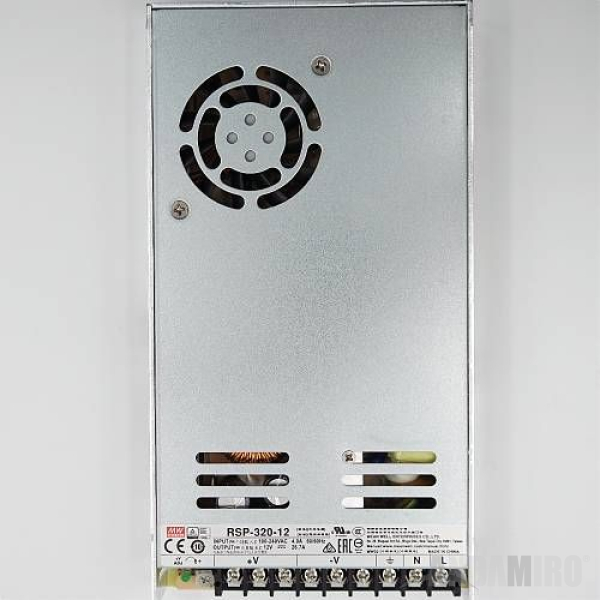

67	POWER SMPS RSP-320-12	POWER SMPS MELE0SMP109	Part picture

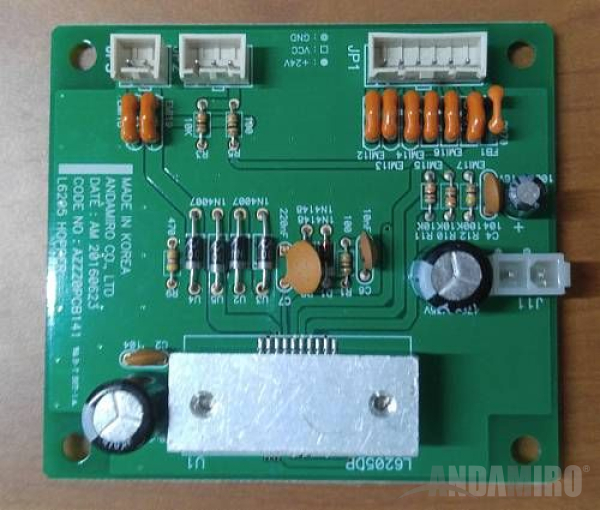

68	L6205 HOPPER PCB ASS'Y 공용	L6205 HOPPER PCB ASS'Y AZZZ0PCB141	Part picture
69	POWER SMPS LRS 150F-5	POWER SMPS MELE0SMP096	Part picture

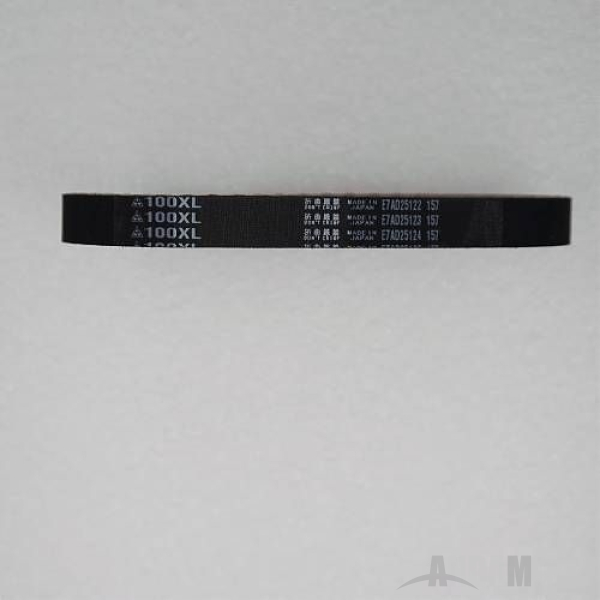

69.1	[POWER SMPS] TIMMING BELT 100XL-037	[POWER SMPS] TIMMING BELT MZZZ0BEL036	Part picture
69.2	[POWER SMPS] CARD DISPENSER FRONT MASK-DM3 CARD DISPENSER 부품	[POWER SMPS] CARD DISPENSER FRONT MASK-DM3 MDM30ACR040	Part picture
69.3	[POWER SMPS] CARDS LIST STICKER .	[POWER SMPS] CARDS LIST STICKER MWWE0SHE022	Part picture
70	BALL ELEVATOR ASS'Y	BALL ELEVATOR ASS'Y AWWE0ASS008	Part picture
71	BILLBOARD ASS'Y	BILLBOARD ASS'Y AWWE0ASS003	Part picture
72	BONUS TARGET ASS'Y	BONUS TARGET ASS'Y AWWE0ASS004	Part picture
73	CONVEYOR ASS'Y	CONVEYOR ASS'Y AWWE0ASS005	Part picture
74	MONITOR ASS'Y	MONITOR ASS'Y AWWE0ASS006	Part picture
75	PIN BASE ASS'Y	PIN BASE ASS'Y AWWE0ASS007	Part picture

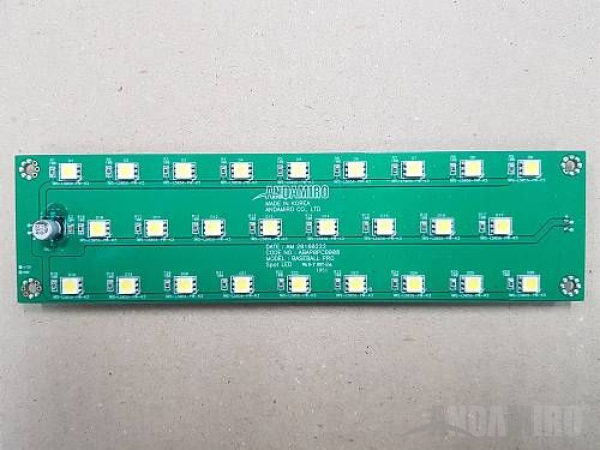

76	SPOT LED PCB ASS'Y WHITE	SPOT LED PCB ASS'Y ABAP0PCB008	Part picture

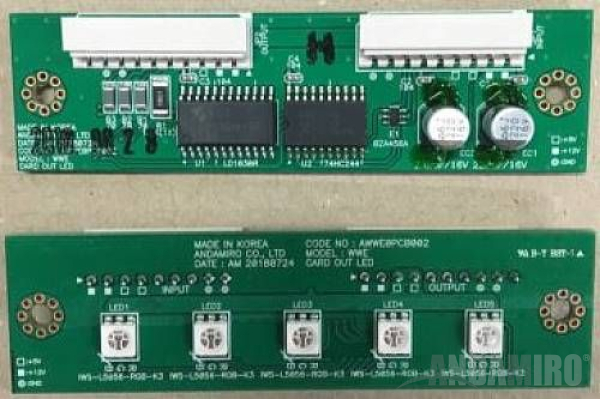

77	CARD OUT LED PCB ASS'Y .	CARD OUT LED PCB ASS'Y AWWE0PCB002	Part picture
77.1	[CARD OUT LED PCB ASS'Y] BILLBOARD FRONT ACRYL	[CARD OUT LED PCB ASS'Y] BILLBOARD FRONT ACRYL AWWE0ACP001	Part picture
77.2	[CARD OUT LED PCB ASS'Y] BILLBOARD TITLE ACRYL	[CARD OUT LED PCB ASS'Y] BILLBOARD TITLE ACRYL AWWE0ACP002	Part picture
77.3	[CARD OUT LED PCB ASS'Y] BILLBOARD TOP LOGO ACRYL	[CARD OUT LED PCB ASS'Y] BILLBOARD TOP LOGO ACRYL AWWE0ACP003	Part picture
77.4	[CARD OUT LED PCB ASS'Y] BONUS TARGET FRONT ACRYL_TYPE_20+22_3H	[CARD OUT LED PCB ASS'Y] BONUS TARGET FRONT ACRYL_TYPE_20+22_3H AWWE0ACP004	Part picture
77.5	[CARD OUT LED PCB ASS'Y] BILLBOARD CHARACTER FOMAX-L	[CARD OUT LED PCB ASS'Y] BILLBOARD CHARACTER FOMAX-L AWWE0ACP005	Part picture
77.6	[CARD OUT LED PCB ASS'Y] BILLBOARD CHARACTER FOMAX-R	[CARD OUT LED PCB ASS'Y] BILLBOARD CHARACTER FOMAX-R AWWE0ACP006	Part picture
77.7	[CARD OUT LED PCB ASS'Y] BUTTON PLATE SIDE ACRYL-L	[CARD OUT LED PCB ASS'Y] BUTTON PLATE SIDE ACRYL-L AWWE0ACP007	Part picture
77.8	[CARD OUT LED PCB ASS'Y] BUTTON PLATE SIDE ACRYL-R	[CARD OUT LED PCB ASS'Y] BUTTON PLATE SIDE ACRYL-R AWWE0ACP008	Part picture
77.9	[CARD OUT LED PCB ASS'Y] BUTTON PLATE MIDDLE ACRYL	[CARD OUT LED PCB ASS'Y] BUTTON PLATE MIDDLE ACRYL AWWE0ACP009	Part picture
77.10	[CARD OUT LED PCB ASS'Y] CARD CONVEYOR COVER ACRYL-L	[CARD OUT LED PCB ASS'Y] CARD CONVEYOR COVER ACRYL-L AWWE0ACP010	Part picture
77.11	[CARD OUT LED PCB ASS'Y] CARD CONVEYOR COVER ACRYL-R	[CARD OUT LED PCB ASS'Y] CARD CONVEYOR COVER ACRYL-R AWWE0ACP011	Part picture
77.12	[CARD OUT LED PCB ASS'Y] CARD DISPENSER COVER ACRYL	[CARD OUT LED PCB ASS'Y] CARD DISPENSER COVER ACRYL AWWE0ACP012	Part picture
77.13	[CARD OUT LED PCB ASS'Y] CARD DISPLAY COVER ACRYL-L	[CARD OUT LED PCB ASS'Y] CARD DISPLAY COVER ACRYL-L AWWE0ACP013	Part picture
77.14	[CARD OUT LED PCB ASS'Y] CARD DISPLAY COVER ACRYL-R	[CARD OUT LED PCB ASS'Y] CARD DISPLAY COVER ACRYL-R AWWE0ACP014	Part picture
77.15	[CARD OUT LED PCB ASS'Y] CONTROL PANEL COVER ACRYL	[CARD OUT LED PCB ASS'Y] CONTROL PANEL COVER ACRYL AWWE0ACP015	Part picture
77.16	[CARD OUT LED PCB ASS'Y] MIDDLE DISPLAY COVER ACRYL	[CARD OUT LED PCB ASS'Y] MIDDLE DISPLAY COVER ACRYL AWWE0ACP016	Part picture
77.17	[CARD OUT LED PCB ASS'Y] PIN BASE ASSY FRONT COVER ACRYL-L	[CARD OUT LED PCB ASS'Y] PIN BASE ASSY FRONT COVER ACRYL-L AWWE0ACP017	Part picture
77.18	[CARD OUT LED PCB ASS'Y] PIN BASE ASSY FRONT COVER ACRYL-R	[CARD OUT LED PCB ASS'Y] PIN BASE ASSY FRONT COVER ACRYL-R AWWE0ACP018	Part picture
77.19	[CARD OUT LED PCB ASS'Y] PIN BASE ASSY SIDE COVER ACRYL-L	[CARD OUT LED PCB ASS'Y] PIN BASE ASSY SIDE COVER ACRYL-L AWWE0ACP019	Part picture
77.20	[CARD OUT LED PCB ASS'Y] PIN BASE ASSY SIDE COVER ACRYL-R	[CARD OUT LED PCB ASS'Y] PIN BASE ASSY SIDE COVER ACRYL-R AWWE0ACP020	Part picture
77.21	[CARD OUT LED PCB ASS'Y] SIDE DISPLAY LOWER ACRYL-L	[CARD OUT LED PCB ASS'Y] SIDE DISPLAY LOWER ACRYL-L AWWE0ACP021	Part picture
77.22	[CARD OUT LED PCB ASS'Y] SIDE DISPLAY LOWER ACRYL-R	[CARD OUT LED PCB ASS'Y] SIDE DISPLAY LOWER ACRYL-R AWWE0ACP022	Part picture
77.23	[CARD OUT LED PCB ASS'Y] SPEAKER COVER ACRYL	[CARD OUT LED PCB ASS'Y] SPEAKER COVER ACRYL AWWE0ACP023	Part picture
77.24	[CARD OUT LED PCB ASS'Y] BALL ELEVATOR DECO-L	[CARD OUT LED PCB ASS'Y] BALL ELEVATOR DECO-L AWWE0ACP024	Part picture
77.25	[CARD OUT LED PCB ASS'Y] BALL ELEVATOR DECO-R	[CARD OUT LED PCB ASS'Y] BALL ELEVATOR DECO-R AWWE0ACP025	Part picture
77.26	[CARD OUT LED PCB ASS'Y] BALL ELEVATOR TOP SIDE DECO ACRYL-L	[CARD OUT LED PCB ASS'Y] BALL ELEVATOR TOP SIDE DECO ACRYL-L AWWE0ACP026	Part picture
77.27	[CARD OUT LED PCB ASS'Y] BALL ELEVATOR TOP SIDE DECO ACRYL-R	[CARD OUT LED PCB ASS'Y] BALL ELEVATOR TOP SIDE DECO ACRYL-R AWWE0ACP027	Part picture
77.28	[CARD OUT LED PCB ASS'Y] PIN BASE BOTTOM ACRYL	[CARD OUT LED PCB ASS'Y] PIN BASE BOTTOM ACRYL AWWE0ACP028	Part picture
77.29	[CARD OUT LED PCB ASS'Y] PIN BASE CAM UPPER ACRYL	[CARD OUT LED PCB ASS'Y] PIN BASE CAM UPPER ACRYL AWWE0ACP029	Part picture
77.30	[CARD OUT LED PCB ASS'Y] PIN BASE CHECKER UPPER COVER ACRYL	[CARD OUT LED PCB ASS'Y] PIN BASE CHECKER UPPER COVER ACRYL AWWE0ACP030	Part picture
77.31	[CARD OUT LED PCB ASS'Y] PIN BASE SIDE ACRYL-L	[CARD OUT LED PCB ASS'Y] PIN BASE SIDE ACRYL-L AWWE0ACP031	Part picture
77.32	[CARD OUT LED PCB ASS'Y] PIN BASE SIDE ACRYL-R	[CARD OUT LED PCB ASS'Y] PIN BASE SIDE ACRYL-R AWWE0ACP032	Part picture
77.33	[CARD OUT LED PCB ASS'Y] BUTTON COVER ACRYL-L	[CARD OUT LED PCB ASS'Y] BUTTON COVER ACRYL-L AWWE0ACP033	Part picture
77.34	[CARD OUT LED PCB ASS'Y] BUTTON COVER ACRYL-R	[CARD OUT LED PCB ASS'Y] BUTTON COVER ACRYL-R AWWE0ACP034	Part picture
77.35	[CARD OUT LED PCB ASS'Y] CARD DISPENSER FRONT COVER ACRYL-L	[CARD OUT LED PCB ASS'Y] CARD DISPENSER FRONT COVER ACRYL-L AWWE0ACP035	Part picture
77.36	[CARD OUT LED PCB ASS'Y] CARD DISPENSER FRONT COVER ACRYL-R	[CARD OUT LED PCB ASS'Y] CARD DISPENSER FRONT COVER ACRYL-R AWWE0ACP036	Part picture
77.37	[CARD OUT LED PCB ASS'Y] BONUS CARD ACRYL	[CARD OUT LED PCB ASS'Y] BONUS CARD ACRYL AWWE0ACP037	Part picture
77.38	[CARD OUT LED PCB ASS'Y] BONUS 1000 FND COVER SHEET .	[CARD OUT LED PCB ASS'Y] BONUS 1000 FND COVER SHEET MWWE0SHE001	Part picture
77.39	[CARD OUT LED PCB ASS'Y] BONUS 2000 FND COVER SHEET .	[CARD OUT LED PCB ASS'Y] BONUS 2000 FND COVER SHEET MWWE0SHE002	Part picture
77.40	[CARD OUT LED PCB ASS'Y] BUTTON SHEET .	[CARD OUT LED PCB ASS'Y] BUTTON SHEET MWWE0SHE003	Part picture
77.41	[CARD OUT LED PCB ASS'Y] FRONT WINDOW 3 BALL MULTI BALL SHEET .	[CARD OUT LED PCB ASS'Y] FRONT WINDOW 3 BALL MULTI BALL SHEET MWWE0SHE004	Part picture
77.42	[CARD OUT LED PCB ASS'Y] FRONT WINDOW 3 BALL TARGET SHEET .	[CARD OUT LED PCB ASS'Y] FRONT WINDOW 3 BALL TARGET SHEET MWWE0SHE005	Part picture
77.43	[CARD OUT LED PCB ASS'Y] FRONT WINDOW 5 BALL TARGET SHEET .	[CARD OUT LED PCB ASS'Y] FRONT WINDOW 5 BALL TARGET SHEET MWWE0SHE006	Part picture
77.44	[CARD OUT LED PCB ASS'Y] FRONT WINDOW 8 SWIPE CARD SHEET .	[CARD OUT LED PCB ASS'Y] FRONT WINDOW 8 SWIPE CARD SHEET MWWE0SHE007	Part picture
77.45	[CARD OUT LED PCB ASS'Y] FRONT WINDOW 10 SWIPE CARD SHEET .	[CARD OUT LED PCB ASS'Y] FRONT WINDOW 10 SWIPE CARD SHEET MWWE0SHE008	Part picture
77.46	[CARD OUT LED PCB ASS'Y] RONT WINDOW 12 SWIPE CARD SHEET .	[CARD OUT LED PCB ASS'Y] RONT WINDOW 12 SWIPE CARD SHEET MWWE0SHE009	Part picture
77.47	[CARD OUT LED PCB ASS'Y] MONITOR 3 TARGET SHEET .	[CARD OUT LED PCB ASS'Y] MONITOR 3 TARGET SHEET MWWE0SHE010	Part picture
77.48	[CARD OUT LED PCB ASS'Y] MONITOR 5 TARGET SHEET .	[CARD OUT LED PCB ASS'Y] MONITOR 5 TARGET SHEET MWWE0SHE011	Part picture
77.49	[CARD OUT LED PCB ASS'Y] SIDE L SHEET .	[CARD OUT LED PCB ASS'Y] SIDE L SHEET MWWE0SHE012	Part picture
77.50	[CARD OUT LED PCB ASS'Y] SIDE R SHEET .	[CARD OUT LED PCB ASS'Y] SIDE R SHEET MWWE0SHE013	Part picture
77.51	[CARD OUT LED PCB ASS'Y] FRONT SHEETS .	[CARD OUT LED PCB ASS'Y] FRONT SHEETS MWWE0SHE014	Part picture
77.52	[CARD OUT LED PCB ASS'Y] FRONT WINDOW 4 BALL TARGET SHEET .	[CARD OUT LED PCB ASS'Y] FRONT WINDOW 4 BALL TARGET SHEET MWWE0SHE019	Part picture
77.53	[CARD OUT LED PCB ASS'Y] FRONT WINDOW 6 BALL TARGET SHEET .	[CARD OUT LED PCB ASS'Y] FRONT WINDOW 6 BALL TARGET SHEET MWWE0SHE017	Part picture
77.54	[CARD OUT LED PCB ASS'Y] FRONT WINDOW 7 BALLS TAGET SHEET .	[CARD OUT LED PCB ASS'Y] FRONT WINDOW 7 BALLS TAGET SHEET MWWE0SHE015	Part picture
77.55	[CARD OUT LED PCB ASS'Y] MONITOR 4 TARGET SHEET .	[CARD OUT LED PCB ASS'Y] MONITOR 4 TARGET SHEET MWWE0SHE020	Part picture
77.56	[CARD OUT LED PCB ASS'Y] MONITOR 6 TARGET SHEET .	[CARD OUT LED PCB ASS'Y] MONITOR 6 TARGET SHEET MWWE0SHE018	Part picture
77.57	[CARD OUT LED PCB ASS'Y] MONITOR 7 TARGET SHEET .	[CARD OUT LED PCB ASS'Y] MONITOR 7 TARGET SHEET MWWE0SHE016	Part picture
77.58	[CARD OUT LED PCB ASS'Y] BUTTON PLATE MIDDLE ACRYL SHEET+ACRYL	[CARD OUT LED PCB ASS'Y] BUTTON PLATE MIDDLE ACRYL AWWE0ACP110	Part picture
77.59	[CARD OUT LED PCB ASS'Y] CARD DISPLAY COVER ACRYL-L 백라이트 용지	[CARD OUT LED PCB ASS'Y] CARD DISPLAY COVER ACRYL-L AWWE0ACP111	Part picture
77.60	[CARD OUT LED PCB ASS'Y] CARD DISPLAY COVER ACRYL-R 백라이트 용지	[CARD OUT LED PCB ASS'Y] CARD DISPLAY COVER ACRYL-R AWWE0ACP112	Part picture
77.61	[CARD OUT LED PCB ASS'Y] BONUS CARD ACRYL SHEET+ACRYL	[CARD OUT LED PCB ASS'Y] BONUS CARD ACRYL AWWE0ACP113	Part picture
77.62	[CARD OUT LED PCB ASS'Y] BUTTON PLATE MIDDLE SHEET .	[CARD OUT LED PCB ASS'Y] BUTTON PLATE MIDDLE SHEET MWWE0SHE021	Part picture
77.63	[CARD OUT LED PCB ASS'Y] BILLBOARD SPOT LED PCB ACRYL POINT ACRYL-3.0T (CLEAR)	[CARD OUT LED PCB ASS'Y] BILLBOARD SPOT LED PCB ACRYL MWWE0ACR002	Part picture
77.64	[CARD OUT LED PCB ASS'Y] BONUS FND FRONT COVER ACRYL ACRYL-2.7T (CLEAR)	[CARD OUT LED PCB ASS'Y] BONUS FND FRONT COVER ACRYL MWWE0ACR008	Part picture
77.65	[CARD OUT LED PCB ASS'Y] BONUS FND LED FIX ACRYL PET-1.0T (CLEAR)	[CARD OUT LED PCB ASS'Y] BONUS FND LED FIX ACRYL MWWE0ACR009	Part picture
77.66	[CARD OUT LED PCB ASS'Y] BONUS FND REAR COVER ACRYL PET-1.0T (CLEAR)	[CARD OUT LED PCB ASS'Y] BONUS FND REAR COVER ACRYL MWWE0ACR010	Part picture
77.67	[CARD OUT LED PCB ASS'Y] BUTTON PLATE FLEXIBLE LED COVER ACRYL PET-1.0T (CLEAR)	[CARD OUT LED PCB ASS'Y] BUTTON PLATE FLEXIBLE LED COVER ACRYL MWWE0ACR013	Part picture
77.68	[CARD OUT LED PCB ASS'Y] BUTTON PLATE FRONT ACRYL ACRYL-10T (백색 스리)	[CARD OUT LED PCB ASS'Y] BUTTON PLATE FRONT ACRYL MWWE0ACR014	Part picture
77.69	[CARD OUT LED PCB ASS'Y] CABINET BOTTOM LED FIX ACRYL PET-1.0T (CLEAR)	[CARD OUT LED PCB ASS'Y] CABINET BOTTOM LED FIX ACRYL MWWE0ACR016	Part picture
77.70	[CARD OUT LED PCB ASS'Y] CARD OUT LED PCB COVER ACRYL PET-1.0T (CLEAR)	[CARD OUT LED PCB ASS'Y] CARD OUT LED PCB COVER ACRYL MWWE0ACR021	Part picture
77.71	[CARD OUT LED PCB ASS'Y] MIDDLE PLATE FRONT LED PCB COVER ACRYL POINT ACRYL-3.0T (CLEAR)	[CARD OUT LED PCB ASS'Y] MIDDLE PLATE FRONT LED PCB COVER ACRYL MWWE0ACR024	Part picture
77.72	[CARD OUT LED PCB ASS'Y] PIN BASE MIDDLE CUSHION ACRYL PC-2.0T (CLEAR)	[CARD OUT LED PCB ASS'Y] PIN BASE MIDDLE CUSHION ACRYL MWWE0ACR029	Part picture
77.73	[CARD OUT LED PCB ASS'Y] SPEAKER LED PCB COVER ACRYL PET-1.0T (CLEAR)	[CARD OUT LED PCB ASS'Y] SPEAKER LED PCB COVER ACRYL MWWE0ACR035	Part picture
77.74	[CARD OUT LED PCB ASS'Y] CARD OUT DISPLAY ACRYL ACRYL-8T (CLEAR)	[CARD OUT LED PCB ASS'Y] CARD OUT DISPLAY ACRYL MWWE0ACR036	Part picture
77.75	[CARD OUT LED PCB ASS'Y] MONITOR BEZEL ACRYL ACRYL-4.5T (BLACK)	[CARD OUT LED PCB ASS'Y] MONITOR BEZEL ACRYL MWWE0ACR037	Part picture
77.76	[CARD OUT LED PCB ASS'Y] SIDE DISPLAY LED COVER ACRYL ACRYL-3.0T (백색 스리)	[CARD OUT LED PCB ASS'Y] SIDE DISPLAY LED COVER ACRYL MWWE0ACR038	Part picture
77.77	[CARD OUT LED PCB ASS'Y] BALL ELEVATOR BRAKE GUIDE ACRYL ACRYL-8.0T (CLEAR)	[CARD OUT LED PCB ASS'Y] BALL ELEVATOR BRAKE GUIDE ACRYL MWWE0ACR039	Part picture
77.78	[CARD OUT LED PCB ASS'Y] BALL ELEVATOR CHUTE SIDE ACRYL-L ACRYL-5.0T (CLEAR)	[CARD OUT LED PCB ASS'Y] BALL ELEVATOR CHUTE SIDE ACRYL-L MWWE0ACR040	Part picture
77.79	[CARD OUT LED PCB ASS'Y] BALL ELEVATOR CHUTE SIDE ACRYL-R ACRYL-5.0T (CLEAR)	[CARD OUT LED PCB ASS'Y] BALL ELEVATOR CHUTE SIDE ACRYL-R MWWE0ACR041	Part picture
77.80	[CARD OUT LED PCB ASS'Y] BALL ELEVATOR HOUSING COVER ACRYL ACRYL-2.7T (CLEAR)	[CARD OUT LED PCB ASS'Y] BALL ELEVATOR HOUSING COVER ACRYL MWWE0ACR042	Part picture
77.81	[CARD OUT LED PCB ASS'Y] BALL ELEVATOR HOUSING INNER ACRYL-L PET-2.0T (CLEAR)	[CARD OUT LED PCB ASS'Y] BALL ELEVATOR HOUSING INNER ACRYL-L MWWE0ACR043	Part picture
77.82	[CARD OUT LED PCB ASS'Y] BALL ELEVATOR HOUSING INNER ACRYL-R PET-2.0T (CLEAR)	[CARD OUT LED PCB ASS'Y] BALL ELEVATOR HOUSING INNER ACRYL-R MWWE0ACR044	Part picture
77.83	[CARD OUT LED PCB ASS'Y] BALL ELEVATOR MOVEMENT COVER ACRYL-L PC-5.0T (CLEAR) & 대칭품	[CARD OUT LED PCB ASS'Y] BALL ELEVATOR MOVEMENT COVER ACRYL-L MWWE0ACR045	Part picture
77.84	[CARD OUT LED PCB ASS'Y] BALL ELEVATOR MOVEMENT COVER ACRYL-R PC-5.0T (CLEAR) & 대칭품	[CARD OUT LED PCB ASS'Y] BALL ELEVATOR MOVEMENT COVER ACRYL-R MWWE0ACR046	Part picture
77.85	[CARD OUT LED PCB ASS'Y] BALL ELEVATOR MOVEMENT SPACER ACRYL ACRYL-8.0T (CLEAR)	[CARD OUT LED PCB ASS'Y] BALL ELEVATOR MOVEMENT SPACER ACRYL MWWE0ACR047	Part picture
77.86	[CARD OUT LED PCB ASS'Y] BALL ELEVATOR RAIL SIDE ACRYL PC-5.0T (CLEAR)	[CARD OUT LED PCB ASS'Y] BALL ELEVATOR RAIL SIDE ACRYL MWWE0ACR048	Part picture
77.87	[CARD OUT LED PCB ASS'Y] PIN BASE BALL CUSHION ACRYL PC-2.0T (CLEAR)	[CARD OUT LED PCB ASS'Y] PIN BASE BALL CUSHION ACRYL MWWE0ACR053	Part picture
77.88	[CARD OUT LED PCB ASS'Y] PIN CHECKER BONUS ACRYL-L PATTERN POINT ACRYL-10.0T (CLEAR)	[CARD OUT LED PCB ASS'Y] PIN CHECKER BONUS ACRYL-L MWWE0ACR059	Part picture
77.89	[CARD OUT LED PCB ASS'Y] PIN CHECKER BONUS ACRYL-R PATTERN POINT ACRYL-10.0T (CLEAR)	[CARD OUT LED PCB ASS'Y] PIN CHECKER BONUS ACRYL-R MWWE0ACR060	Part picture
77.90	[CARD OUT LED PCB ASS'Y] PIN CHECKER MIDDLE INNER ACRYL PATTERN POINT ACRYL-10.0T (CLEAR)	[CARD OUT LED PCB ASS'Y] PIN CHECKER MIDDLE INNER ACRYL MWWE0ACR061	Part picture
77.91	[CARD OUT LED PCB ASS'Y] PIN CHECKER MIDDLE OUTER ACRYL PATTERN POINT ACRYL-10.0T (CLEAR)	[CARD OUT LED PCB ASS'Y] PIN CHECKER MIDDLE OUTER ACRYL MWWE0ACR062	Part picture
77.92	[CARD OUT LED PCB ASS'Y] PIN CHECKER SIDE ACRYL-L PATTERN POINT ACRYL-10.0T (CLEAR)	[CARD OUT LED PCB ASS'Y] PIN CHECKER SIDE ACRYL-L MWWE0ACR063	Part picture
77.93	[CARD OUT LED PCB ASS'Y] PIN CHECKER SIDE ACRYL-R PATTERN POINT ACRYL-10.0T (CLEAR)	[CARD OUT LED PCB ASS'Y] PIN CHECKER SIDE ACRYL-R MWWE0ACR064	Part picture
77.94	[CARD OUT LED PCB ASS'Y] BALL ELEVATOR CHUTE SIDE DECO ACRYL-L .	[CARD OUT LED PCB ASS'Y] BALL ELEVATOR CHUTE SIDE DECO ACRYL-L AWWE0ACP114	Part picture
77.95	[CARD OUT LED PCB ASS'Y] BALL ELEVATOR CHUTE SIDE DECO ACRYL-R .	[CARD OUT LED PCB ASS'Y] BALL ELEVATOR CHUTE SIDE DECO ACRYL-R AWWE0ACP115	Part picture
77.96	[CARD OUT LED PCB ASS'Y] BONUS TARGET FRONT ACRYL_TYPE_UK .	[CARD OUT LED PCB ASS'Y] BONUS TARGET FRONT ACRYL_TYPE_UK AWWE0ACP116	Part picture
77.97	[CARD OUT LED PCB ASS'Y] PIN BASE SIDE FENCE ACRYL-L PC-2.0T (CLEAR)	[CARD OUT LED PCB ASS'Y] PIN BASE SIDE FENCE ACRYL-L MWWE0ACR030	Part picture
77.98	[CARD OUT LED PCB ASS'Y] PIN BASE SIDE FENCE ACRYL-R PC-2.0T (CLEAR)	[CARD OUT LED PCB ASS'Y] PIN BASE SIDE FENCE ACRYL-R MWWE0ACR031	Part picture

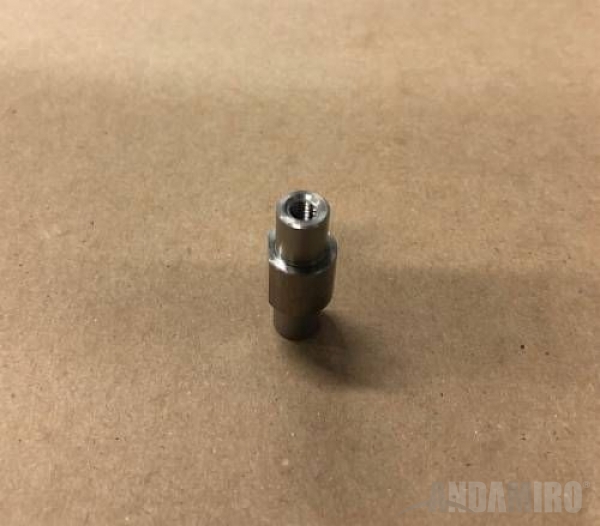

77.99	[CARD OUT LED PCB ASS'Y] ELEVATOR SPACER SHAFT SM45C	[CARD OUT LED PCB ASS'Y] ELEVATOR SPACER SHAFT MGHP0PRO036	Part picture
77.100	[CARD OUT LED PCB ASS'Y] TIMMING BELT TENSION GUIDE BKT .	[CARD OUT LED PCB ASS'Y] TIMMING BELT TENSION GUIDE BKT MSBP0MEP153	Part picture
78	WEB ACR ACP SHEET PART WWE	WEB ACR ACP SHEET PART AWWE0PAT004	Part picture
78.1	[WEB ACR ACP SHEET PART] CARD OUT LED PCB PART	[WEB ACR ACP SHEET PART] CARD OUT LED PCB PART AWWE0PAR011	Part picture
79	CARD ASS'Y_RFID_WWE 2 150EA 1BOX	CARD ASS'Y_RFID_WWE 2 AWWE0RFC005	Part picture
79.1	[CARD ASS'Y_RFID_WWE 2] CARD WINDOW DECAL SHEET .	[CARD ASS'Y_RFID_WWE 2] CARD WINDOW DECAL SHEET MWWE0SHE023	Part picture
79.2	[CARD ASS'Y_RFID_WWE 2] CARD CONVEYOR PRO PART 9종 .	[CARD ASS'Y_RFID_WWE 2] CARD CONVEYOR PRO PART 9종 ADM30PAR010	Part picture
