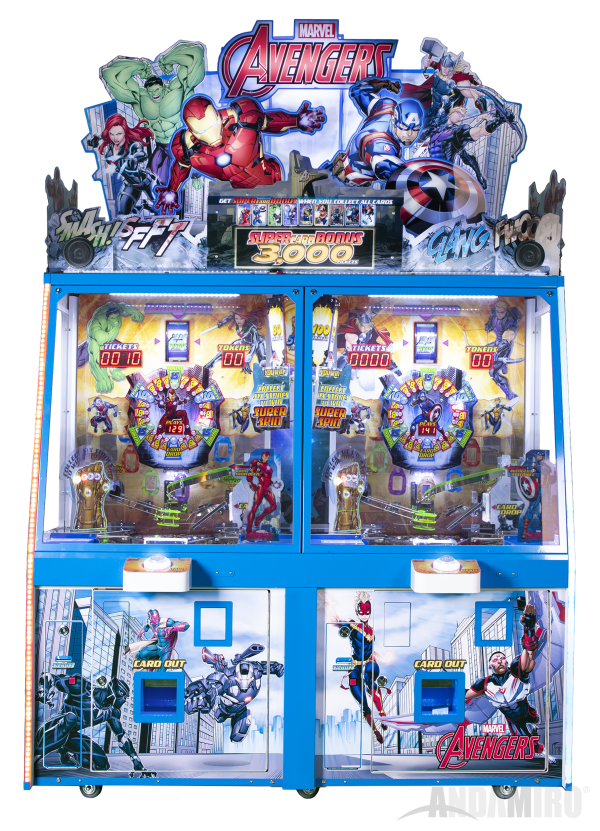

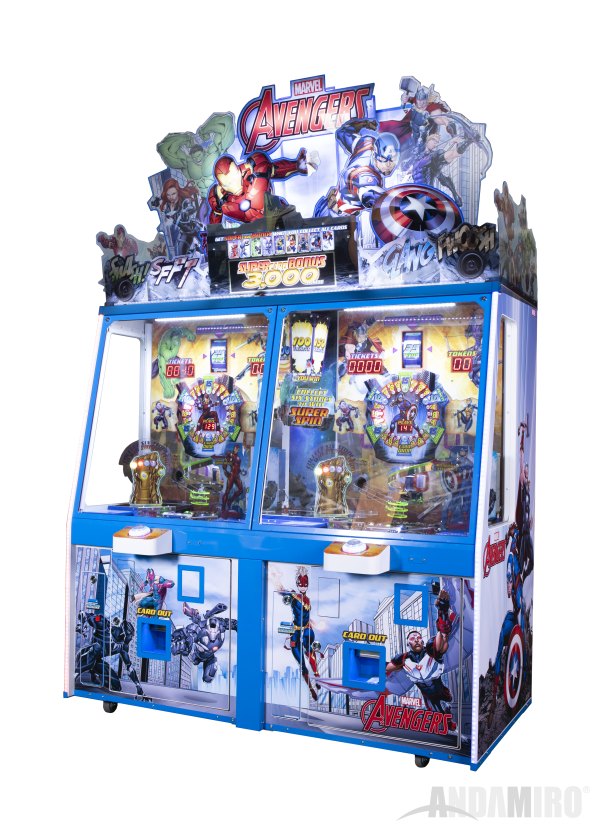

AVENGERS (Two-Player) Available in Card and Non Card Versions!

  • 트위터로 보내기
  • 페이스북으로 보내기
  • 구글플러스로 보내기
Short url COPY http://www.andamiro.com/games/Avengers
Tags Ticket
Dimensions 1,793mm x 1,027mm x 2,712mm
71" x 40" x 107"
Packing Dimensions 1,150mm x 1,900mm x 2,230mm
45" x 75" x 88"
Product Weight 390 kg / 860 lbs
Packing Weight 440 kg / 970 lbs
Power 500W
INQUIRY
PARTS INQUIRY

SUPPORT

  • Leaflets (1)

  • Manuals (1)

  • Document (1)

  • Trouble shooting
    Video List (12)

FEATURES









Andamiro’s First Disney-Licensed Product – And First Economically Priced Pusher In A Single Cabinet!



Andamiro’s Marvel Avengers coin pusher is now available in a one-player model in two versions:

one that operates with a collectible card series featuring nine Avengers, and another that plays without cards.

The one-player models, unveiled in October 2020, follow the original two-player games launched in July 2020.

Both card and non-card versions are ticket-redemption games. Avengers is a feature-rich,

rapid-fire coin pusher inspired by the Infinity Stones storyline in the “Avengers” movies by Marvel Studios.

Players fire tokens at a moving target wheel to win tickets and other rewards, and to populate the pusher playfield.

The game’s main objective is to “push” the Infinity Stones, which also reside on the playfield, off the ledge.

A Bonus Spin game is enabled when one stone is dropped;

the Super Bonus game turns when all six Infinity Stones are collected. Two player stations.



©2020 MARVEL Studios.

GALLERY

Sorry, this is not available at the moment.

PARTS


동기화 작업중입니다.
페이지를 이동하거나 닫으면 오류가 발생할 수 있습니다.

Total 337Parts

No. Part name Part picture Code Info Part picture Part Add
1

TILT

.

TILT

MWIC0PAR100

Part picture
2

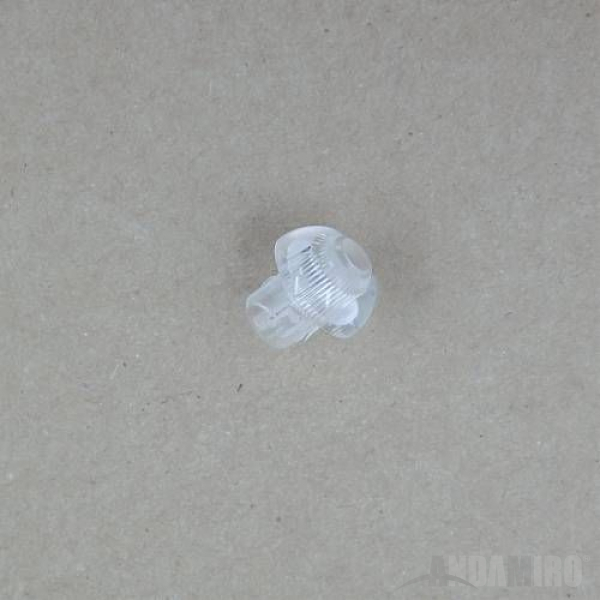

LED CAP

10MM 투명

LED CAP

MWOL0PLA002

Part picture
3

LED CAP

Φ20_투명

LED CAP

MZZZ0PLA037

Part picture
3.1

[LED CAP] BEARING

626ZZ

[LED CAP] BEARING

MZZZ0BEA087

Part picture
3.2

[LED CAP] BEARING

626ZZ

[LED CAP] BEARING

MZZZ0BEA087

Part picture
4

BEARING

626ZZ

BEARING

MZZZ0BEA087

Part picture
4.2.1

[BEARING] BEARING

F686ZZ

[BEARING] BEARING

MZZZ0BEA094

Part picture

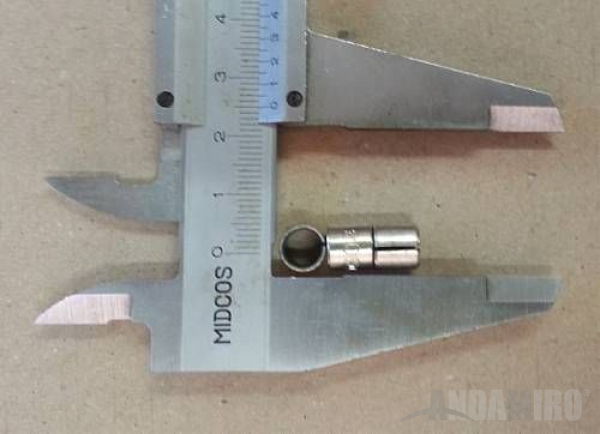

4.2.2

[BEARING] DU BUSH

0608DU

[BEARING] DU BUSH

MZZZ0BEA096

Part picture

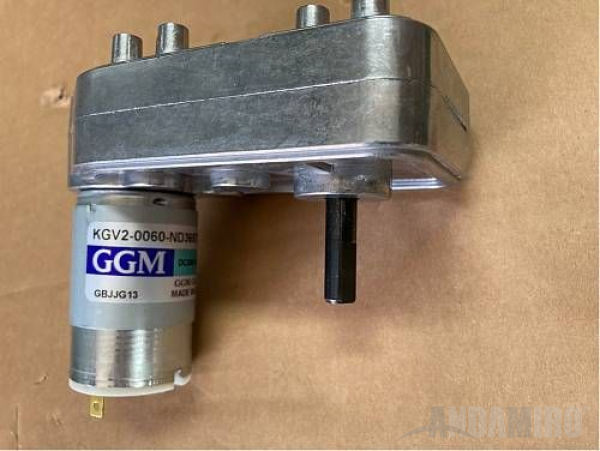

4.2.3

[BEARING] MOTOR

KGV2-0060-ND3657U2_R-TYPE

[BEARING] MOTOR

MZZZ0MOT168

Part picture

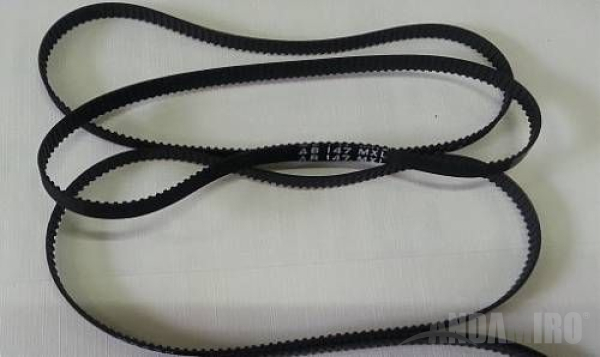

4.2.4

[BEARING] TIMMING BELT

147MXL,W4.8 RUBBER

[BEARING] TIMMING BELT

MZZZ0BEL019

Part picture
5

BUTTON LED HOUSING

BUTTON LED HOUSING

MZZZ0PLA038

Part picture
6

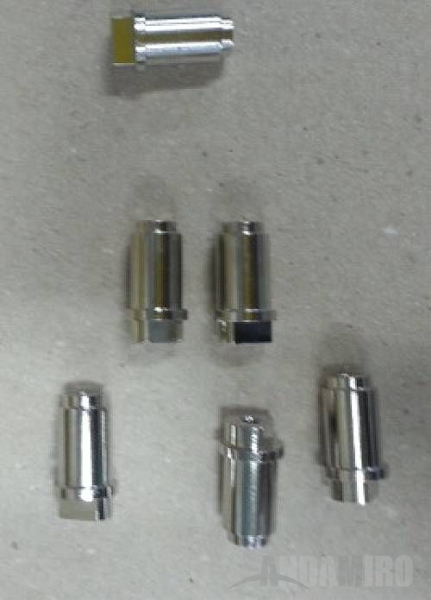

TARGET PIN

.

TARGET PIN

MSBP0PRO016

Part picture
7

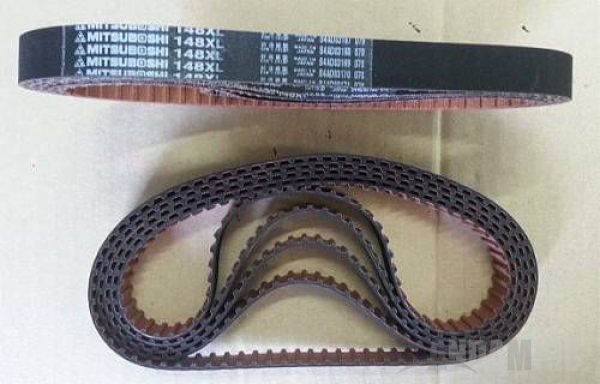

TIMMING BELT

148XL,W12.7MM RUBBER

TIMMING BELT

MSAW0ZZZ004

Part picture
7.2.1

[TIMMING BELT] BEARING

F689ZZ

[TIMMING BELT] BEARING

MZZZ0BEA068

Part picture

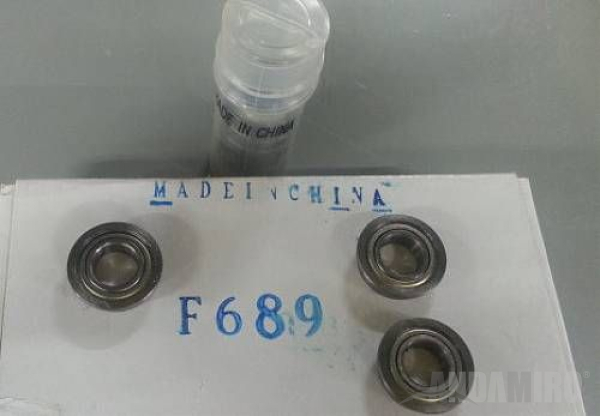

8

BEARING

F689ZZ

BEARING

MZZZ0BEA068

Part picture
8.2.1

[BEARING] MOTOR

KGC-040-3429C

[BEARING] MOTOR

MZZZ0MOT089

Part picture
9

MICRO SWITCH

GSMV16_31A1

MICRO SWITCH

MELE0MIC022

Part picture

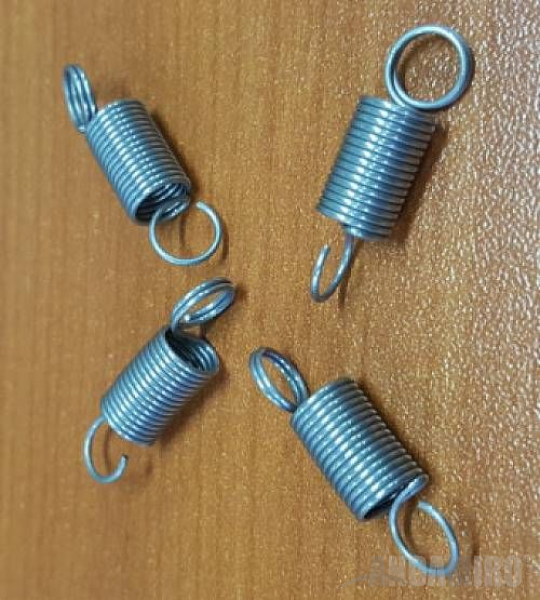

9.1.1

[MICRO SWITCH] ELEVATOR SPRING

0.6MM FRONT

[MICRO SWITCH] ELEVATOR SPRING

MSBP0SPR001

Part picture
9.2.1

[MICRO SWITCH] ELEVATOR SPRING

0.6MM FRONT

[MICRO SWITCH] ELEVATOR SPRING

MSBP0SPR001

Part picture

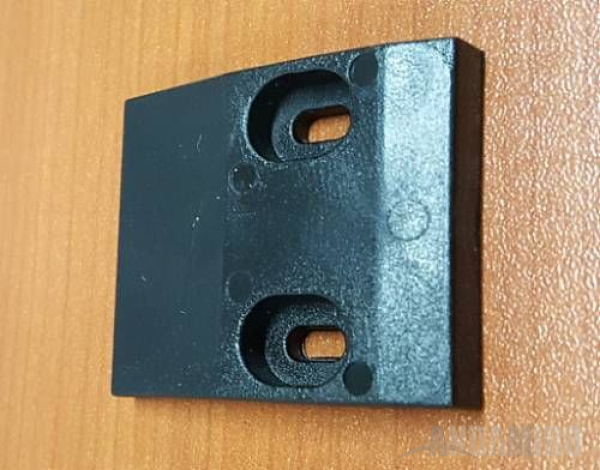

9.2

[MICRO SWITCH] CARD OUTLET GUIDE BLOCK

ABS

[MICRO SWITCH] CARD OUTLET GUIDE BLOCK

MZZZ0PLA042

Part picture

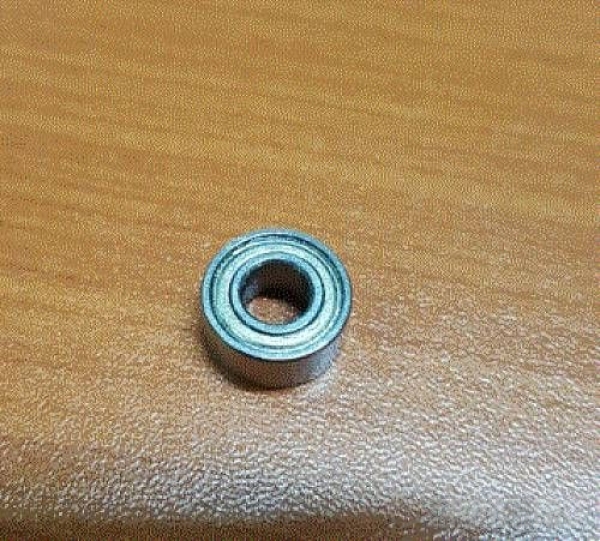

9.2.1

[MICRO SWITCH] BEARING

685ZZ

[MICRO SWITCH] BEARING

MZZZ0BEA107

Part picture
9.2.2

[MICRO SWITCH] BEARING

685ZZ

[MICRO SWITCH] BEARING

MZZZ0BEA107

Part picture
9.2.1

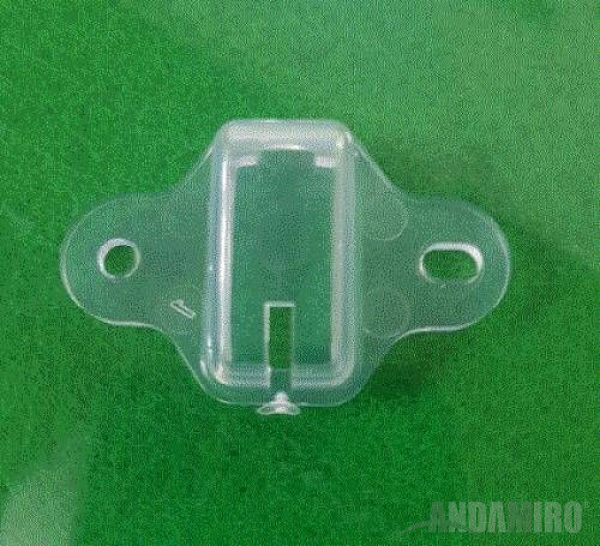

[MICRO SWITCH] HOPPER RAIL BALL GUIDE

.

[MICRO SWITCH] HOPPER RAIL BALL GUIDE

MZZZ0ELH031

Part picture
9.2.2

[MICRO SWITCH] HOPPER RAIL BALL GUIDE

.

[MICRO SWITCH] HOPPER RAIL BALL GUIDE

MZZZ0ELH031

Part picture

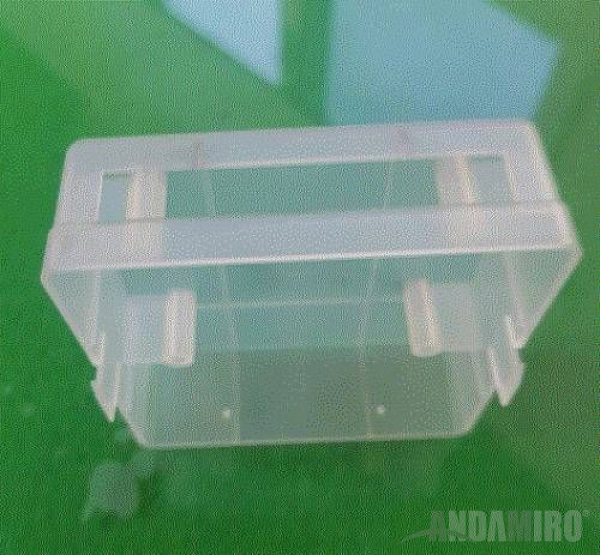

9.2.3

[MICRO SWITCH] HOPPER PCB COVER

.

[MICRO SWITCH] HOPPER PCB COVER

MZZZ0ELH029

Part picture
9.2.4

[MICRO SWITCH] HOPPER PCB COVER

.

[MICRO SWITCH] HOPPER PCB COVER

MZZZ0ELH029

Part picture
9.2.5

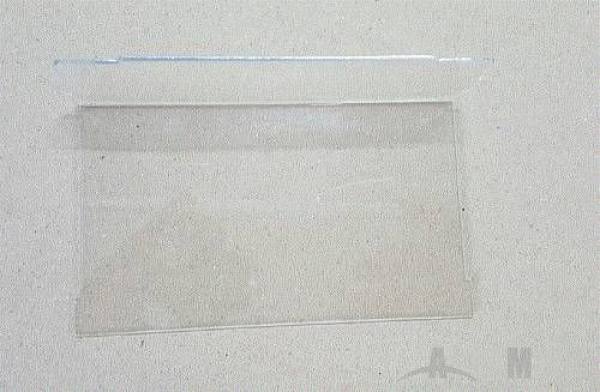

[MICRO SWITCH] MOTOR COVER

.

[MICRO SWITCH] MOTOR COVER

MZZZ0ELH033

Part picture
9.2.6

[MICRO SWITCH] MOTOR COVER

.

[MICRO SWITCH] MOTOR COVER

MZZZ0ELH033

Part picture

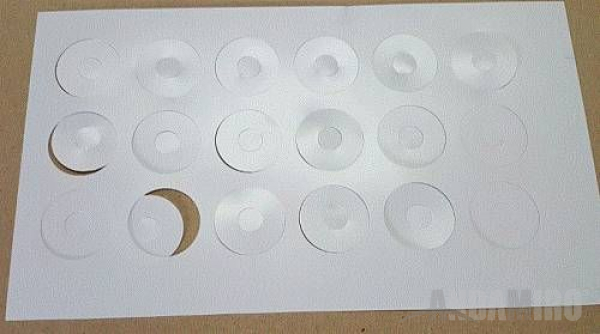

9.2.7

[MICRO SWITCH] HOPPER DISK FILM

.

[MICRO SWITCH] HOPPER DISK FILM

MZZZ0ELH032

Part picture
9.2.8

[MICRO SWITCH] HOPPER DISK FILM

.

[MICRO SWITCH] HOPPER DISK FILM

MZZZ0ELH032

Part picture
9.3

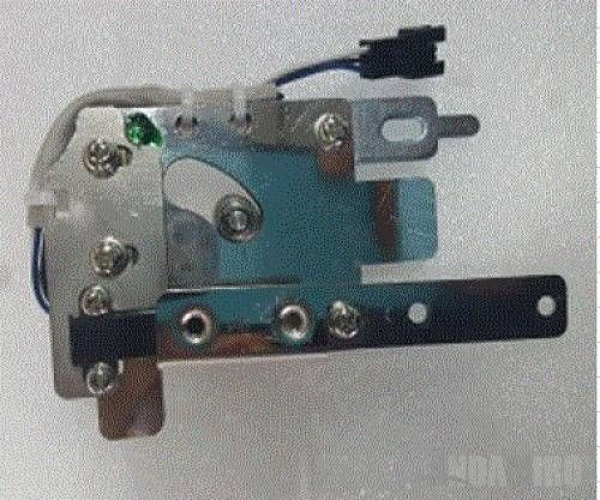

[MICRO SWITCH] ELEVATOR HOPPER TOP

ANDA

[MICRO SWITCH] ELEVATOR HOPPER TOP

AZZZ0ELH002

Part picture
9.4

[MICRO SWITCH] ELEVATOR HOPPER TOP

ANDA

[MICRO SWITCH] ELEVATOR HOPPER TOP

AZZZ0ELH002

Part picture
9.4.1

[MICRO SWITCH] COIN BOWL BAFFLE BAR

8MM X L130 _PVC환봉

[MICRO SWITCH] COIN BOWL BAFFLE BAR

MZZZ0ELH038

Part picture
9.4.2

[MICRO SWITCH] COIN BOWL BAFFLE BAR

8MM X L130 _PVC환봉

[MICRO SWITCH] COIN BOWL BAFFLE BAR

MZZZ0ELH038

Part picture
9.5.2

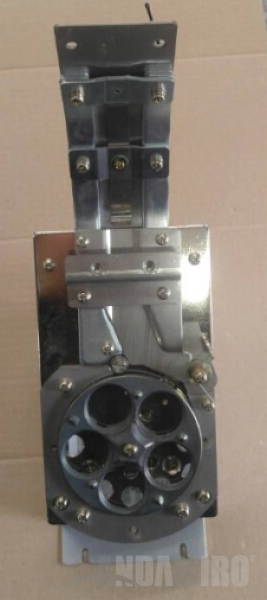

[MICRO SWITCH] EV HOPPER BODY ASS'Y

A TYPE_COMMON BODY

[MICRO SWITCH] EV HOPPER BODY ASS'Y

AZZZ0ELH001

Part picture
9.6.2

[MICRO SWITCH] EV HOPPER BODY ASS'Y

A TYPE_COMMON BODY

[MICRO SWITCH] EV HOPPER BODY ASS'Y

AZZZ0ELH001

Part picture
9.6.2.1

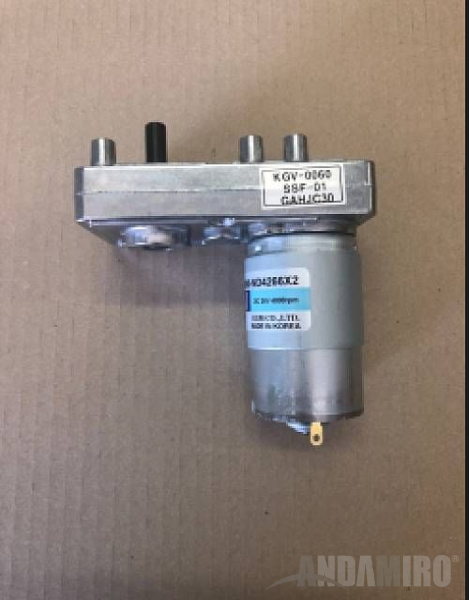

[MICRO SWITCH] MOTOR EV HOPPER

KGV-0060-ND4266X2

[MICRO SWITCH] MOTOR EV HOPPER

MZZZ0ELH040

Part picture
9.6.2.2

[MICRO SWITCH] MOTOR EV HOPPER

KGV-0060-ND4266X2

[MICRO SWITCH] MOTOR EV HOPPER

MZZZ0ELH040

Part picture
10

CARD DISPENSER SETTING JIG

COMMON

CARD DISPENSER SETTING JIG

AZZZ0ACP002

Part picture

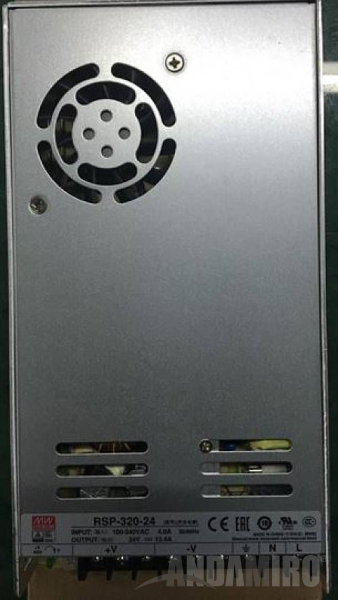

11

POWER SMPS

RSP-320-24

POWER SMPS

MELE0SMP101

Part picture
12

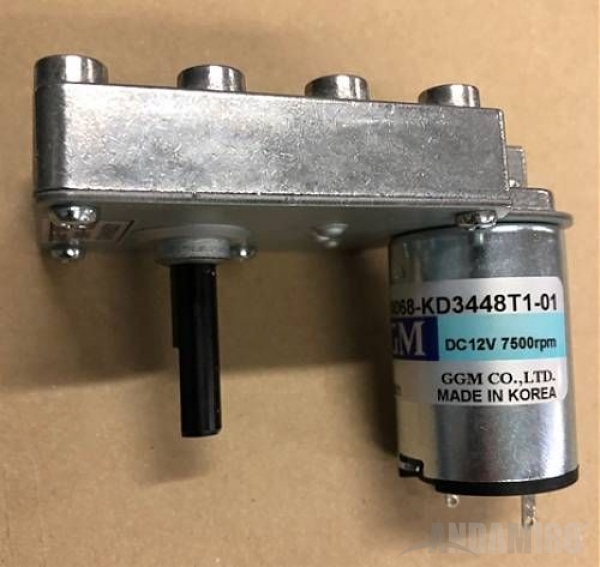

MOTOR

KGE-0068-3448T1_R-TYPE

MOTOR

MZZZ0MOT132

Part picture
12.6.2.1

[MOTOR] PUSHER BODY COIN BAFFLE SUPT

.

[MOTOR] PUSHER BODY COIN BAFFLE SUPT

MAV20MEP118

Part picture

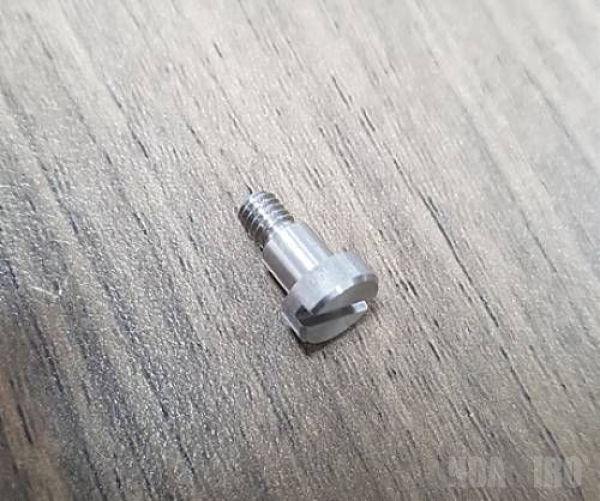

12.6.1.1

[MOTOR] BEARING GUIDE PIN

CHIP HOPPER

[MOTOR] BEARING GUIDE PIN

MZZZ0HOP033

Part picture
12.6.2.1

[MOTOR] BEARING GUIDE PIN

CHIP HOPPER

[MOTOR] BEARING GUIDE PIN

MZZZ0HOP033

Part picture
13

BUTTON ASS'Y

CL-2020 65 WITH LED

BUTTON ASS'Y

AZZZ0BUT009

Part picture
14

SPEAKER_MID 4.5"_TW1/2

8Ω W-C-100 F BK

SPEAKER_MID 4.5"_TW1/2

MZZZ0SPE021

Part picture
15

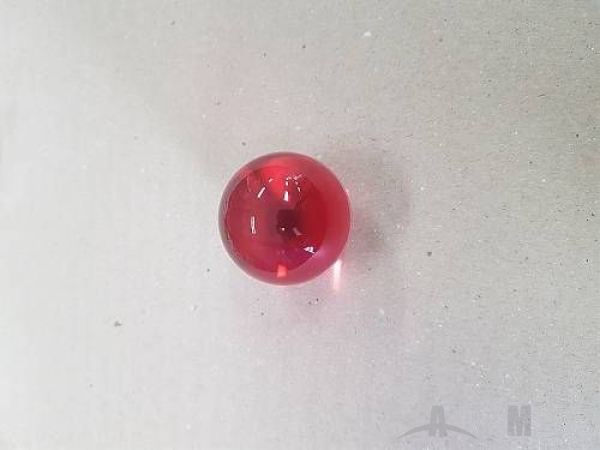

BALL

40mm, RED

BALL

MZZZ0BLL015

Part picture
16

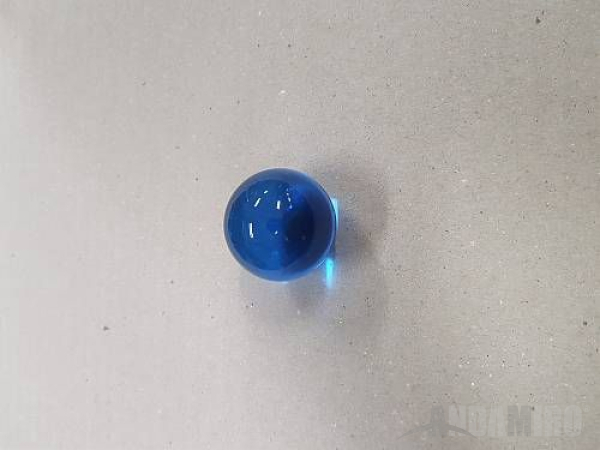

BALL

40mm, BLUE

BALL

MZZZ0BLL016

Part picture

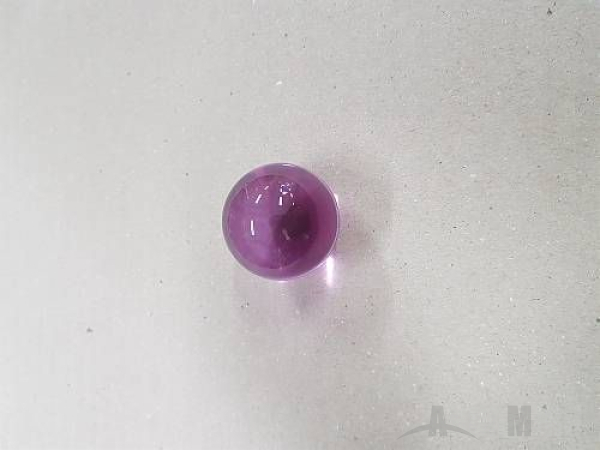

17

BALL

40mm, PURPLE

BALL

MZZZ0BLL017

Part picture

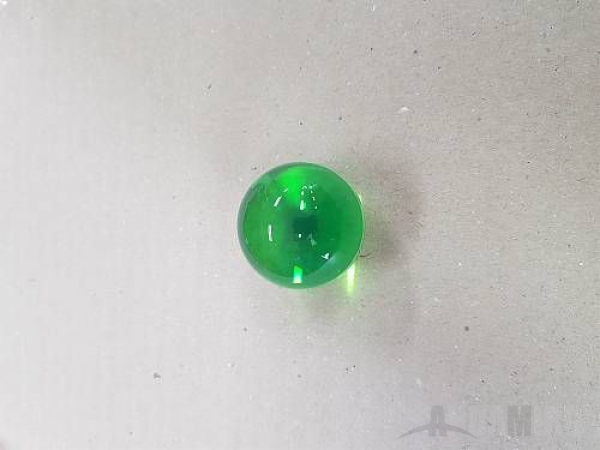

18

BALL

40mm, GREEN

BALL

MZZZ0BLL018

Part picture

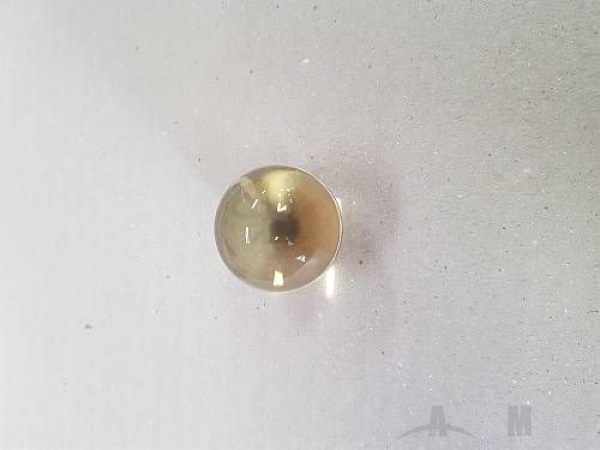

19

BALL

40mm, YELLOW

BALL

MZZZ0BLL019

Part picture

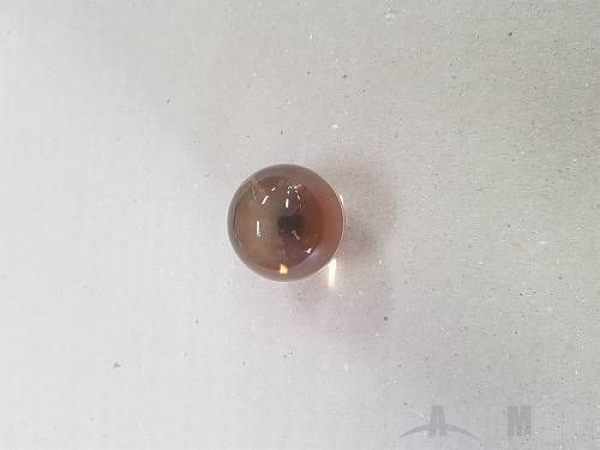

20

BALL

40mm, ORANGE

BALL

MZZZ0BLL020

Part picture
21

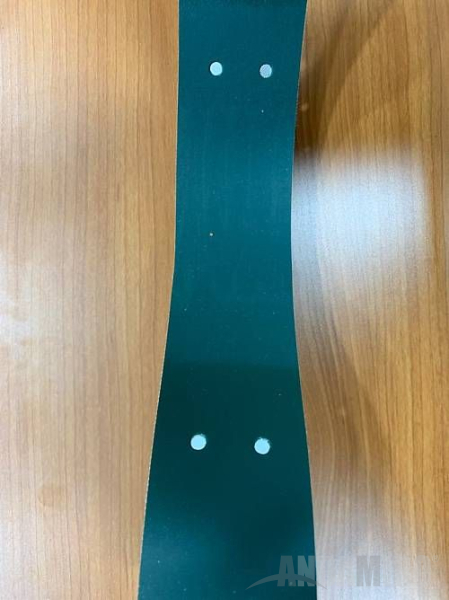

BIG BALL EV BELT

PVC1.4TX50WX954.2L

BIG BALL EV BELT

MZZZ0BEL047

Part picture
22

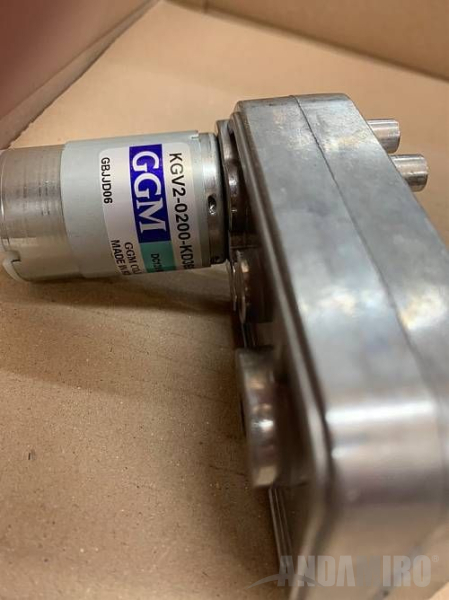

MOTOR

KGV2-0200-3657U1 (25 RPM)

MOTOR

MZZZ0MOT161

Part picture

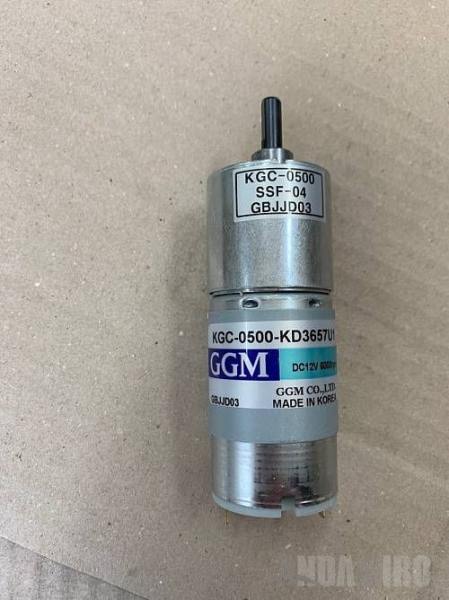

23

MOTOR NEW CODE MZZZ0MOT173

KGC-0500-3657U1

MOTOR NEW CODE MZZZ0MOT173

MZZZ0MOT149

Part picture
24

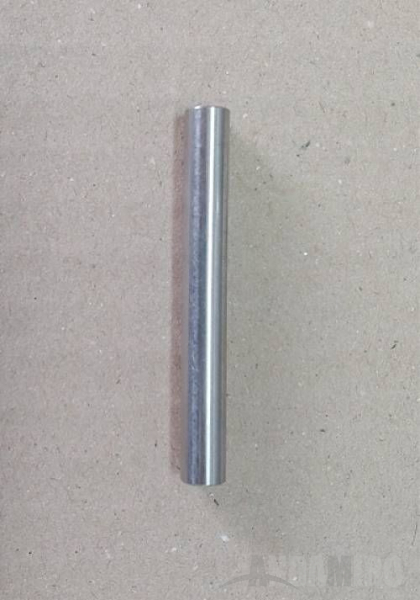

BILLBOARD SUPT BAR-B

.

BILLBOARD SUPT BAR-B

MAV20PRO009

Part picture
25

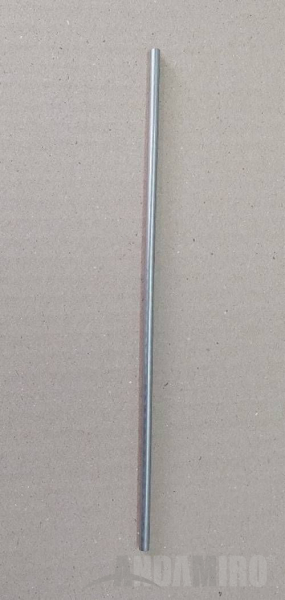

BIG WHEEL SIDE COLUMN SHAFT

.

BIG WHEEL SIDE COLUMN SHAFT

MAV20PRO058

Part picture
26

MEDAL ROLLER SPACER

.

MEDAL ROLLER SPACER

MAV20PRO006

Part picture
27

BIG BALL SCREW GUIDE BAR

.

BIG BALL SCREW GUIDE BAR

MAV20PRO047

Part picture

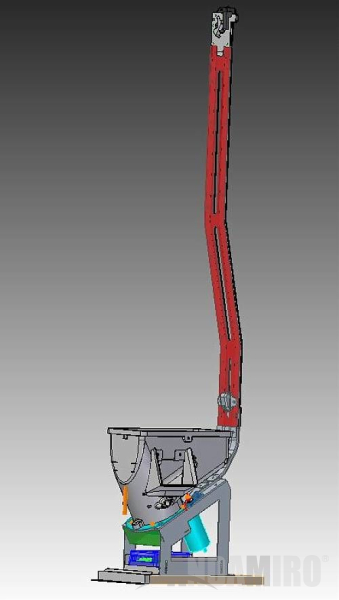

28

A_MEDAL EV HOPPER FRONT

AV2

A_MEDAL EV HOPPER FRONT

AAV20ASS017

Part picture
29

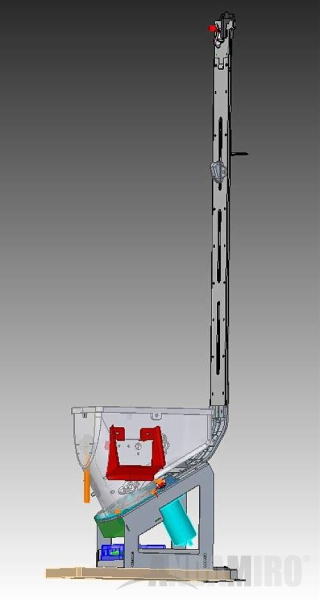

A_MEDAL EV HOPPER REAR

AV2

A_MEDAL EV HOPPER REAR

AAV20ASS018

Part picture
29.6.2.1

[A_MEDAL EV HOPPER REAR] MOTOR_BLDC

KGV2-0350-NB3640S1

[A_MEDAL EV HOPPER REAR] MOTOR_BLDC

MZZZ0MOT152

Part picture
29.6.2.2

[A_MEDAL EV HOPPER REAR] MOTOR_BLDC

KGV2-0350-NB3640S1

[A_MEDAL EV HOPPER REAR] MOTOR_BLDC

MZZZ0MOT152

Part picture

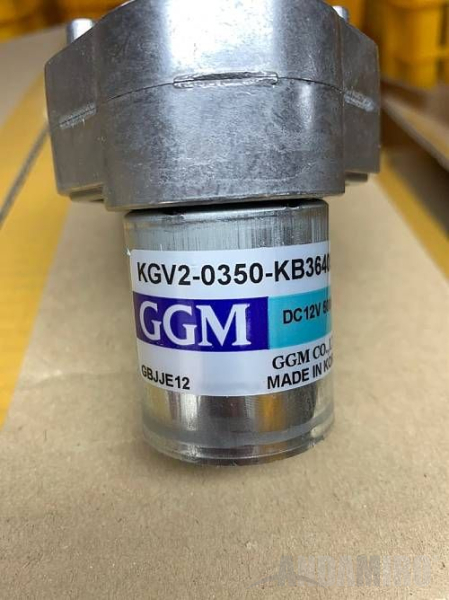

30

MOTOR_BLDC

KGV2-0350-NB3640S1

MOTOR_BLDC

MZZZ0MOT152

Part picture
31

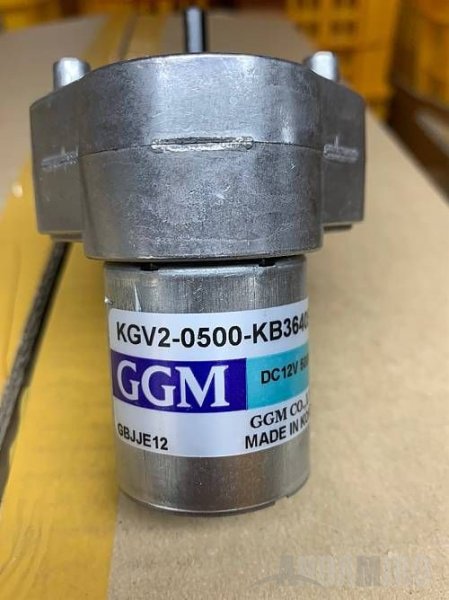

MOTOR_BLDC

KGV2-0500-NB3640S1

MOTOR_BLDC

MZZZ0MOT160

Part picture
32

TIMMING BELT

56MXL , W 6.4

TIMMING BELT

MZZZ0BEL040

Part picture
33

COIN BOX SMALL

200*198*107 BLACK

COIN BOX SMALL

MDRE0PLA007

Part picture
34

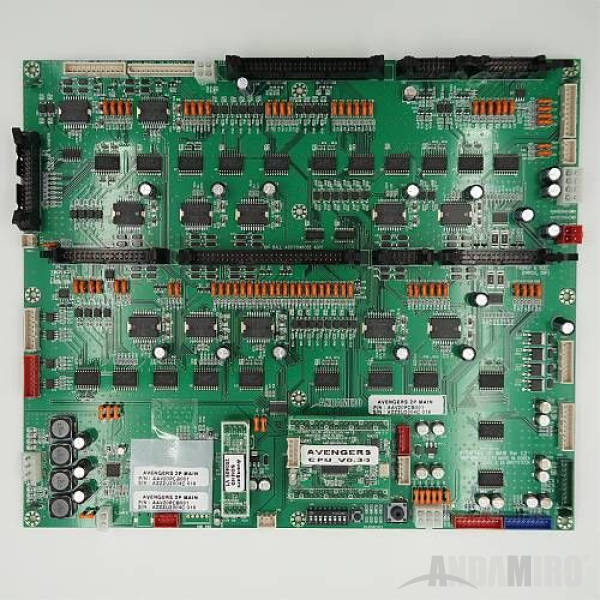

AV2 MAIN PCB ASS'Y W CPU SOUND

AVENGERS 2P

AV2 MAIN PCB ASS'Y W CPU SOUND

AAV20PCB001

Part picture
35

SETUP LCD PCB ASS'Y

UNISYSTECH

SETUP LCD PCB ASS'Y

AZZZ0PCB113

Part picture
36

RGB_BUTTON_LED PCB ASS'Y V2

1T

RGB_BUTTON_LED PCB ASS'Y V2

AZZZ0PCB209

Part picture
37

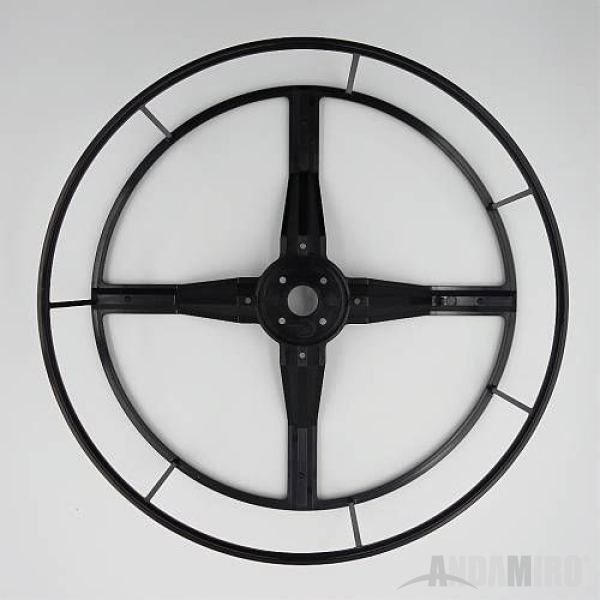

SLOT WHEEL MOLD

.

SLOT WHEEL MOLD

MAV20PLA002

Part picture
38

CODE CHANGE AZZZ0BUT013

BUTTON SWITCH TICKET AM1PB-26SH R12D

CODE CHANGE AZZZ0BUT013

MMUM0BUT002

Part picture

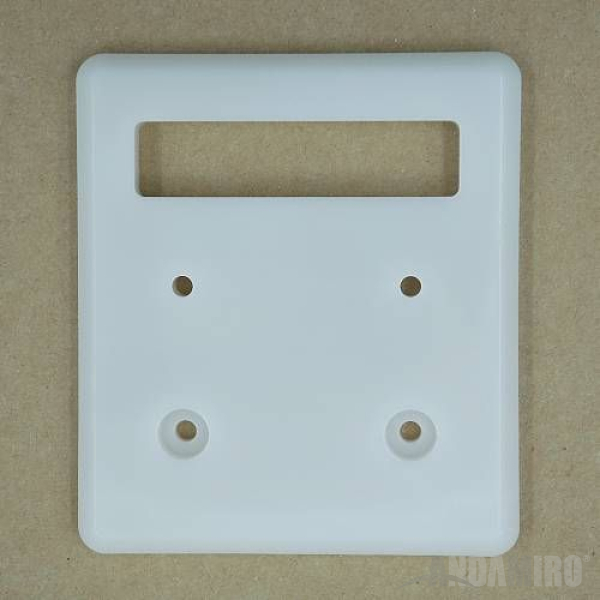

38.1.2.2

[CODE CHANGE AZZZ0BUT013] CARD DISPENSER FRONT MASK MOLD

.

[CODE CHANGE AZZZ0BUT013] CARD DISPENSER FRONT MASK MOLD

MDCC0PLA009

Part picture

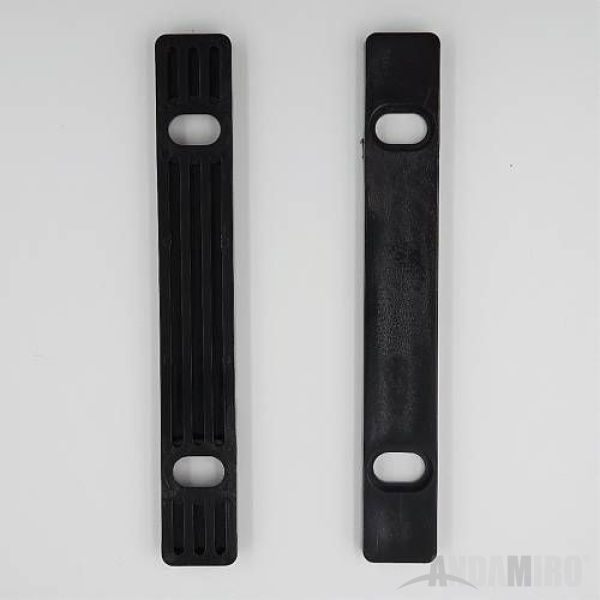

39

SIDE PAYOUT GUIDE MOLD

.

SIDE PAYOUT GUIDE MOLD

MDCC0PLA010

Part picture
39.1.2.2

[SIDE PAYOUT GUIDE MOLD] TIMMING PULLEY

MXL-29

[SIDE PAYOUT GUIDE MOLD] TIMMING PULLEY

MZZZ0PLA040

Part picture
40

LED STICK BAR BRK

12MM 90도

LED STICK BAR BRK

MELE0000022

Part picture

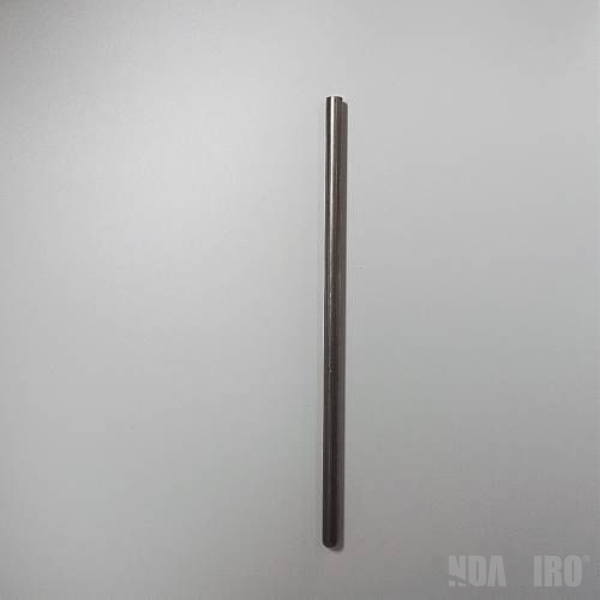

41

PUSHER PANEL BALL GUIDE SHAFT

.

PUSHER PANEL BALL GUIDE SHAFT

MAV20PRO053

Part picture
41.1.2.2

[PUSHER PANEL BALL GUIDE SHAFT] BEARING

F606ZZ

[PUSHER PANEL BALL GUIDE SHAFT] BEARING

MZZZ0BEA073

Part picture
42

BEARING

F606ZZ

BEARING

MZZZ0BEA073

Part picture
42.1.2.2

[BEARING] PHOTO INT-1 PCB ASS'Y

ANGLE TYPE

[BEARING] PHOTO INT-1 PCB ASS'Y

AZZZ0PCB103

Part picture
42.1.2.1

[BEARING] PHOTO INT-1 PCB ASS'Y

ANGLE TYPE

[BEARING] PHOTO INT-1 PCB ASS'Y

AZZZ0PCB103

Part picture
42.1.2.2

[BEARING] PHOTO INT-1 PCB ASS'Y

ANGLE TYPE

[BEARING] PHOTO INT-1 PCB ASS'Y

AZZZ0PCB103

Part picture
42.2.2

[BEARING] PHOTO INT-1 PCB ASS'Y

ANGLE TYPE

[BEARING] PHOTO INT-1 PCB ASS'Y

AZZZ0PCB103

Part picture
43

PHOTO INT-1 PCB ASS'Y

ANGLE TYPE

PHOTO INT-1 PCB ASS'Y

AZZZ0PCB103

Part picture

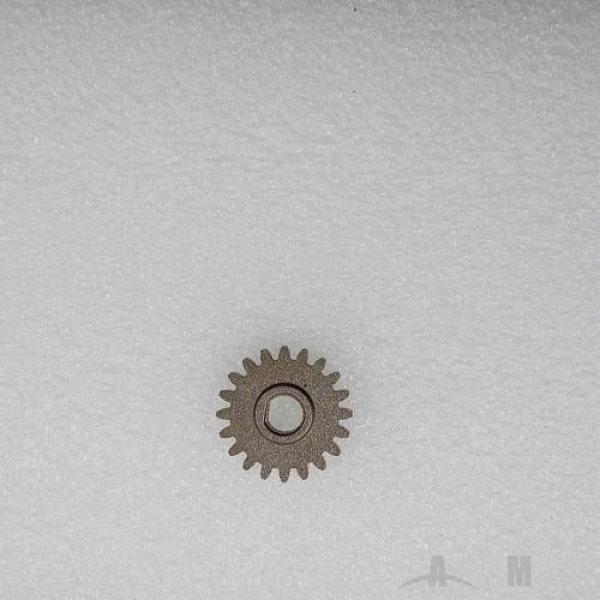

43.1.2

[PHOTO INT-1 PCB ASS'Y] GEAR

20M MODULE

[PHOTO INT-1 PCB ASS'Y] GEAR

MZZZ0ELH042

Part picture
44

AC INPUT ASS'Y

DAC-13H,WITH FUSE10A_2EA

AC INPUT ASS'Y

AELE0FUS002

Part picture

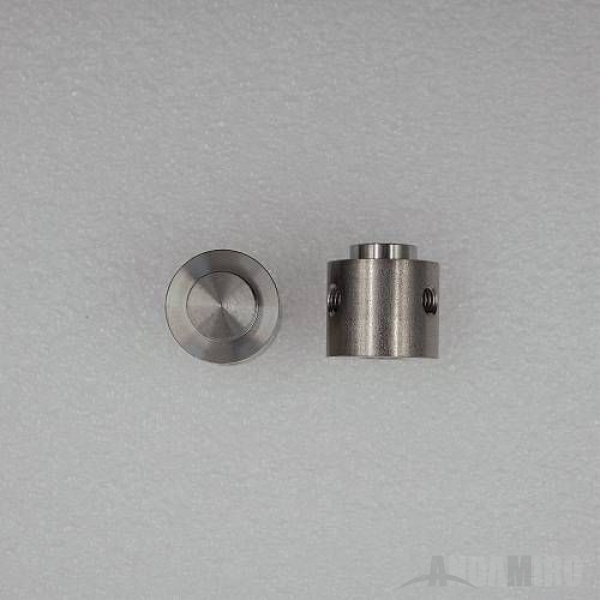

45

MOVING MOTOR ROTATE SHAFT-A

.

MOVING MOTOR ROTATE SHAFT-A

MAV20PRO024

Part picture
46

NOISE FILTER

RNS-2010

NOISE FILTER

MELE0NOI009

Part picture
47

TERMINAL BLOCK

250V 10P UL_CE

TERMINAL BLOCK

MELE0TEB003

Part picture
48

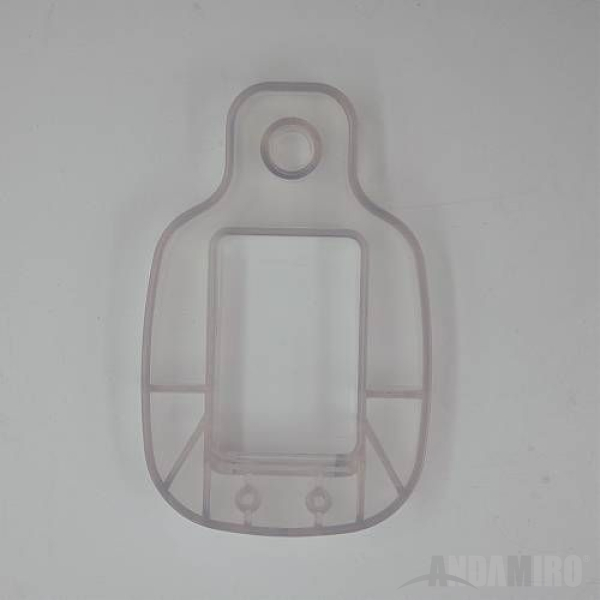

TARGET MOLD

투명 ABS , 신규금형

TARGET MOLD

MAV20PLA001

Part picture
49

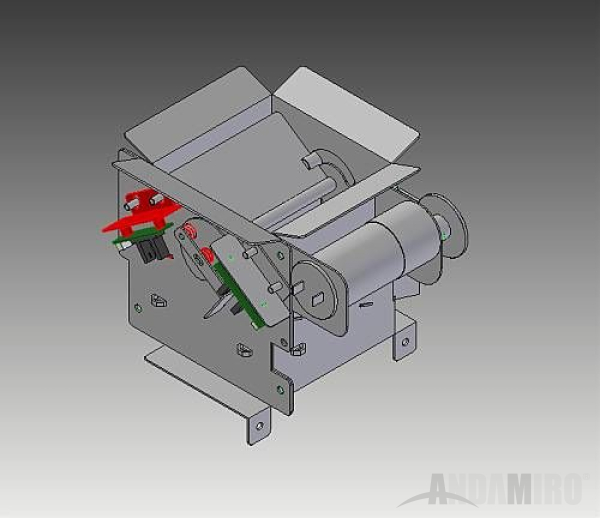

A_TOKEN BRIDGE

AV2_A TYPE_V3 20210618

A_TOKEN BRIDGE

AAV20ASS050

Part picture
49.1.1

[A_TOKEN BRIDGE] BEARING BALL

SUS-Φ12

[A_TOKEN BRIDGE] BEARING BALL

MZZZ0ELH039

Part picture
49.1.2

[A_TOKEN BRIDGE] BEARING BALL

SUS-Φ12

[A_TOKEN BRIDGE] BEARING BALL

MZZZ0ELH039

Part picture

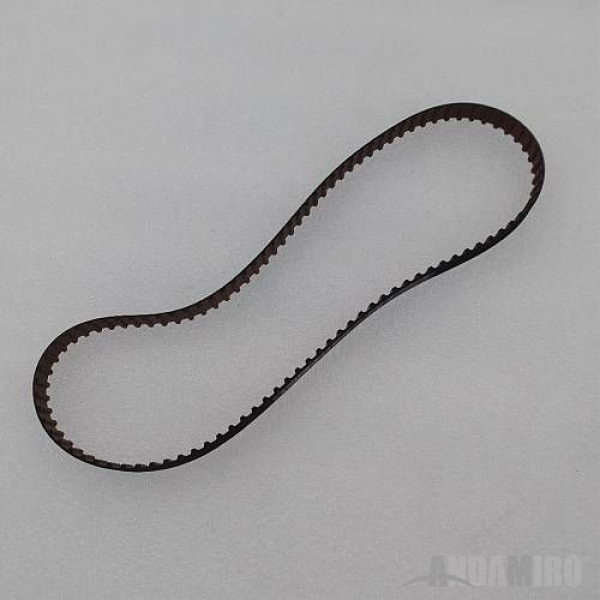

49.2.2

[A_TOKEN BRIDGE] M/L TIMMING BELT

194XL ,W 9.5 RUBBER

[A_TOKEN BRIDGE] M/L TIMMING BELT

MZZZ0BEL054

Part picture

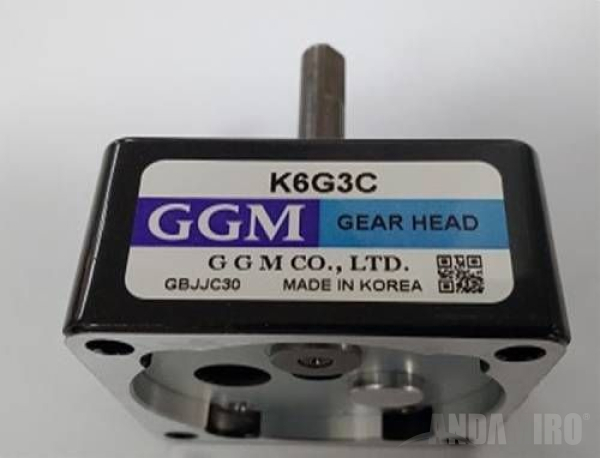

50

GEAR HEAD

K6G3C

GEAR HEAD

MWIC0PAR028

Part picture
50.2.1

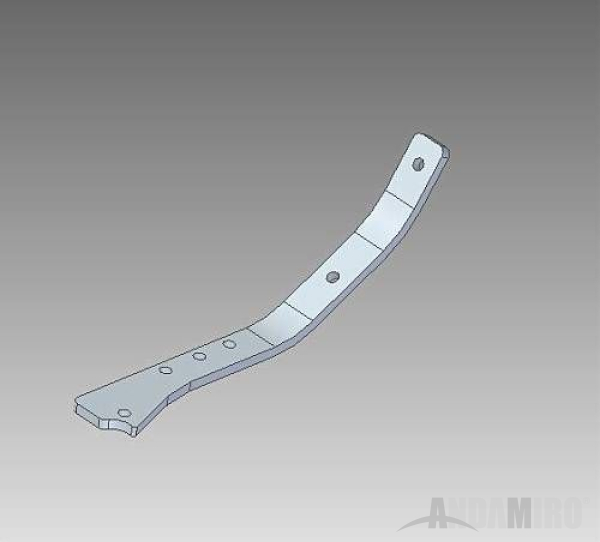

[GEAR HEAD] OUTLET GUIDE RAIL COVER-A

.

[GEAR HEAD] OUTLET GUIDE RAIL COVER-A

MZZZ0ELH010

Part picture
50.2.2

[GEAR HEAD] OUTLET GUIDE RAIL COVER-A

.

[GEAR HEAD] OUTLET GUIDE RAIL COVER-A

MZZZ0ELH010

Part picture
50.2.3

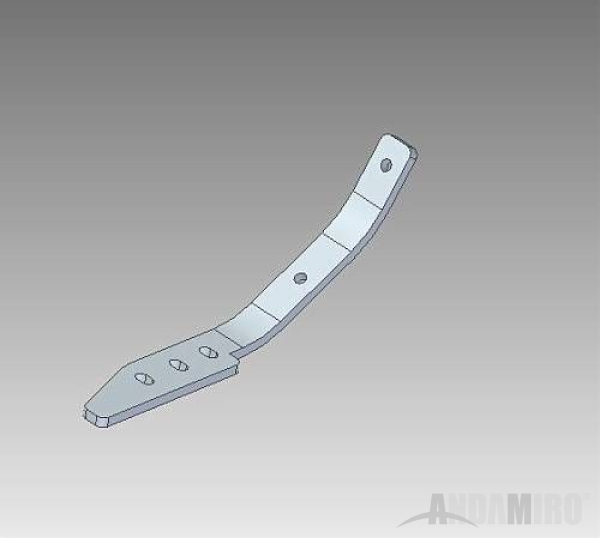

[GEAR HEAD] OUTLET GUIDE RAIL COVER-B

.

[GEAR HEAD] OUTLET GUIDE RAIL COVER-B

MZZZ0ELH011

Part picture
50.2.4

[GEAR HEAD] OUTLET GUIDE RAIL COVER-B

.

[GEAR HEAD] OUTLET GUIDE RAIL COVER-B

MZZZ0ELH011

Part picture
51

CHUTE SENSOR PCB ASS'Y

.

CHUTE SENSOR PCB ASS'Y

ASAW0PCB001

Part picture

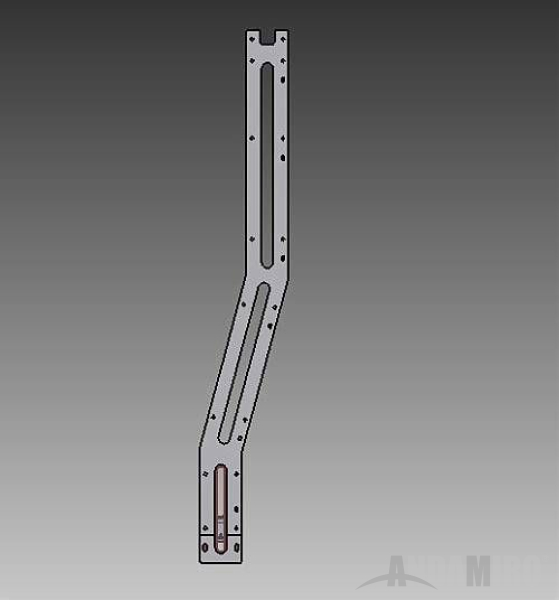

51.1.4

[CHUTE SENSOR PCB ASS'Y] EV-HOPPER_FRONT_RAIL ASS'Y

.

[CHUTE SENSOR PCB ASS'Y] EV-HOPPER_FRONT_RAIL ASS'Y

AAV20ASS042

Part picture
51.1.4.1

[CHUTE SENSOR PCB ASS'Y] MOVING PUSHER ROTATE BLOCK

.

[CHUTE SENSOR PCB ASS'Y] MOVING PUSHER ROTATE BLOCK

AAV20MEP008

Part picture
51.1.4.2

[CHUTE SENSOR PCB ASS'Y] MOVING PUSHER ROTATE BLOCK

.

[CHUTE SENSOR PCB ASS'Y] MOVING PUSHER ROTATE BLOCK

AAV20MEP008

Part picture
52

MOVING PUSHER ROTATE BLOCK

.

MOVING PUSHER ROTATE BLOCK

AAV20MEP008

Part picture
52.1.4.1

[MOVING PUSHER ROTATE BLOCK] MOVING PUSHER BASE FRAME

.

[MOVING PUSHER ROTATE BLOCK] MOVING PUSHER BASE FRAME

MAV20MEP114

Part picture
52.1.4.2

[MOVING PUSHER ROTATE BLOCK] PUSHER BODY COIN BAFFLE BKT

.

[MOVING PUSHER ROTATE BLOCK] PUSHER BODY COIN BAFFLE BKT

MAV20MEP012

Part picture
53

LED BAR 12V ASS'Y_V2

460MM

LED BAR 12V ASS'Y_V2

AZZZ0PCB240

Part picture

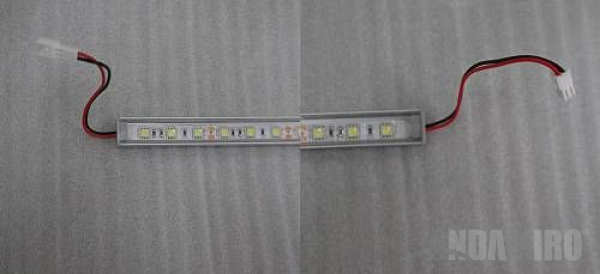

54

LED BAR 12V ASS'Y_V2

710MM

LED BAR 12V ASS'Y_V2

AZZZ0PCB241

Part picture
55

LED BAR 12V ASS'Y_V2

900MM

LED BAR 12V ASS'Y_V2

AZZZ0PCB242

Part picture
55.1.4.1

[LED BAR 12V ASS'Y_V2] MOVING PUSHER FRONT CAIN BAFFLE BKT

.

[LED BAR 12V ASS'Y_V2] MOVING PUSHER FRONT CAIN BAFFLE BKT

MAV20MEP236

Part picture
55.1.4.2

[LED BAR 12V ASS'Y_V2] MOVING PUSHER LM ASS'Y

.

[LED BAR 12V ASS'Y_V2] MOVING PUSHER LM ASS'Y

AAV20PAT031

Part picture
56

KEY ASS'Y 7001

BODY

KEY ASS'Y 7001

MZZZ0KEY076

Part picture
57

KEY ONLY 7001

2EA 1SET_WITH RING

KEY ONLY 7001

MZZZ0KEY035

Part picture
57.1.4.1

[KEY ONLY 7001] PUSHER BODY COIN BAFFLE

ACETAL

[KEY ONLY 7001] PUSHER BODY COIN BAFFLE

MSBP0PRO001

Part picture

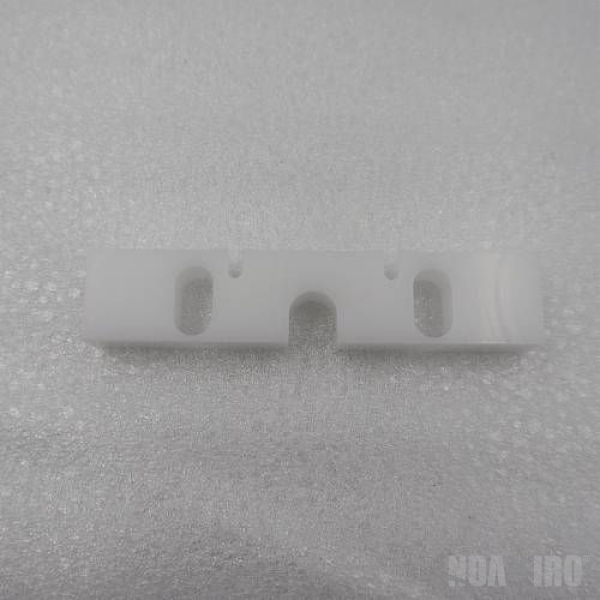

58

PUSHER BODY COIN BAFFLE

ACETAL

PUSHER BODY COIN BAFFLE

MSBP0PRO001

Part picture
59

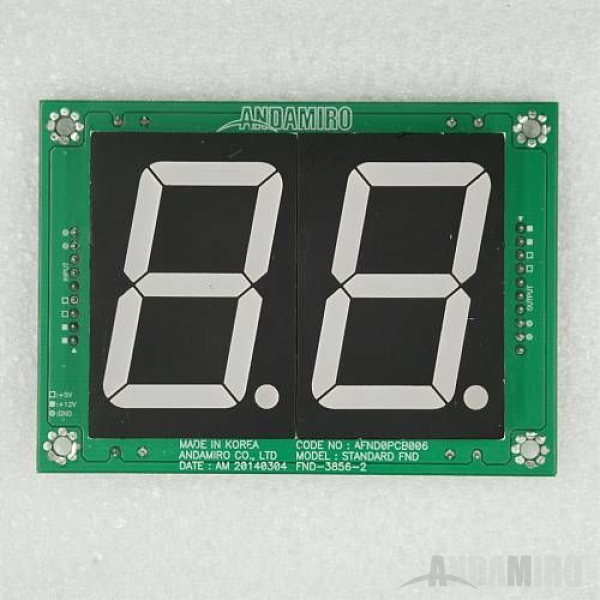

FND PCB ASS'Y

3856-2(STRAIGHT)

FND PCB ASS'Y

AFND0PCB006

Part picture
60

FND PCB ASS'Y

3856-4(STRAIGHT)

FND PCB ASS'Y

AFND0PCB007

Part picture
61

ROCKER SWITCH

R595KDF

ROCKER SWITCH

MELE0SWI021

Part picture
62

PUSH BUTTON SWITCH

DS-412R ROSH

PUSH BUTTON SWITCH

MELE0PUS006

Part picture
62.1.4.1

[PUSH BUTTON SWITCH] COIN BOWL BOX BASE SUPT

.

[PUSH BUTTON SWITCH] COIN BOWL BOX BASE SUPT

MZZZ0ELH005

Part picture
62.1.4.2

[PUSH BUTTON SWITCH] COIN BOWL BOX BASE SUPT

.

[PUSH BUTTON SWITCH] COIN BOWL BOX BASE SUPT

MZZZ0ELH005

Part picture
62.1.4.3

[PUSH BUTTON SWITCH] OUTLET GUIDE BLOCK

.

[PUSH BUTTON SWITCH] OUTLET GUIDE BLOCK

MZZZ0ELH009

Part picture
62.1.4.4

[PUSH BUTTON SWITCH] OUTLET GUIDE BLOCK

.

[PUSH BUTTON SWITCH] OUTLET GUIDE BLOCK

MZZZ0ELH009

Part picture

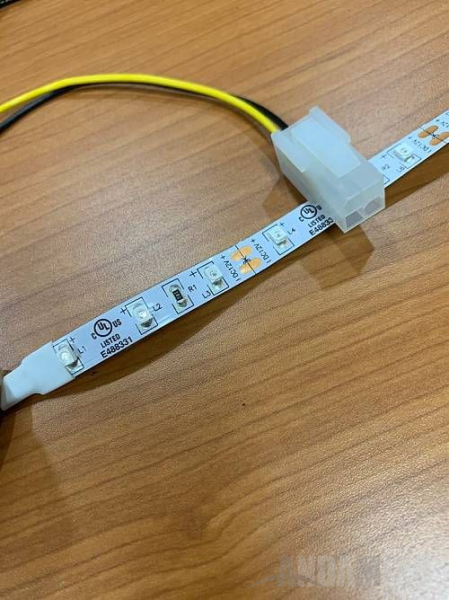

63

FLEX_3528_BLUE_1700_NWP_L_102

FLEX_3528_BLUE_1700_NWP_L_102

MELE0LED043

Part picture

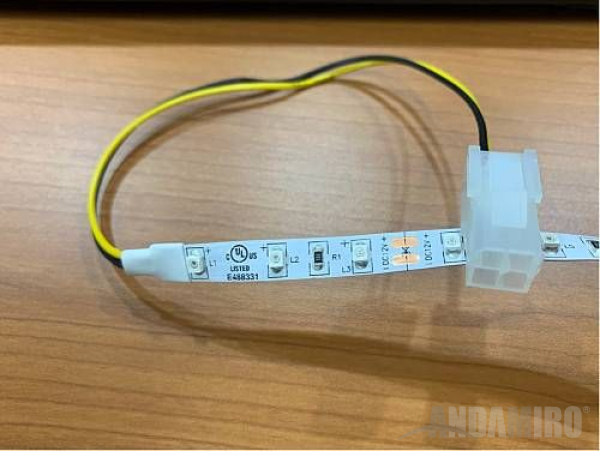

64

FLEX_3528_RED_1700_NWP_L_102

FLEX_3528_RED_1700_NWP_L_102

MELE0LED046

Part picture
64.1.4.4

[FLEX_3528_RED_1700_NWP_L_102] COUPLING CR050 ASS'Y

8*8_M5_TAB120_M3_18.4

[FLEX_3528_RED_1700_NWP_L_102] COUPLING CR050 ASS'Y

AZZZ0COP003

Part picture
65

COUPLING CR050 ASS'Y

8*8_M5_TAB120_M3_18.4

COUPLING CR050 ASS'Y

AZZZ0COP003

Part picture
65.1.4.4

[COUPLING CR050 ASS'Y] PHOTO INT-1 PCB ASS'Y

STRIGHT_CIRCLE RAMA

[COUPLING CR050 ASS'Y] PHOTO INT-1 PCB ASS'Y

ACIR0PCB011

Part picture
66

PHOTO INT-1 PCB ASS'Y

STRIGHT_CIRCLE RAMA

PHOTO INT-1 PCB ASS'Y

ACIR0PCB011

Part picture

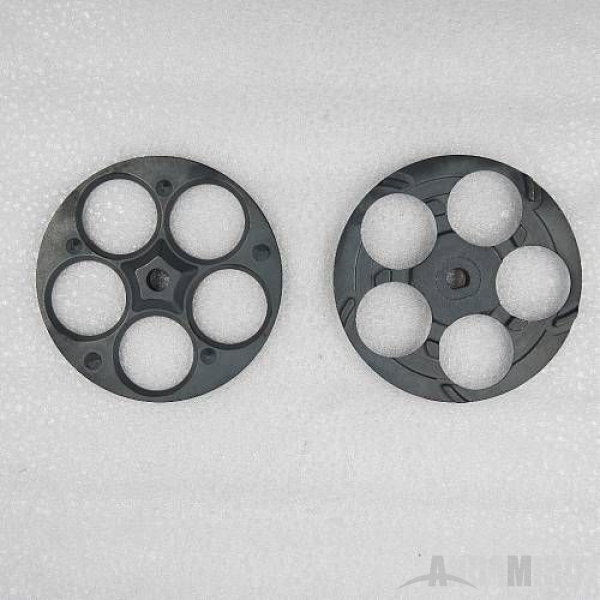

66.1.4.1

[PHOTO INT-1 PCB ASS'Y] HOPPER DISK ASS'Y

.

[PHOTO INT-1 PCB ASS'Y] HOPPER DISK ASS'Y

AZZZ0ASS008

Part picture
66.1.4.2

[PHOTO INT-1 PCB ASS'Y] HOPPER DISK ASS'Y

.

[PHOTO INT-1 PCB ASS'Y] HOPPER DISK ASS'Y

AZZZ0ASS008

Part picture
67

POWER SMPS

LRS 150F_24

POWER SMPS

MELE0SMP085

Part picture

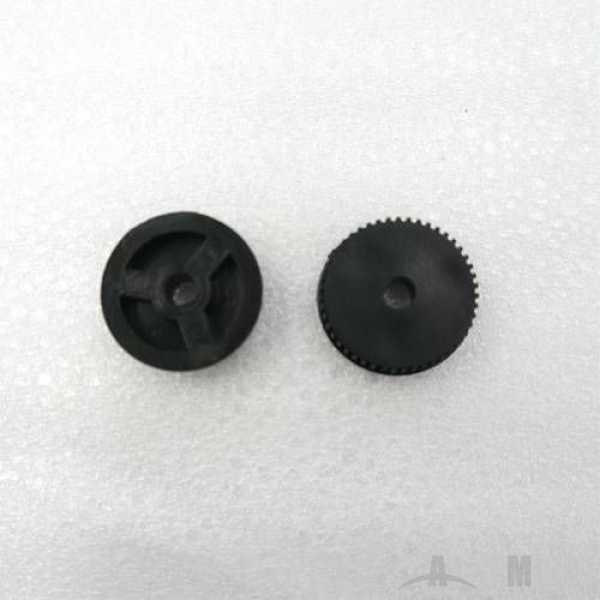

67.1.4.2

[POWER SMPS] TIMMING PULLEY

MXL-47

[POWER SMPS] TIMMING PULLEY

MZZZ0PLA039

Part picture

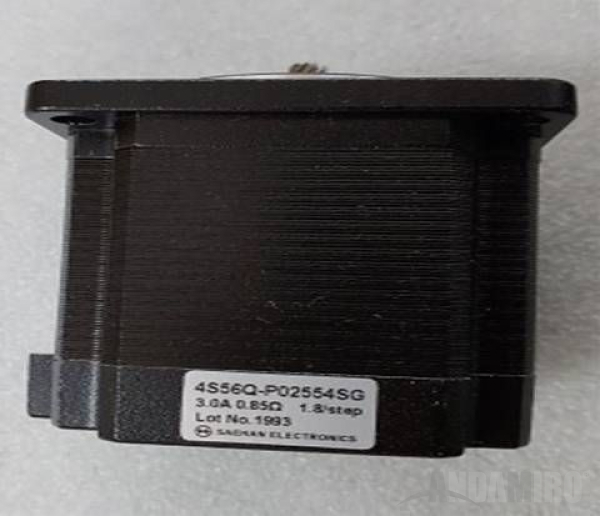

68

STEPPING MOTOR NO WIRE

4S56Q-P02554SG

STEPPING MOTOR NO WIRE

MZZZ0MOT166

Part picture

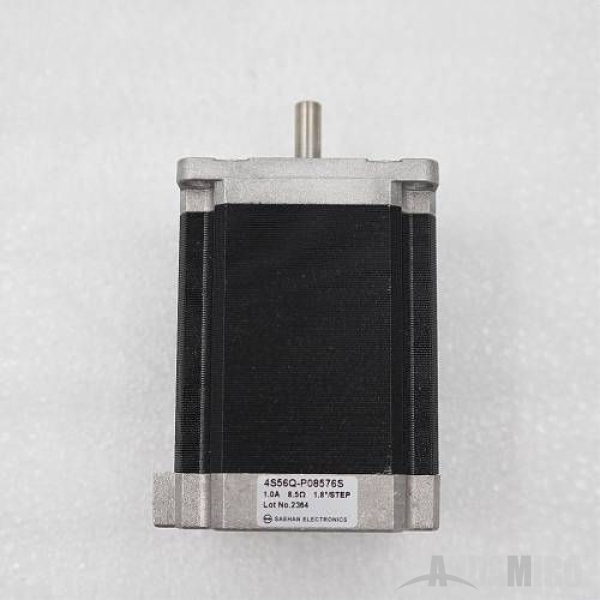

69

STEPPING MOTOR NO WIRE

4S56Q-08576S

STEPPING MOTOR NO WIRE

MZZZ0MOT167

Part picture
69.1.1.2

[STEPPING MOTOR NO WIRE] OUTLET GUIDE ASS'Y

.

[STEPPING MOTOR NO WIRE] OUTLET GUIDE ASS'Y

AZZZ0ASS092

Part picture
69.1.2.2

[STEPPING MOTOR NO WIRE] OUTLET GUIDE ASS'Y

.

[STEPPING MOTOR NO WIRE] OUTLET GUIDE ASS'Y

AZZZ0ASS092

Part picture

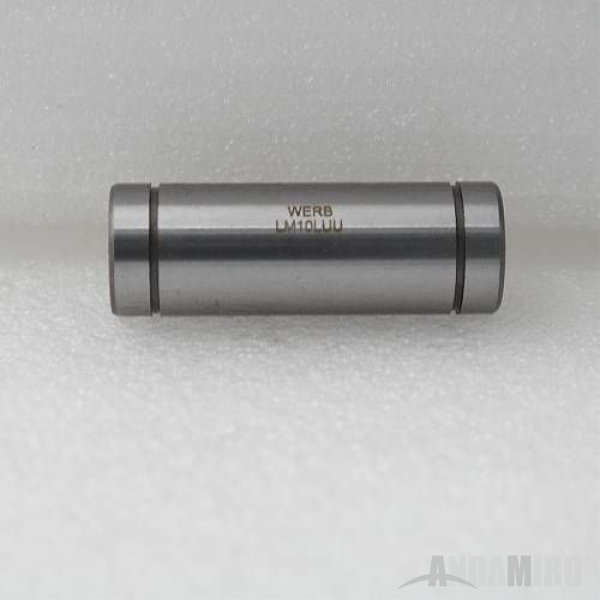

69.1.3.2

[STEPPING MOTOR NO WIRE] LM BEARING BUSH

LM10LUU

[STEPPING MOTOR NO WIRE] LM BEARING BUSH

MZZZ0BEA118

Part picture
69.1.4.2

[STEPPING MOTOR NO WIRE] LM BEARING BUSH

LM10LUU

[STEPPING MOTOR NO WIRE] LM BEARING BUSH

MZZZ0BEA118

Part picture

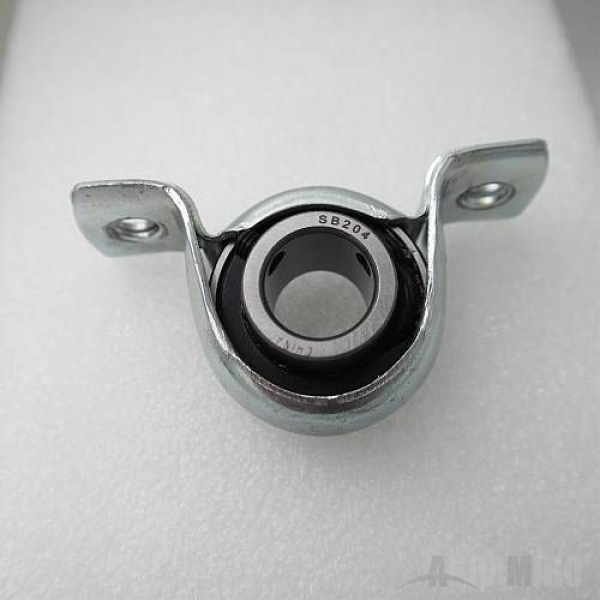

70

UNIT BEARING

SBPP204 조립후입고

UNIT BEARING

MZZZ0BEA089

Part picture
71

MICRO SWITCH

CNR-05H-03 ZIPPY-FOR COIN

MICRO SWITCH

MELE0MIC002

Part picture
71.1.4.1

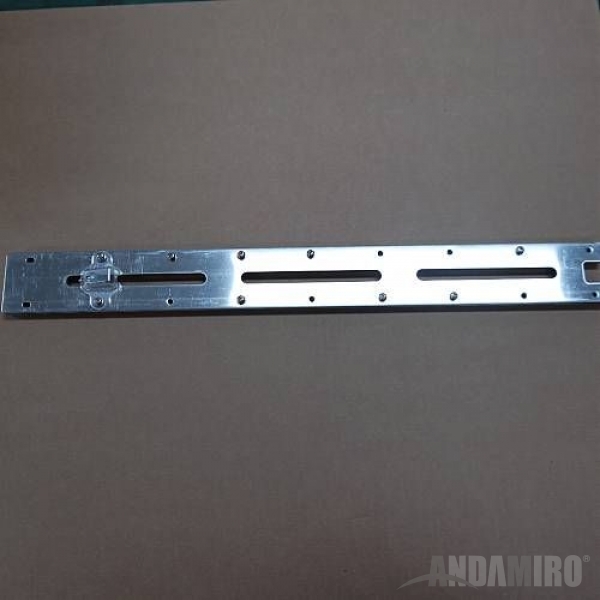

[MICRO SWITCH] ELEVATOR HOPPER BODY PRESS

A TYPE

[MICRO SWITCH] ELEVATOR HOPPER BODY PRESS

AZZZ0ELH005

Part picture
71.1.4.2

[MICRO SWITCH] ELEVATOR HOPPER BODY PRESS

A TYPE

[MICRO SWITCH] ELEVATOR HOPPER BODY PRESS

AZZZ0ELH005

Part picture

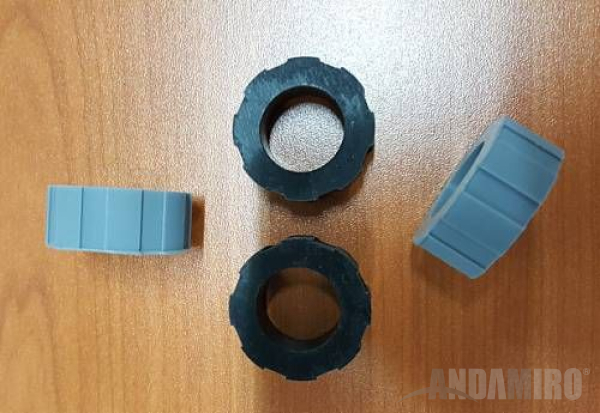

71.2.4

[MICRO SWITCH] FRONT ROLLER RUBBER HOUSING-B

실리콘

[MICRO SWITCH] FRONT ROLLER RUBBER HOUSING-B

MZZZ0RUB020

Part picture
72

VOLUME PCB ASS'Y

1 VOLUME

VOLUME PCB ASS'Y

AHM20PCB016

Part picture
73

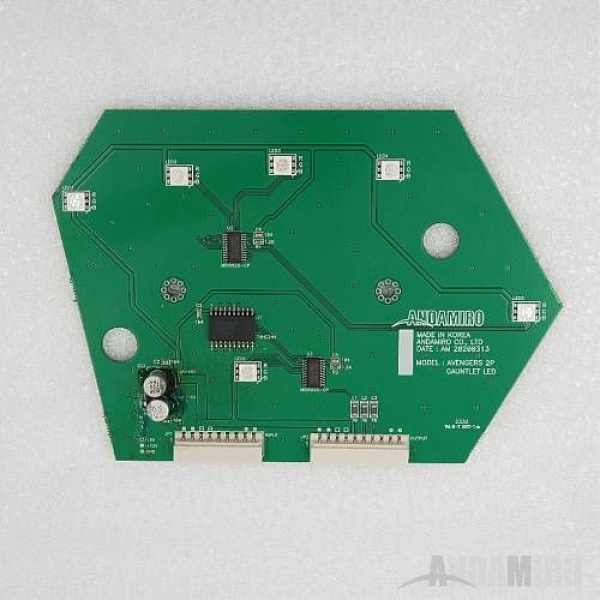

GAUNTLET LED PCB ASS'Y

AVENGERS 2P

GAUNTLET LED PCB ASS'Y

AAV20PCB002

Part picture

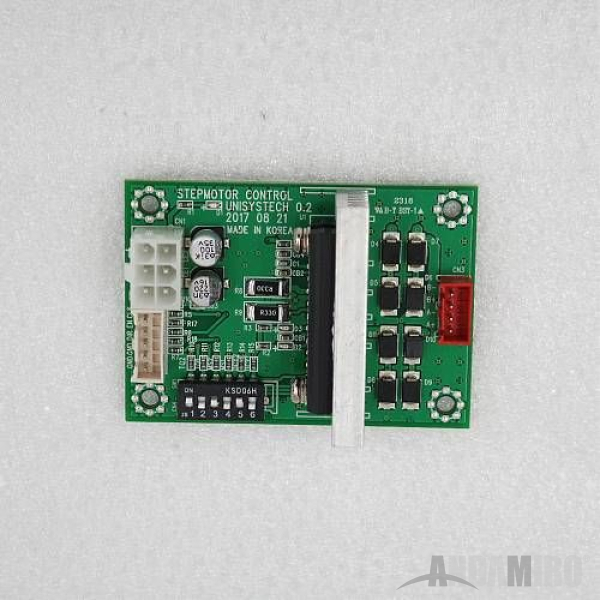

74

STEPPING MOTOR DRIVER PCB ASS'Y

TB6560AHQ_40V_3.5A

STEPPING MOTOR DRIVER PCB ASS'Y

ASBS0PCB001

Part picture
74.1.4

[STEPPING MOTOR DRIVER PCB ASS'Y] E_RAIL-REAR

ELEVATOR HOPPER

[STEPPING MOTOR DRIVER PCB ASS'Y] E_RAIL-REAR

AZZZ0ELH003

Part picture
74.2.4

[STEPPING MOTOR DRIVER PCB ASS'Y] BUTTON ASS'Y _ NO SWITCH

CL-2020 65 TYPE LED

[STEPPING MOTOR DRIVER PCB ASS'Y] BUTTON ASS'Y _ NO SWITCH

MZZZ0BUT101

Part picture

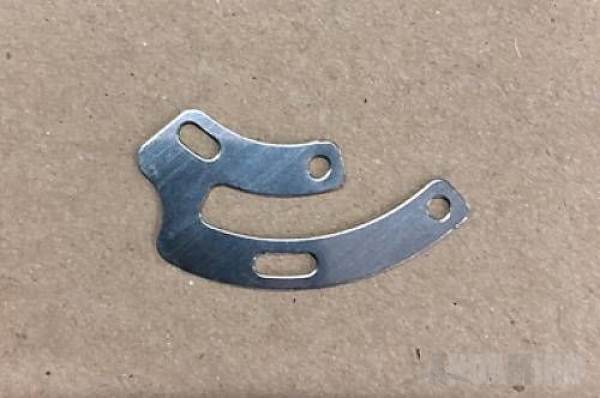

74.2.1

[STEPPING MOTOR DRIVER PCB ASS'Y] COIN GUIDE PLATE

MZZZ0ELH007-01

[STEPPING MOTOR DRIVER PCB ASS'Y] COIN GUIDE PLATE

MZZZ0ELH049

Part picture
74.2.2

[STEPPING MOTOR DRIVER PCB ASS'Y] COIN GUIDE PLATE

MZZZ0ELH007-01

[STEPPING MOTOR DRIVER PCB ASS'Y] COIN GUIDE PLATE

MZZZ0ELH049

Part picture
75

CARD HEAVY PUSH BKT

.

CARD HEAVY PUSH BKT

MSBP0MEP023

Part picture
75.2.2.1

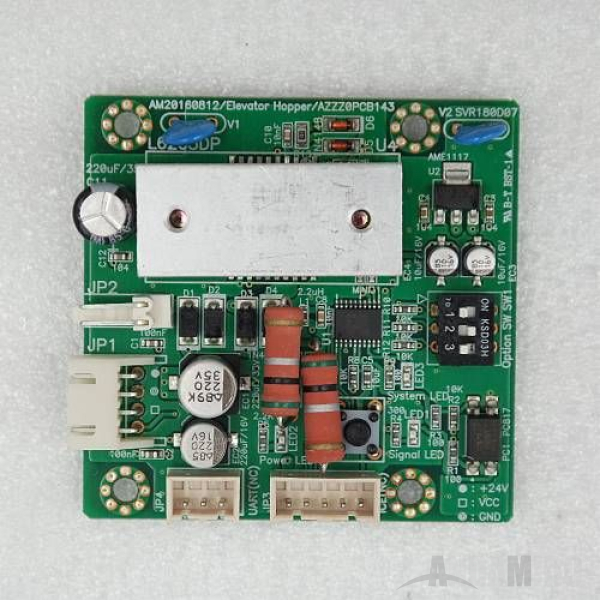

[CARD HEAVY PUSH BKT] ELEVATOR HOPPER PCB ASS'Y

COMMON_NUVOTON

[CARD HEAVY PUSH BKT] ELEVATOR HOPPER PCB ASS'Y

AZZZ0PCB143

Part picture
75.2.2.2

[CARD HEAVY PUSH BKT] ELEVATOR HOPPER PCB ASS'Y

COMMON_NUVOTON

[CARD HEAVY PUSH BKT] ELEVATOR HOPPER PCB ASS'Y

AZZZ0PCB143

Part picture
76

TARGET WHEEL LED PCB ASS'Y

AVENGERS 2P

TARGET WHEEL LED PCB ASS'Y

AAV20PCB004

Part picture
77

CODE CHANGE AZZZ0ASS115

CODE CHANGE AZZZ0ASS115

AZZZ0ASS081

Part picture
77.2.2.1

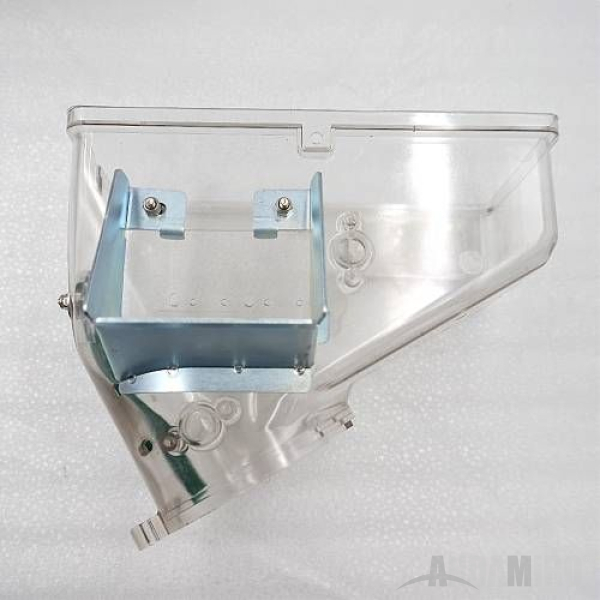

[CODE CHANGE AZZZ0ASS115] COIN BOWL BOX

.

[CODE CHANGE AZZZ0ASS115] COIN BOWL BOX

MZZZ0ELH030

Part picture
77.2.2.2

[CODE CHANGE AZZZ0ASS115] COIN BOWL BOX

.

[CODE CHANGE AZZZ0ASS115] COIN BOWL BOX

MZZZ0ELH030

Part picture
77.3.2

[CODE CHANGE AZZZ0ASS115] BEARING

F605ZZ

[CODE CHANGE AZZZ0ASS115] BEARING

MZZZ0BEA141

Part picture
77.3.2.1

[CODE CHANGE AZZZ0ASS115] MOVING PUSHER MAIN PANEL

.

[CODE CHANGE AZZZ0ASS115] MOVING PUSHER MAIN PANEL

MAV20MEP115

Part picture
78

LED PCB ASS'Y

MULTI MAGIC 070618

LED PCB ASS'Y

AMUM0PCB005

Part picture

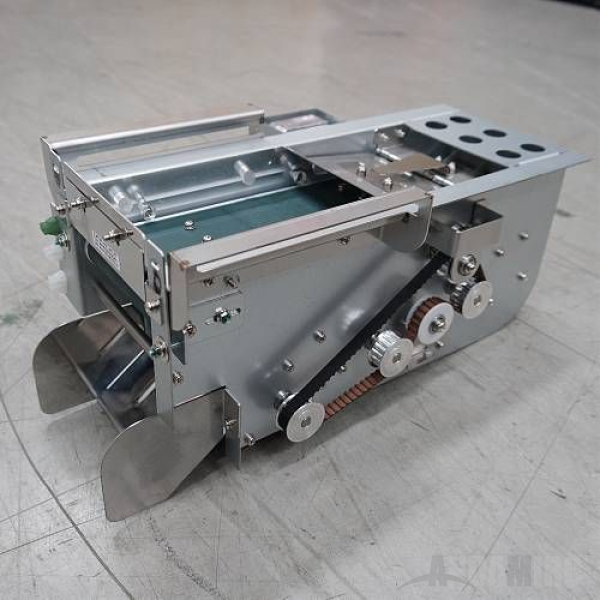

79

A_MEDAL ROLLER V3

CARD AV2 220215

A_MEDAL ROLLER V3

AAV20ASS055

Part picture
79.3.2.1

[A_MEDAL ROLLER V3] PUSHER BEARING GUIDE BKT

.

[A_MEDAL ROLLER V3] PUSHER BEARING GUIDE BKT

MAV20MEP119

Part picture
79.3.2.2

[A_MEDAL ROLLER V3] MOVING PUSHER MOTOR BKT

.

[A_MEDAL ROLLER V3] MOVING PUSHER MOTOR BKT

MAV20MEP116

Part picture
79.3.2.3

[A_MEDAL ROLLER V3] MOVING PUSHER MOTOR BKT

.

[A_MEDAL ROLLER V3] MOVING PUSHER MOTOR BKT

MAV20MEP116

Part picture
80

MOVING PUSHER LM FIX ASS'Y

.

MOVING PUSHER LM FIX ASS'Y

AAV20PAT081

Part picture
80.3.1.3

[MOVING PUSHER LM FIX ASS'Y] OUTLET GUIDE RAIL-A

.

[MOVING PUSHER LM FIX ASS'Y] OUTLET GUIDE RAIL-A

MZZZ0ELH012

Part picture
80.3.2.3

[MOVING PUSHER LM FIX ASS'Y] OUTLET GUIDE RAIL-A

.

[MOVING PUSHER LM FIX ASS'Y] OUTLET GUIDE RAIL-A

MZZZ0ELH012

Part picture
80.3.3.3

[MOVING PUSHER LM FIX ASS'Y] RAIL TENSION GUIDE-A

.

[MOVING PUSHER LM FIX ASS'Y] RAIL TENSION GUIDE-A

MZZZ0ELH013

Part picture
80.3.4.3

[MOVING PUSHER LM FIX ASS'Y] RAIL TENSION GUIDE-A

.

[MOVING PUSHER LM FIX ASS'Y] RAIL TENSION GUIDE-A

MZZZ0ELH013

Part picture
80.3.5.3

[MOVING PUSHER LM FIX ASS'Y] BODY FRAME OUTLET COVER

.

[MOVING PUSHER LM FIX ASS'Y] BODY FRAME OUTLET COVER

MZZZ0ELH003

Part picture
80.3.6.3

[MOVING PUSHER LM FIX ASS'Y] BODY FRAME OUTLET COVER

.

[MOVING PUSHER LM FIX ASS'Y] BODY FRAME OUTLET COVER

MZZZ0ELH003

Part picture
81

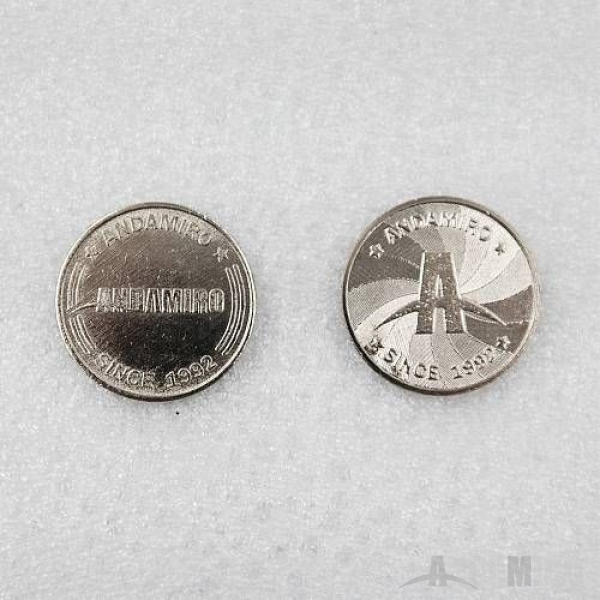

COIN MEDAL_NI

24.8 BRASS SILVER

COIN MEDAL_NI

AZZZ0MED001

Part picture
81.3.1.3

[COIN MEDAL_NI] MOVING PUSHER LM FIX BKT

.

[COIN MEDAL_NI] MOVING PUSHER LM FIX BKT

MAV20MEP124

Part picture
81.3.2.3

[COIN MEDAL_NI] MOVING PUSHER LM FIX BKT

.

[COIN MEDAL_NI] MOVING PUSHER LM FIX BKT

MAV20MEP124

Part picture
81.4.2

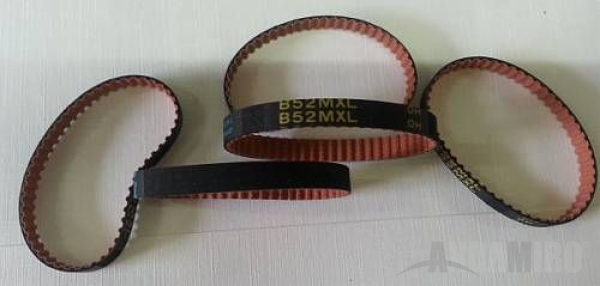

[COIN MEDAL_NI] TIMMING BELT

52MXL,W4.8 RUBBER

[COIN MEDAL_NI] TIMMING BELT

MZZZ0BEL018

Part picture
81.5.2

[COIN MEDAL_NI] CARD DISPENSOR I/O PCB ASS'Y

V3

[COIN MEDAL_NI] CARD DISPENSOR I/O PCB ASS'Y

AZZZ0PCB258

Part picture
81.6.2

[COIN MEDAL_NI] BEARING

F688ZZ

[COIN MEDAL_NI] BEARING

MZZZ0BEA076

Part picture
82

COUNTER OA127CL

W/ 2P WIRE_20CM

COUNTER OA127CL

MZZZ0COU002

Part picture

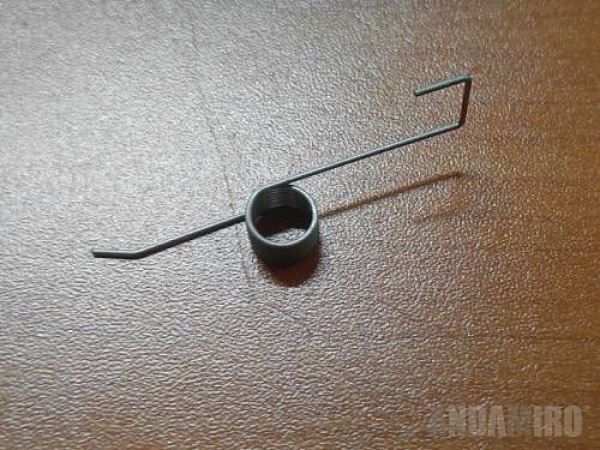

82.6.2.1

[COUNTER OA127CL] COIN BLOCK SPRING

SUS-0.7MM

[COUNTER OA127CL] COIN BLOCK SPRING

MZZZ0ELH045

Part picture
82.6.2.2

[COUNTER OA127CL] COIN BLOCK SPRING

SUS-0.7MM

[COUNTER OA127CL] COIN BLOCK SPRING

MZZZ0ELH045

Part picture
83

VOLUME KNOB

CAP BLUE

VOLUME KNOB

MELE0VOL007

Part picture
84

POWER SMPS

RSP-320-12

POWER SMPS

MELE0SMP109

Part picture
85

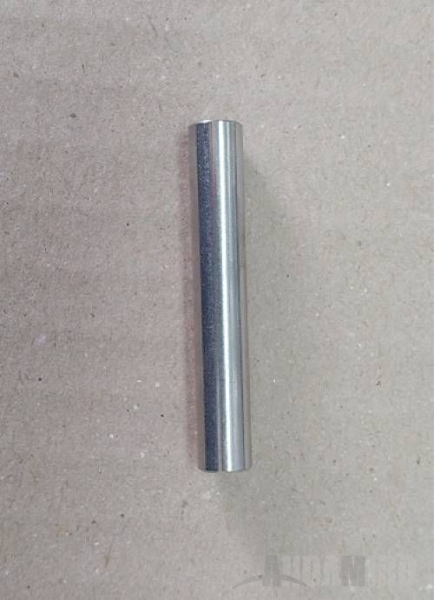

BILLBOARD SUPT BAR-A

.

BILLBOARD SUPT BAR-A

MAV20PRO008

Part picture

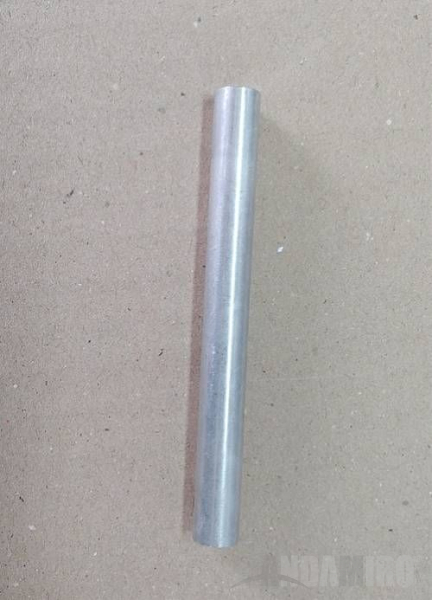

86

BIG BALL EV BKT SPACE

.

BIG BALL EV BKT SPACE

MAV20PRO013

Part picture
87

COIN BOWL BOX ASS'Y

AV2 REAR

COIN BOWL BOX ASS'Y

AZZZ0ASS112

Part picture
88

COIN BOWL BOX ASS'Y

AV2 FRONT

COIN BOWL BOX ASS'Y

AZZZ0ASS114

Part picture
88.1.2.2

[COIN BOWL BOX ASS'Y] BILLBOARD DECO MAIN SIDE-R

AV2 ACR_PRI

[COIN BOWL BOX ASS'Y] BILLBOARD DECO MAIN SIDE-R

AAV20ACP012

Part picture
88.2.2.2

[COIN BOWL BOX ASS'Y] BILLBOARD DECO MAIN SIDE-L

AV2 ACR_PRI

[COIN BOWL BOX ASS'Y] BILLBOARD DECO MAIN SIDE-L

AAV20ACP013

Part picture
88.3.2.2

[COIN BOWL BOX ASS'Y] BILLBOARD DECO MAIN

AV2 ACR_PRI

[COIN BOWL BOX ASS'Y] BILLBOARD DECO MAIN

AAV20ACP014

Part picture
88.4.2.2

[COIN BOWL BOX ASS'Y] BILLBOARD DECO MAIN COVER-B

AV2 ACR_PRI

[COIN BOWL BOX ASS'Y] BILLBOARD DECO MAIN COVER-B

AAV20ACP016

Part picture
88.5.2.2

[COIN BOWL BOX ASS'Y] BILLBOARD DECO MAIN COVER-A

AV2 ACR_PRI

[COIN BOWL BOX ASS'Y] BILLBOARD DECO MAIN COVER-A

AAV20ACP017

Part picture
88.6.2.2

[COIN BOWL BOX ASS'Y] BILLBOARD CABINET SIDE DECO ACRYL-L

AV2 ACR_PRI

[COIN BOWL BOX ASS'Y] BILLBOARD CABINET SIDE DECO ACRYL-L

AAV20ACP018

Part picture
88.7.2.2

[COIN BOWL BOX ASS'Y] BILLBOARD CABINET SIDE DECO ACRYL-R

AV2 ACR_PRI

[COIN BOWL BOX ASS'Y] BILLBOARD CABINET SIDE DECO ACRYL-R

AAV20ACP019

Part picture
88.8.2.2

[COIN BOWL BOX ASS'Y] TARGET WHEEL DECO COVER-D 1P

AV2 ACR_PRI

[COIN BOWL BOX ASS'Y] TARGET WHEEL DECO COVER-D 1P

AAV20ACP020

Part picture
88.9.2.2

[COIN BOWL BOX ASS'Y] TARGET WHEEL DECO COVER-D 2P

AV2 ACR_PRI

[COIN BOWL BOX ASS'Y] TARGET WHEEL DECO COVER-D 2P

AAV20ACP021

Part picture
88.10.2.2

[COIN BOWL BOX ASS'Y] TARGET COVER ACRYL

AV2 ACR_PRI

[COIN BOWL BOX ASS'Y] TARGET COVER ACRYL

AAV20ACP022

Part picture
88.11.2.2

[COIN BOWL BOX ASS'Y] BONUS WIN OUTLET LED ACRYL(STONE)

AV2 ACR_PRI

[COIN BOWL BOX ASS'Y] BONUS WIN OUTLET LED ACRYL(STONE)

AAV20ACP023

Part picture
88.12.2.2

[COIN BOWL BOX ASS'Y] BONUS WIN OUTLET LED ACRYL(TOKEN)

AV2 ACR_PRI

[COIN BOWL BOX ASS'Y] BONUS WIN OUTLET LED ACRYL(TOKEN)

AAV20ACP024

Part picture
88.13.2.2

[COIN BOWL BOX ASS'Y] BIG WHEEL WIN LED ACRYL

AV2 ACR_PRI

[COIN BOWL BOX ASS'Y] BIG WHEEL WIN LED ACRYL

AAV20ACP025

Part picture
88.14.2.2

[COIN BOWL BOX ASS'Y] BIG WHEEL OUTER DECO COVER B

AV2 ACR_PRI

[COIN BOWL BOX ASS'Y] BIG WHEEL OUTER DECO COVER B

AAV20ACP026

Part picture
88.15.2.2

[COIN BOWL BOX ASS'Y] BIG WHEEL OUTER DECO COVER D

AV2 ACR_PRI

[COIN BOWL BOX ASS'Y] BIG WHEEL OUTER DECO COVER D

AAV20ACP027

Part picture
88.16.2.2

[COIN BOWL BOX ASS'Y] BIG WHEEL OUTER DECO COVER E

AV2 ACR_PRI

[COIN BOWL BOX ASS'Y] BIG WHEEL OUTER DECO COVER E

AAV20ACP028

Part picture
88.17.2.2

[COIN BOWL BOX ASS'Y] SCORE BOARD PANEL CENTER

AV2 ACR_PRI

[COIN BOWL BOX ASS'Y] SCORE BOARD PANEL CENTER

AAV20ACP029

Part picture
88.18.2.2

[COIN BOWL BOX ASS'Y] GAUNTLET FRONT COVER ACRYL

AV2 ACR_PRI

[COIN BOWL BOX ASS'Y] GAUNTLET FRONT COVER ACRYL

AAV20ACP030

Part picture
88.19.2.2

[COIN BOWL BOX ASS'Y] GAUNTLET REAR COVER ACRYL

AV2 ACR_PRI

[COIN BOWL BOX ASS'Y] GAUNTLET REAR COVER ACRYL

AAV20ACP031

Part picture
88.20.2.2

[COIN BOWL BOX ASS'Y] BIG WHEEL SIDE DECO COVER 1P

AV2 ACR_PRI

[COIN BOWL BOX ASS'Y] BIG WHEEL SIDE DECO COVER 1P

AAV20ACP032

Part picture
88.21.2.2

[COIN BOWL BOX ASS'Y] BIG WHEEL SIDE DECO COVER 2P

AV2 ACR_PRI

[COIN BOWL BOX ASS'Y] BIG WHEEL SIDE DECO COVER 2P

AAV20ACP033

Part picture
88.22.2.2

[COIN BOWL BOX ASS'Y] BIG WHEEL OUTER DECO COVER H

AV2 ACR_PRI

[COIN BOWL BOX ASS'Y] BIG WHEEL OUTER DECO COVER H

AAV20ACP034

Part picture
88.23.2.2

[COIN BOWL BOX ASS'Y] BIG WHEEL OUTER DECO COVER I

AV2 ACR_PRI

[COIN BOWL BOX ASS'Y] BIG WHEEL OUTER DECO COVER I

AAV20ACP035

Part picture
88.24.2.2

[COIN BOWL BOX ASS'Y] TARGET WHEEL DECO COVER-A 1P

AV2 ACR_PRI

[COIN BOWL BOX ASS'Y] TARGET WHEEL DECO COVER-A 1P

AAV20ACP036

Part picture
88.25.2.2

[COIN BOWL BOX ASS'Y] TARGET WHEEL DECO COVER-A 2P

AV2 ACR_PRI

[COIN BOWL BOX ASS'Y] TARGET WHEEL DECO COVER-A 2P

AAV20ACP037

Part picture
88.26.2.2

[COIN BOWL BOX ASS'Y] BILLBOARD MAIN FRONT COVER

AV2 ACR_PRI

[COIN BOWL BOX ASS'Y] BILLBOARD MAIN FRONT COVER

AAV20ACP038

Part picture
88.27.2.2

[COIN BOWL BOX ASS'Y] CARD DOSPENSER DECO COVER

AV2

[COIN BOWL BOX ASS'Y] CARD DOSPENSER DECO COVER

AAV20ACP039

Part picture
88.28.2.2

[COIN BOWL BOX ASS'Y] BIG WHEEL OUTER DECO COVER G

AV2 ACR_PRI

[COIN BOWL BOX ASS'Y] BIG WHEEL OUTER DECO COVER G

AAV20ACP040

Part picture
88.29.2.2

[COIN BOWL BOX ASS'Y] CARD DISPENSER IO PCB COVER

AV2 ACR_PRI

[COIN BOWL BOX ASS'Y] CARD DISPENSER IO PCB COVER

AAV20ACP041

Part picture
88.30.2.2

[COIN BOWL BOX ASS'Y] BIG WHEEL OUTER DECO COVER J

AV2 ACR_PRI

[COIN BOWL BOX ASS'Y] BIG WHEEL OUTER DECO COVER J

AAV20ACP042

Part picture
88.31.2.2

[COIN BOWL BOX ASS'Y] BIG WHEEL OUTER DECO COVER K

AV2 ACR_PRI

[COIN BOWL BOX ASS'Y] BIG WHEEL OUTER DECO COVER K

AAV20ACP043

Part picture
88.32.2.2

[COIN BOWL BOX ASS'Y] TARGET WHEEL DECO COVER-A 1P(NJ향)

ACR 3T(배접)

[COIN BOWL BOX ASS'Y] TARGET WHEEL DECO COVER-A 1P(NJ향)

AAV20ACP054

Part picture
88.33.2.2

[COIN BOWL BOX ASS'Y] TARGET WHEEL DECO COVER-A 2P(NJ향)

ACR 3T(배접)

[COIN BOWL BOX ASS'Y] TARGET WHEEL DECO COVER-A 2P(NJ향)

AAV20ACP055

Part picture
88.34.2.2

[COIN BOWL BOX ASS'Y] BILLBOARD MAIN FRONT COVER

1500

[COIN BOWL BOX ASS'Y] BILLBOARD MAIN FRONT COVER

AAV20ACP075

Part picture
88.34.2.1

[COIN BOWL BOX ASS'Y] MOVING PUSHER LM BAR

.

[COIN BOWL BOX ASS'Y] MOVING PUSHER LM BAR

MAV20PRO043

Part picture
88.35.2

[COIN BOWL BOX ASS'Y] MOVING PUSHER LM BAR

.

[COIN BOWL BOX ASS'Y] MOVING PUSHER LM BAR

MAV20PRO043

Part picture
89

A_CARD DISPENSER

COMMON D-1

A_CARD DISPENSER

AZZZ0ASS115

Part picture
90

POWER SMPS

LRS 150F-5

POWER SMPS

MELE0SMP096

Part picture
90.1.2

[POWER SMPS] GAME VALUE SHEET UK-B

.

[POWER SMPS] GAME VALUE SHEET UK-B

MAV20SHE027

Part picture
90.1.1

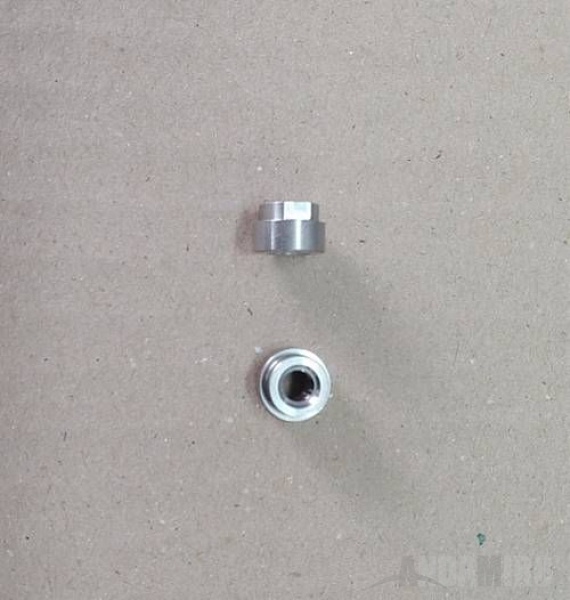

[POWER SMPS] MOVING MOTOR ROTATE SHAFT-B

.

[POWER SMPS] MOVING MOTOR ROTATE SHAFT-B

MAV20PRO025

Part picture
90.1.2

[POWER SMPS] MOVING MOTOR ROTATE SHAFT-B

.

[POWER SMPS] MOVING MOTOR ROTATE SHAFT-B

MAV20PRO025

Part picture
90.1.3

[POWER SMPS] MOVING MOTOR ROTATE SHAFT-B

.

[POWER SMPS] MOVING MOTOR ROTATE SHAFT-B

MAV20PRO025

Part picture
91

MOVING MOTOR ROTATE SHAFT-B

.

MOVING MOTOR ROTATE SHAFT-B

MAV20PRO025

Part picture
91.1.3

[MOVING MOTOR ROTATE SHAFT-B] SIDE SHEET L

.

[MOVING MOTOR ROTATE SHAFT-B] SIDE SHEET L

MAV20SHE001

Part picture
91.2.3

[MOVING MOTOR ROTATE SHAFT-B] SIDE SHEET R

.

[MOVING MOTOR ROTATE SHAFT-B] SIDE SHEET R

MAV20SHE002

Part picture
91.3.3

[MOVING MOTOR ROTATE SHAFT-B] TICKET DOOR SHEET 1P

.

[MOVING MOTOR ROTATE SHAFT-B] TICKET DOOR SHEET 1P

MAV20SHE004

Part picture
91.4.3

[MOVING MOTOR ROTATE SHAFT-B] SCORE BOARD PANEL-R

AV2 ACR_PRI

[MOVING MOTOR ROTATE SHAFT-B] SCORE BOARD PANEL-R

AAV20ACP002

Part picture
91.5.3

[MOVING MOTOR ROTATE SHAFT-B] TARGET WHEEL DECO COVER-B

AV2 ACR_PRI

[MOVING MOTOR ROTATE SHAFT-B] TARGET WHEEL DECO COVER-B

AAV20ACP003

Part picture
91.6.3

[MOVING MOTOR ROTATE SHAFT-B] TARGET WHEEL DECO COVER-C

AV2 ACR_PRI

[MOVING MOTOR ROTATE SHAFT-B] TARGET WHEEL DECO COVER-C

AAV20ACP004

Part picture
91.7.3

[MOVING MOTOR ROTATE SHAFT-B] MEDAL EV HOPPER FRONT DECO COVER-L

AV2 ACR_PRI

[MOVING MOTOR ROTATE SHAFT-B] MEDAL EV HOPPER FRONT DECO COVER-L

AAV20ACP005

Part picture
91.8.3

[MOVING MOTOR ROTATE SHAFT-B] MEDAL EV HOPPER FRONT DECO COVER-R

AV2 ACR_PRI

[MOVING MOTOR ROTATE SHAFT-B] MEDAL EV HOPPER FRONT DECO COVER-R

AAV20ACP006

Part picture
91.9.3

[MOVING MOTOR ROTATE SHAFT-B] BUTTON ACRYL

AV2 ACR_PRI

[MOVING MOTOR ROTATE SHAFT-B] BUTTON ACRYL

AAV20ACP007

Part picture
91.10.3

[MOVING MOTOR ROTATE SHAFT-B] SP BOX DECO COVER-L

AV2 ACR_PRI

[MOVING MOTOR ROTATE SHAFT-B] SP BOX DECO COVER-L

AAV20ACP008

Part picture
91.11.3

[MOVING MOTOR ROTATE SHAFT-B] SP BOX DECO COVER-R

AV2 ACR_PRI

[MOVING MOTOR ROTATE SHAFT-B] SP BOX DECO COVER-R

AAV20ACP009

Part picture
91.12.3

[MOVING MOTOR ROTATE SHAFT-B] BILLBOARD SIDE DECO-L

AV2 ACR_PRI

[MOVING MOTOR ROTATE SHAFT-B] BILLBOARD SIDE DECO-L

AAV20ACP010

Part picture
91.13.3

[MOVING MOTOR ROTATE SHAFT-B] SCORE BOARD PANEL-L

AV2 ACR_PRI

[MOVING MOTOR ROTATE SHAFT-B] SCORE BOARD PANEL-L

AAV20ACP001

Part picture
91.14.3

[MOVING MOTOR ROTATE SHAFT-B] FRONT DOOR SHEET 1P

.

[MOVING MOTOR ROTATE SHAFT-B] FRONT DOOR SHEET 1P

MAV20SHE003

Part picture
91.15.3

[MOVING MOTOR ROTATE SHAFT-B] CABINET FRONT SHEET 1P

.

[MOVING MOTOR ROTATE SHAFT-B] CABINET FRONT SHEET 1P

MAV20SHE005

Part picture
91.16.3

[MOVING MOTOR ROTATE SHAFT-B] BILLBOARD SIDE DECO-L

AV2 ACR_PRI

[MOVING MOTOR ROTATE SHAFT-B] BILLBOARD SIDE DECO-L

AAV20ACP011

Part picture
91.17.3

[MOVING MOTOR ROTATE SHAFT-B] BILL COVER SHEET 1P

.

[MOVING MOTOR ROTATE SHAFT-B] BILL COVER SHEET 1P

MAV20SHE006

Part picture
91.18.3

[MOVING MOTOR ROTATE SHAFT-B] FRONT DOOR SHEET 2P

.

[MOVING MOTOR ROTATE SHAFT-B] FRONT DOOR SHEET 2P

MAV20SHE007

Part picture
91.19.3

[MOVING MOTOR ROTATE SHAFT-B] TICKET DOOR SHEET 2P

.

[MOVING MOTOR ROTATE SHAFT-B] TICKET DOOR SHEET 2P

MAV20SHE008

Part picture
91.20.3

[MOVING MOTOR ROTATE SHAFT-B] CABINET FRONT SHEET 2P

.

[MOVING MOTOR ROTATE SHAFT-B] CABINET FRONT SHEET 2P

MAV20SHE009

Part picture
91.21.3

[MOVING MOTOR ROTATE SHAFT-B] BILL COVER SHEET 2P

.

[MOVING MOTOR ROTATE SHAFT-B] BILL COVER SHEET 2P

MAV20SHE010

Part picture
91.22.3

[MOVING MOTOR ROTATE SHAFT-B] GAME VALUE SHEET(INSERT COIN)

.

[MOVING MOTOR ROTATE SHAFT-B] GAME VALUE SHEET(INSERT COIN)

MAV20SHE011

Part picture
91.23.3

[MOVING MOTOR ROTATE SHAFT-B] GAME VALUE SHEET(INSERT COIN-A)

.

[MOVING MOTOR ROTATE SHAFT-B] GAME VALUE SHEET(INSERT COIN-A)

MAV20SHE012

Part picture
91.24.3

[MOVING MOTOR ROTATE SHAFT-B] GAME VALUE SHEET(SWIPE CARD)

.

[MOVING MOTOR ROTATE SHAFT-B] GAME VALUE SHEET(SWIPE CARD)

MAV20SHE013

Part picture
91.25.3

[MOVING MOTOR ROTATE SHAFT-B] GAME VALUE SHEET(SWIPE CARD-A)

.

[MOVING MOTOR ROTATE SHAFT-B] GAME VALUE SHEET(SWIPE CARD-A)

MAV20SHE014

Part picture
91.26.3

[MOVING MOTOR ROTATE SHAFT-B] BUTTON SHEET

.

[MOVING MOTOR ROTATE SHAFT-B] BUTTON SHEET

MAV20SHE015

Part picture
91.27.3

[MOVING MOTOR ROTATE SHAFT-B] SLOT WHEEL OUTER DECO SHEET

.

[MOVING MOTOR ROTATE SHAFT-B] SLOT WHEEL OUTER DECO SHEET

MAV20SHE016

Part picture
91.28.3

[MOVING MOTOR ROTATE SHAFT-B] GAME INSTRUCTION SHEET(CARD)

.

[MOVING MOTOR ROTATE SHAFT-B] GAME INSTRUCTION SHEET(CARD)

MAV20SHE019

Part picture
91.29.3

[MOVING MOTOR ROTATE SHAFT-B] COIN COVER SHEET 1P

.

[MOVING MOTOR ROTATE SHAFT-B] COIN COVER SHEET 1P

MAV20SHE023

Part picture
91.30.3

[MOVING MOTOR ROTATE SHAFT-B] COIN COVER SHEET 2P

.

[MOVING MOTOR ROTATE SHAFT-B] COIN COVER SHEET 2P

MAV20SHE024

Part picture
91.31.3

[MOVING MOTOR ROTATE SHAFT-B] GAME VALUE SHEET UK-A

.

[MOVING MOTOR ROTATE SHAFT-B] GAME VALUE SHEET UK-A

MAV20SHE026

Part picture
91.32.3

[MOVING MOTOR ROTATE SHAFT-B] GAME VALUE SHEET UK-C

.

[MOVING MOTOR ROTATE SHAFT-B] GAME VALUE SHEET UK-C

MAV20SHE028

Part picture
91.33.3

[MOVING MOTOR ROTATE SHAFT-B] INSTALL CARD READER SHEET

.

[MOVING MOTOR ROTATE SHAFT-B] INSTALL CARD READER SHEET

MAV20SHE030

Part picture
91.34.3

[MOVING MOTOR ROTATE SHAFT-B] SLOT WHEEL OUTER DECO SHEET(NJ버젼)

.

[MOVING MOTOR ROTATE SHAFT-B] SLOT WHEEL OUTER DECO SHEET(NJ버젼)

MAV20SHE045

Part picture
91.35.3

[MOVING MOTOR ROTATE SHAFT-B] BILLBOARD DECO MAIN COVER-A

AV2 ACR_PRI

[MOVING MOTOR ROTATE SHAFT-B] BILLBOARD DECO MAIN COVER-A

AAV20ACP015

Part picture
91.36.3

[MOVING MOTOR ROTATE SHAFT-B] TARGET WHEEL DECO COVER-A 1P(NON CARD)

AV2 ACR_PRI

[MOVING MOTOR ROTATE SHAFT-B] TARGET WHEEL DECO COVER-A 1P(NON CARD)

AAV20ACP044

Part picture
91.37.3

[MOVING MOTOR ROTATE SHAFT-B] TARGET WHEEL DECO COVER-A 2P(NON CARD)

AV2 ACR_PRI

[MOVING MOTOR ROTATE SHAFT-B] TARGET WHEEL DECO COVER-A 2P(NON CARD)

AAV20ACP045

Part picture
91.38.3

[MOVING MOTOR ROTATE SHAFT-B] BILLBOARD MAIN FRONT COVER(NON CARD)

AV2 ACR_PRI

[MOVING MOTOR ROTATE SHAFT-B] BILLBOARD MAIN FRONT COVER(NON CARD)

AAV20ACP046

Part picture
91.39.3

[MOVING MOTOR ROTATE SHAFT-B] BIG WHEEL OUTER DECO COVER A

AV2 ACR_PRI

[MOVING MOTOR ROTATE SHAFT-B] BIG WHEEL OUTER DECO COVER A

AAV20ACP047

Part picture
91.40.3

[MOVING MOTOR ROTATE SHAFT-B] BIG WHEEL OUTER DECO COVER C

AV2 ACR_PRI

[MOVING MOTOR ROTATE SHAFT-B] BIG WHEEL OUTER DECO COVER C

AAV20ACP048

Part picture
91.41.3

[MOVING MOTOR ROTATE SHAFT-B] BIG WHEEL OUTER DECO COVER F

AV2 ACR_PRI

[MOVING MOTOR ROTATE SHAFT-B] BIG WHEEL OUTER DECO COVER F

AAV20ACP049

Part picture
91.41.3.1

[MOVING MOTOR ROTATE SHAFT-B] MEDAL TENSION GUIDE BLOCK

.

[MOVING MOTOR ROTATE SHAFT-B] MEDAL TENSION GUIDE BLOCK

MZZZ0ELH008

Part picture
91.41.4

[MOVING MOTOR ROTATE SHAFT-B] MEDAL TENSION GUIDE BLOCK

.

[MOVING MOTOR ROTATE SHAFT-B] MEDAL TENSION GUIDE BLOCK

MZZZ0ELH008

Part picture
91.41.4.1

[MOVING MOTOR ROTATE SHAFT-B] MEDAL TENSION GUIDE BLOCK

.

[MOVING MOTOR ROTATE SHAFT-B] MEDAL TENSION GUIDE BLOCK

MZZZ0ELH008

Part picture
91.41.5

[MOVING MOTOR ROTATE SHAFT-B] MEDAL TENSION GUIDE BLOCK

.

[MOVING MOTOR ROTATE SHAFT-B] MEDAL TENSION GUIDE BLOCK

MZZZ0ELH008

Part picture
91.42.5

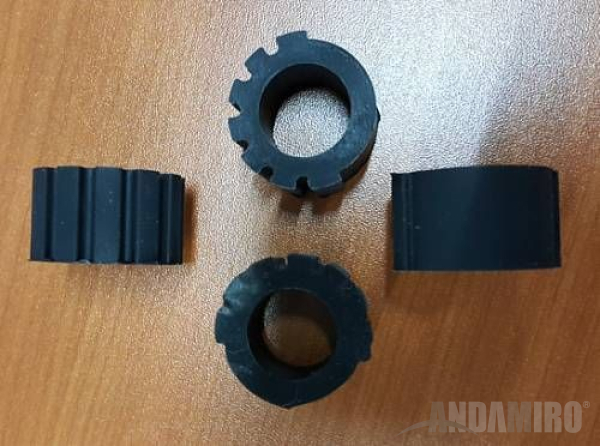

[MOVING MOTOR ROTATE SHAFT-B] CARD DISPENSER RUBBER HOUSING-B

실리콘

[MOVING MOTOR ROTATE SHAFT-B] CARD DISPENSER RUBBER HOUSING-B

MZZZ0RUB018

Part picture
91.43.5

[MOVING MOTOR ROTATE SHAFT-B] WHEEL COIN INLET RAIL ACRYL

.

[MOVING MOTOR ROTATE SHAFT-B] WHEEL COIN INLET RAIL ACRYL

MAV20ACR007

Part picture
91.44.5

[MOVING MOTOR ROTATE SHAFT-B] TARGET WHEEL BASE ACRYL

.

[MOVING MOTOR ROTATE SHAFT-B] TARGET WHEEL BASE ACRYL

MAV20ACR008

Part picture
91.44.5.1

[MOVING MOTOR ROTATE SHAFT-B] MOVING PUSHER ROTATE GUIDE

.

[MOVING MOTOR ROTATE SHAFT-B] MOVING PUSHER ROTATE GUIDE

MAV20ACR010

Part picture
91.45.5

[MOVING MOTOR ROTATE SHAFT-B] MOVING PUSHER ROTATE GUIDE

.

[MOVING MOTOR ROTATE SHAFT-B] MOVING PUSHER ROTATE GUIDE

MAV20ACR010

Part picture
91.46.5

[MOVING MOTOR ROTATE SHAFT-B] BIG BALL INLET GUIDE RAIL ACRYL-A

.

[MOVING MOTOR ROTATE SHAFT-B] BIG BALL INLET GUIDE RAIL ACRYL-A

MAV20ACR041

Part picture
91.47.5

[MOVING MOTOR ROTATE SHAFT-B] BIG BALL INLET GUIDE RAIL ACRYL-B

.

[MOVING MOTOR ROTATE SHAFT-B] BIG BALL INLET GUIDE RAIL ACRYL-B

MAV20ACR042

Part picture
91.48.5

[MOVING MOTOR ROTATE SHAFT-B] BIG BALL INLET GUIDE RAIL ACRYL-C

.

[MOVING MOTOR ROTATE SHAFT-B] BIG BALL INLET GUIDE RAIL ACRYL-C

MAV20ACR043

Part picture
91.49.5

[MOVING MOTOR ROTATE SHAFT-B] COIN INLET GUIDE RAIL OUTER COVER

.

[MOVING MOTOR ROTATE SHAFT-B] COIN INLET GUIDE RAIL OUTER COVER

MAV20ACR051

Part picture
91.50.5

[MOVING MOTOR ROTATE SHAFT-B] SETUP PANEL BKT PET COVER

.

[MOVING MOTOR ROTATE SHAFT-B] SETUP PANEL BKT PET COVER

MSBP0ACR040

Part picture
91.51.5

[MOVING MOTOR ROTATE SHAFT-B] MEDAL ROLLER SIDE GUIDE BLOCK

.

[MOVING MOTOR ROTATE SHAFT-B] MEDAL ROLLER SIDE GUIDE BLOCK

MAV20ACR057

Part picture
91.52.5

[MOVING MOTOR ROTATE SHAFT-B] MEDAL ROLLER SIDE GUIDE BLOCK

.

[MOVING MOTOR ROTATE SHAFT-B] MEDAL ROLLER SIDE GUIDE BLOCK

MAV20ACR057

Part picture
91.53.5

[MOVING MOTOR ROTATE SHAFT-B] MEDAL ROLLER SIDE GUIDE BLOCK_MIR

.

[MOVING MOTOR ROTATE SHAFT-B] MEDAL ROLLER SIDE GUIDE BLOCK_MIR

MAV20ACR058

Part picture
91.54.5

[MOVING MOTOR ROTATE SHAFT-B] MEDAL ROLLER SIDE GUIDE BLOCK_MIR

.

[MOVING MOTOR ROTATE SHAFT-B] MEDAL ROLLER SIDE GUIDE BLOCK_MIR

MAV20ACR058

Part picture
91.55.5

[MOVING MOTOR ROTATE SHAFT-B] THANOS DECO FRONT COVER

AV2 ACR_PRI

[MOVING MOTOR ROTATE SHAFT-B] THANOS DECO FRONT COVER

AAV20ACP050

Part picture
91.56.5

[MOVING MOTOR ROTATE SHAFT-B] THANOS DECO MAIN COVER

AV2 ACR_PRI

[MOVING MOTOR ROTATE SHAFT-B] THANOS DECO MAIN COVER

AAV20ACP051

Part picture
91.57.5

[MOVING MOTOR ROTATE SHAFT-B] LED PCB COVER

.

[MOVING MOTOR ROTATE SHAFT-B] LED PCB COVER

MAV20ACR070

Part picture
92

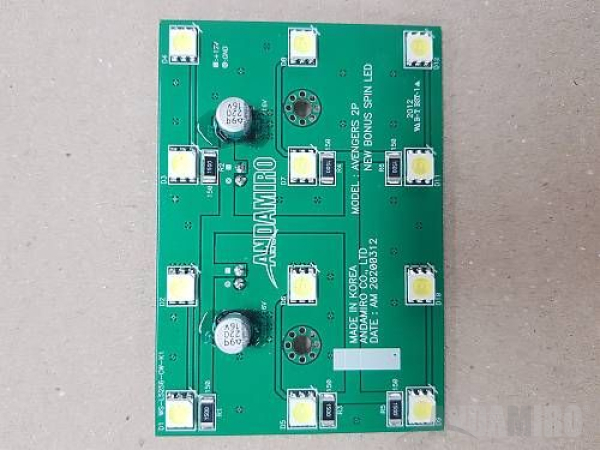

NEW BONUS SPIN LED PCB ASS'Y

AVENGERS 2P

NEW BONUS SPIN LED PCB ASS'Y

AAV20PCB003

Part picture
93

SMPS BKT

MEANWELL

SMPS BKT

MZZZ0MEP048

Part picture
93.57.5.1

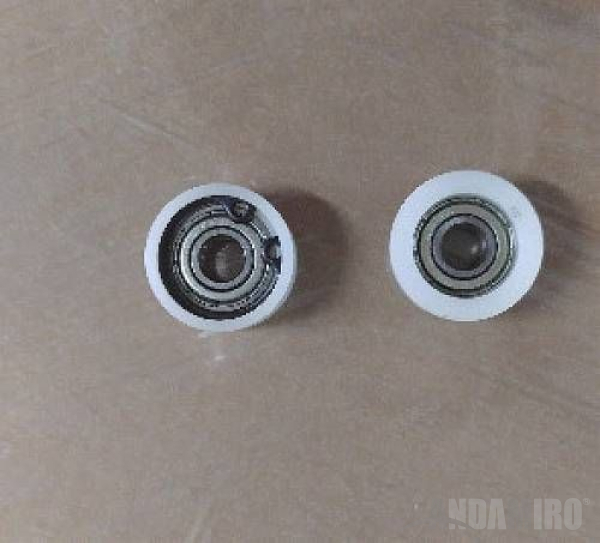

[SMPS BKT] PUSHER BEARING

.

[SMPS BKT] PUSHER BEARING

MSBP0PRO002

Part picture
93.58.5

[SMPS BKT] TABLE TILT BOLCK-A

.

[SMPS BKT] TABLE TILT BOLCK-A

MAV20ACR054

Part picture
93.59.5

[SMPS BKT] TABLE TILT BLOCK-B

.

[SMPS BKT] TABLE TILT BLOCK-B

MAV20ACR055

Part picture
93.60.5

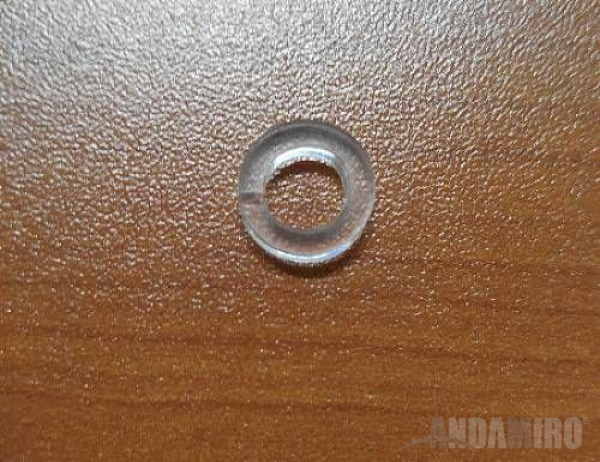

[SMPS BKT] FRONT ROLLER SHAFT DUSH

.

[SMPS BKT] FRONT ROLLER SHAFT DUSH

MSBP0ACR056

Part picture
94

TIMMING PULLEY

MXL-29,분말야금

TIMMING PULLEY

MZZZ0MOL002

Part picture
94.1.5

[TIMMING PULLEY] TIMMING BELT TENSION ROLLER

.

[TIMMING PULLEY] TIMMING BELT TENSION ROLLER

MSBP0PRO017

Part picture
94.2.5

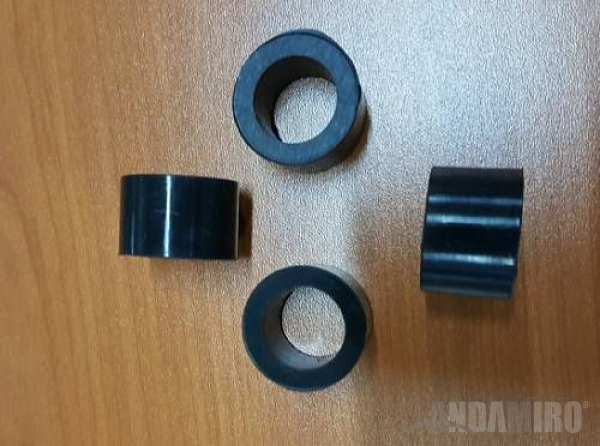

[TIMMING PULLEY] CARD DISPENSER RUBBER HOUSING-A

[TIMMING PULLEY] CARD DISPENSER RUBBER HOUSING-A

MZZZ0RUB017

Part picture
94.3.5

[TIMMING PULLEY] BIG BALL INLET GUIDE RAIL

.

[TIMMING PULLEY] BIG BALL INLET GUIDE RAIL

MAV20MEP112

Part picture
94.3.5.1

[TIMMING PULLEY] ELEVATOR SENSOR ASS'Y

.

[TIMMING PULLEY] ELEVATOR SENSOR ASS'Y

AZZZ0PCB173

Part picture
94.3.5.2

[TIMMING PULLEY] ELEVATOR SENSOR ASS'Y

.

[TIMMING PULLEY] ELEVATOR SENSOR ASS'Y

AZZZ0PCB173

Part picture
94.4.5

[TIMMING PULLEY] BALL ROLLER RINK SHAFT

.

[TIMMING PULLEY] BALL ROLLER RINK SHAFT

MAV20PRO039

Part picture
95

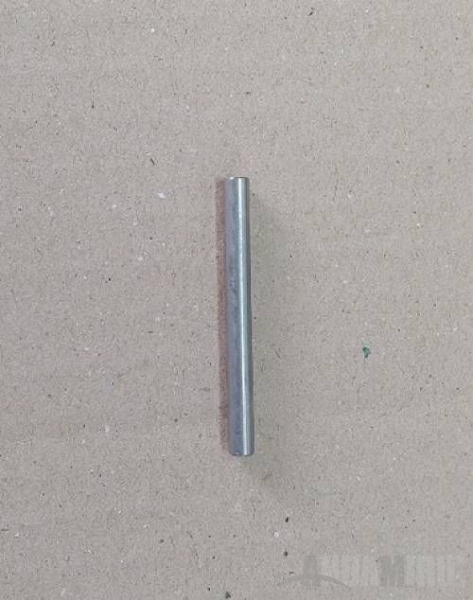

BIG BALL SCREW OUTLET BAR-B

.

BIG BALL SCREW OUTLET BAR-B

MAV20PRO051

Part picture
96

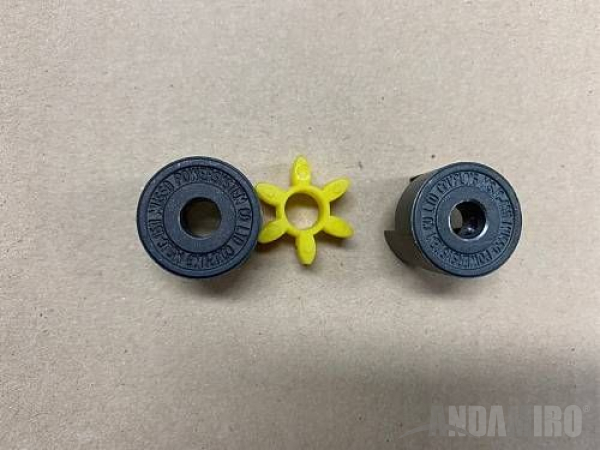

CODE CHANGE AZZZ0COP003

8*8_M5_TAB120

CODE CHANGE AZZZ0COP003

AZZZ0COP002

Part picture
96.1.5

[CODE CHANGE AZZZ0COP003] MOTOR

KGC-0240-3448S2_24V ISF TYPE

[CODE CHANGE AZZZ0COP003] MOTOR

MZZZ0MOT173

Part picture
97

MEDAL ROLLER-C ASS'Y

MAV20PRO003,62

MEDAL ROLLER-C ASS'Y

AAV20PRO005

Part picture
98

WARNING STICKER (ETL 유리 파손)

110*35

WARNING STICKER (ETL 유리 파손)

MZZZ0STI088

Part picture
98.1.5.1

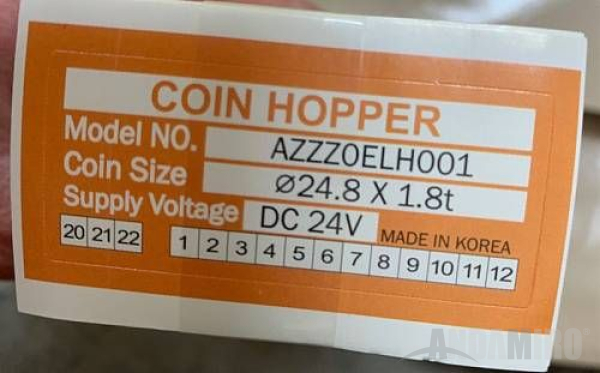

[WARNING STICKER (ETL 유리 파손)] COIN HOPPER LABEL REV2

.

[WARNING STICKER (ETL 유리 파손)] COIN HOPPER LABEL REV2

MZZZ0STI100

Part picture
98.1.5.2

[WARNING STICKER (ETL 유리 파손)] COIN HOPPER LABEL REV2

.

[WARNING STICKER (ETL 유리 파손)] COIN HOPPER LABEL REV2

MZZZ0STI100

Part picture
98.1.5.3

[WARNING STICKER (ETL 유리 파손)] COIN NOTICE STICKER

.

[WARNING STICKER (ETL 유리 파손)] COIN NOTICE STICKER

MZZZ0STI147

Part picture
98.1.5.4

[WARNING STICKER (ETL 유리 파손)] COIN NOTICE STICKER

.

[WARNING STICKER (ETL 유리 파손)] COIN NOTICE STICKER

MZZZ0STI147

Part picture
98.2.5

[WARNING STICKER (ETL 유리 파손)] COIN NOTICE STICKER

.

[WARNING STICKER (ETL 유리 파손)] COIN NOTICE STICKER

MZZZ0STI147

Part picture
98.3.5

[WARNING STICKER (ETL 유리 파손)] COIN NOTICE STICKER

.

[WARNING STICKER (ETL 유리 파손)] COIN NOTICE STICKER

MZZZ0STI147

Part picture
99

WARNING SHEET

ETL 70*50

WARNING SHEET

MZZZ0STI091

Part picture
100

MEP PART A 130종

AV2

MEP PART A 130종

AAV20PAT009

Part picture
100.3.5.1

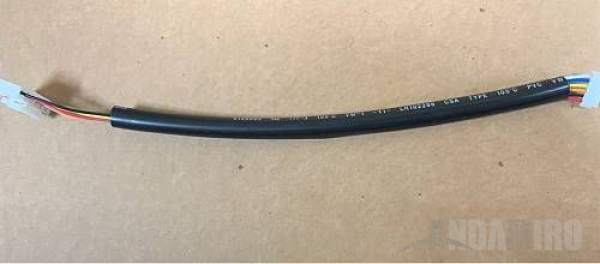

[MEP PART A 130종] BLDC HARNESS

KGE-2140-3640-S1

[MEP PART A 130종] BLDC HARNESS

MZZZ0HAN086

Part picture
100.3.5.2

[MEP PART A 130종] BLDC HARNESS

KGE-2140-3640-S1

[MEP PART A 130종] BLDC HARNESS

MZZZ0HAN086

Part picture
100.4.5

[MEP PART A 130종] BLDC HARNESS

KGE-2140-3640-S1

[MEP PART A 130종] BLDC HARNESS

MZZZ0HAN086

Part picture
101

A_MOVING PUSHER ASS'Y

AV2

A_MOVING PUSHER ASS'Y

AAV20ASS066

Part picture
101.1.5

[A_MOVING PUSHER ASS'Y] MOVING PUSHER BASE FRAME ASS'Y

AV2

[A_MOVING PUSHER ASS'Y] MOVING PUSHER BASE FRAME ASS'Y

AAV20ASS064

Part picture
101.2.5

[A_MOVING PUSHER ASS'Y] PUSHER BEARING GUIDE ASS'Y

AV2

[A_MOVING PUSHER ASS'Y] PUSHER BEARING GUIDE ASS'Y

AAV20ASS063

Part picture
101.3.5

[A_MOVING PUSHER ASS'Y] MOVING PUSHER MAIN PANEL ASS'Y

AV2

[A_MOVING PUSHER ASS'Y] MOVING PUSHER MAIN PANEL ASS'Y

AAV20ASS062

Part picture
102

MOVING PUSHER MOTOR ASS'Y

AV2

MOVING PUSHER MOTOR ASS'Y

AAV20ASS065

Part picture
102.1.5

[MOVING PUSHER MOTOR ASS'Y] MOVING PUSHER MOTOR ASS'Y

AV2

[MOVING PUSHER MOTOR ASS'Y] MOVING PUSHER MOTOR ASS'Y

AAV20ASS065

Part picture
103

SPOT LED PCB ASS'Y

WHITE

SPOT LED PCB ASS'Y

ABAP0PCB008

Part picture
104

WEB ACR ACP SHEET PART

AV2

WEB ACR ACP SHEET PART

AAV20PAT089

Part picture
104.1.5

[WEB ACR ACP SHEET PART] TIMMING BELT TENSION GUIDE BKT

.

[WEB ACR ACP SHEET PART] TIMMING BELT TENSION GUIDE BKT

MSBP0MEP153

Part picture
104.1.1

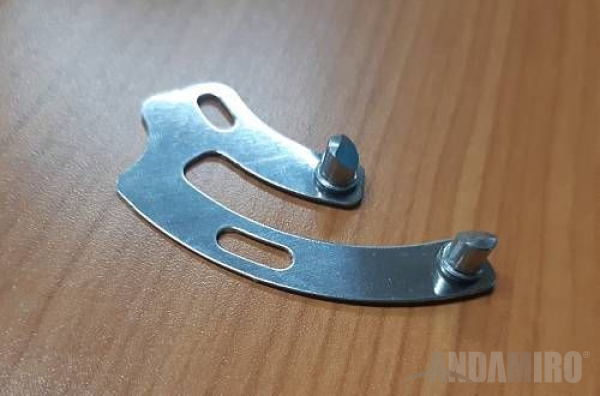

[WEB ACR ACP SHEET PART] COIN GUIDE PLATE

.

[WEB ACR ACP SHEET PART] COIN GUIDE PLATE

MZZZ0ELH007

Part picture
104.1.2

[WEB ACR ACP SHEET PART] COIN GUIDE PLATE

.

[WEB ACR ACP SHEET PART] COIN GUIDE PLATE

MZZZ0ELH007

Part picture
105

MANUAL AVENGERS 2

AVENGERS 2

MANUAL AVENGERS 2

MAV20MAN001

Part picture
106

SIDE GLASS

467*837*5T

SIDE GLASS

MAV20GLA003

Part picture
107

FRONT GLASS

834*872*5T

FRONT GLASS

MAV20GLA001

Part picture
108

CABINET EDGE MOLD 목상 20T용 2T_15.5H

1900MM

CABINET EDGE MOLD 목상 20T용 2T_15.5H

MZZZ0RUB048

Part picture
108.1.2

[CABINET EDGE MOLD 목상 20T용 2T_15.5H ] AV2 CPU PCB ASS'Y

.

[CABINET EDGE MOLD 목상 20T용 2T_15.5H ] AV2 CPU PCB ASS'Y

AAV20PCB006

Part picture
PARTS INQUIRY
Game List

Sign up to our newsletter to stay in touch with our work and everything that's going on at our company.
receive the latest updates, news, and special offers. We can't wait to get started!

[Headquarters]#704-1, Gongjang-dong, Ilsan Techno Town, 138, Ilsan-ro, Ilsandong-gu,
Goyang-si, Gyeonggi-do, Republic of Korea

[ANDAMIRO USA]2222 Century Cir, Irving TX 75062 U.S.A

Copyright ⓒ 1993~2026 By Andamiro Co., LTD. All rights reserved.

ContactHeadquarters (International)
Sales: sales@andamiro.com
Tech and Parts: sales@andamiro.com
TEL: 82-31-909-2046

North AmericaSales: min@andamirousa.com
Tech support: service@andamirousa.com
Parts : parts@andamirousa.com
Tel: 1-310-767-5800
Fax: 972-445-9111

Copyright ⓒ 1993~2026 By Andamiro Co., LTD. All rights reserved.
