Andamiro Co., Ltd.

TICKET REDEMPTION TIGHT ROPE Run away from chaser and across Tight Rope!

Short url COPY http://www.andamiro.com/games/tightrope

Tags TightRope Ticket

Dimensions 802mm x 991mm x 2,348mm
32" x 39" x 92"

Packing Dimensions 1,150mm x 910mm x 2,160mm
45" x 36" x 85"

Product Weight 160 kg / 353 lbs

Packing Weight 240 kg / 529 lbs

Power 360W

INQUIRY

PARTS INQUIRY

INQUIRE
CATEGORY OF QUESTIONS	TYPE OF QUESTIONS
AREA	AREA
COUNTRY	COUNTRY
Your Name (required)	Your Name (required)
Your Email (required)	Your Email (required)
Subject	Subject
Select Parts	Select Parts
Your Message	Your Message
FILE UPLOAD ##1	FILE UPLOAD ##1
FILE UPLOAD ##2	FILE UPLOAD ##2
CAPTCHA	CAPTCHA
NEWS LETTER	NEWS LETTER Yes! I would like to receive ANDAMIRO's newsletter.
CAPTCHA
I agree to the collection and use of personal information.

SUPPORT

Leaflets (1)
Manuals (1)
Document (1)
Trouble shooting
Video List (0)

FEATURES

- You can feel the vibration through the controller

- Enjoy our marvelous 3 stages

- Overcome thrill and tension by chaser and obstacles and get into the goal to get a Super Bonus!

- Easy and unique controller

GALLERY

Sorry, this is not available at the moment.

PARTS

동기화 작업중입니다.
페이지를 이동하거나 닫으면 오류가 발생할 수 있습니다.

Total 90Parts

No.	Part name Part picture	Code Info	Part picture	Part Add

1	AC INPUT DAC-13H	AC INPUT MELE0SWI015	Part picture
2	FUSE 10A 0218010.MXP 250V,10A,4PA	FUSE 10A MELE0FUS018	Part picture
3	BUTTON LED HOUSING	BUTTON LED HOUSING MZZZ0PLA038	Part picture

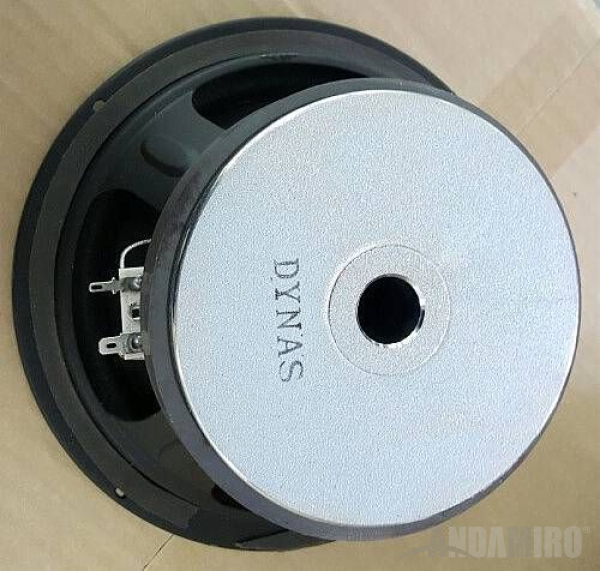

4	SPEAKER 6.5 INCH	SPEAKER MZZZ0SPE037	Part picture
4.1	[SPEAKER] IMAGE BOARD 42 LM4201-AON	[SPEAKER] IMAGE BOARD MZZZ0PCB048	Part picture
5	POWER SMPS LRS 150F-12	POWER SMPS MELE0SMP090	Part picture

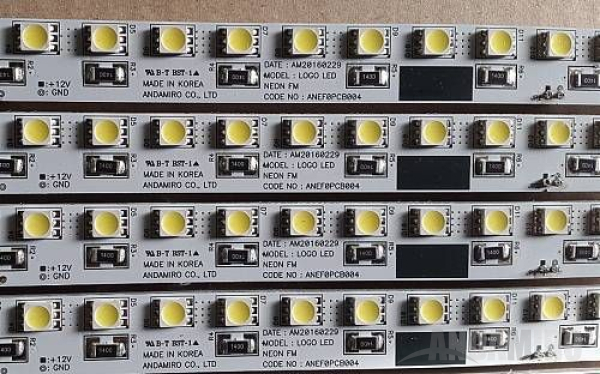

6	LOGO LED PCB ASS'Y NEON FM	LOGO LED PCB ASS'Y ANEF0PCB004	Part picture

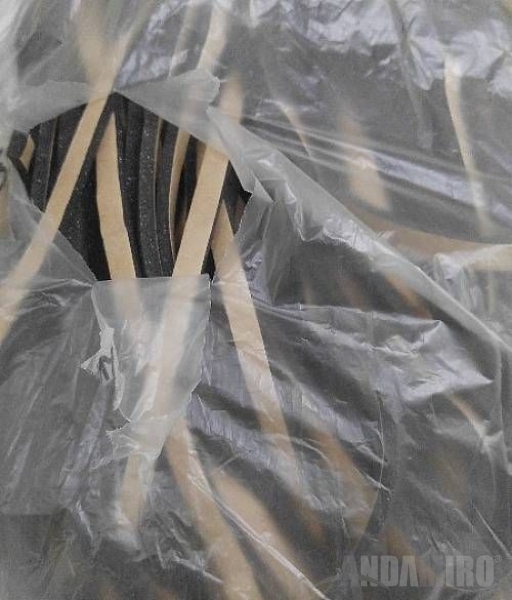

7	LCD CASE SPONGE PVC FORM 8*1000 5T(접착면)	LCD CASE SPONGE MGAC0RUB006	Part picture

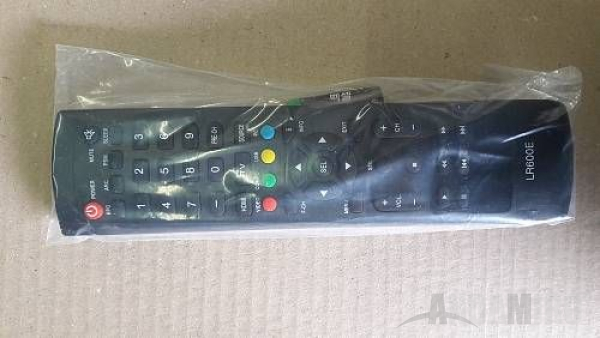

7.1	[LCD CASE SPONGE] REMOCON 43"	[LCD CASE SPONGE] REMOCON MPCX0ZZZ001	Part picture

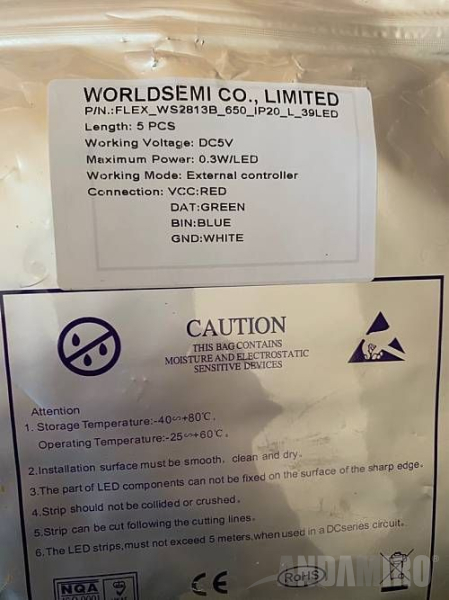

8	FLEX_WS2813B_650_NWP_L_39 WS2813 TOP300구 39알	FLEX_WS2813B_650_NWP_L_39 MELE0LED025	Part picture

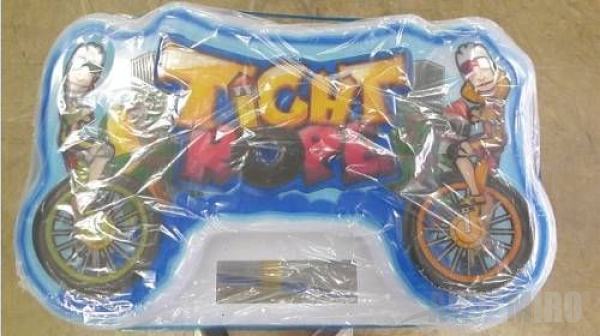

9	BILLBOARD COVER PC-5.0T(광확산)	BILLBOARD COVER MTIR0PLA001	Part picture

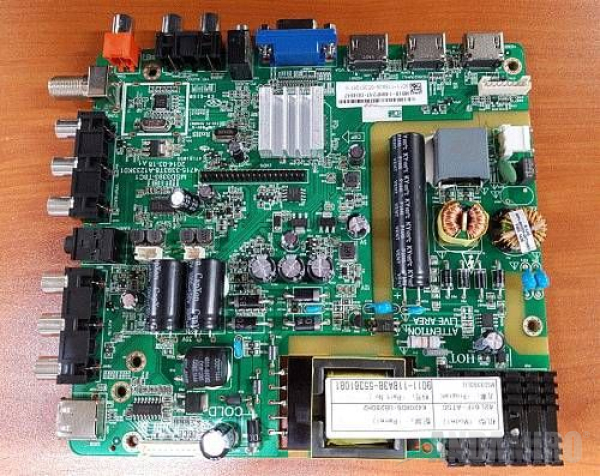

9.1	[BILLBOARD COVER] IMAGE BOARD 43" 4211	[BILLBOARD COVER] IMAGE BOARD MZZZ0PCB058	Part picture
9.2	[BILLBOARD COVER] CPU 인텔 셀러론 G3930	[BILLBOARD COVER] CPU MZZZ0PCB072	Part picture

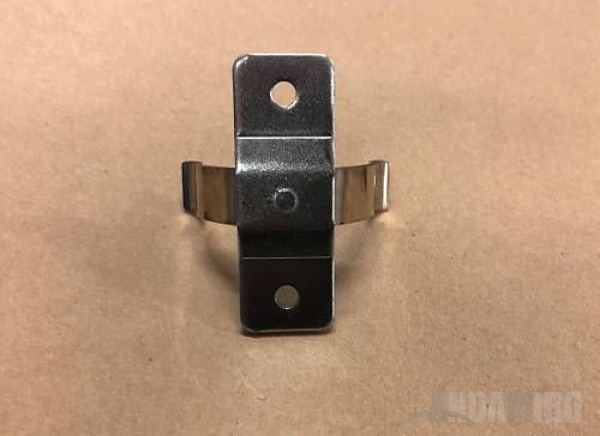

9.3	[BILLBOARD COVER] TENSION GUIDE ASS'Y .	[BILLBOARD COVER] TENSION GUIDE ASS'Y ATIR0ASS007	Part picture

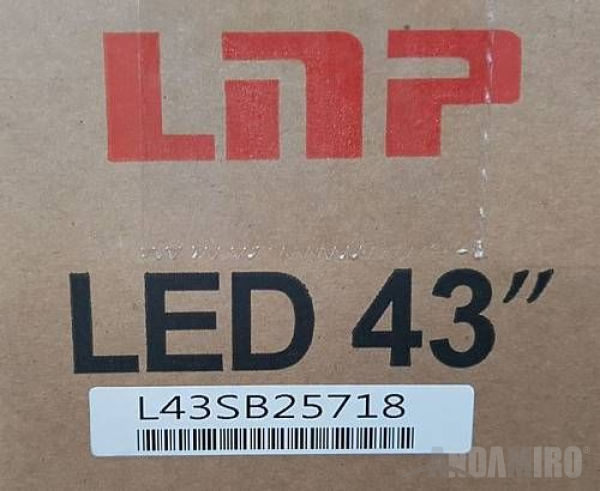

10	LED MONITOR 43 INCH 4310_A01,동태630008	LED MONITOR 43 INCH APCX0LED002	Part picture

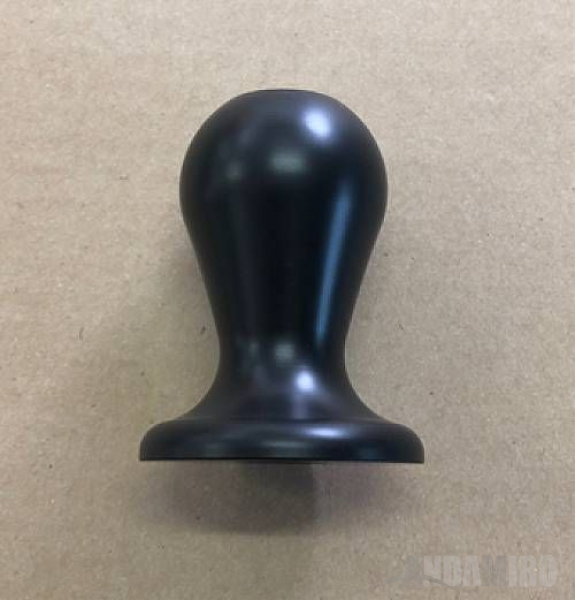

10.1	[LED MONITOR 43 INCH] CONTROLLER HANDLE ACETAL(BLACK)	[LED MONITOR 43 INCH] CONTROLLER HANDLE MTIR0PRO004	Part picture

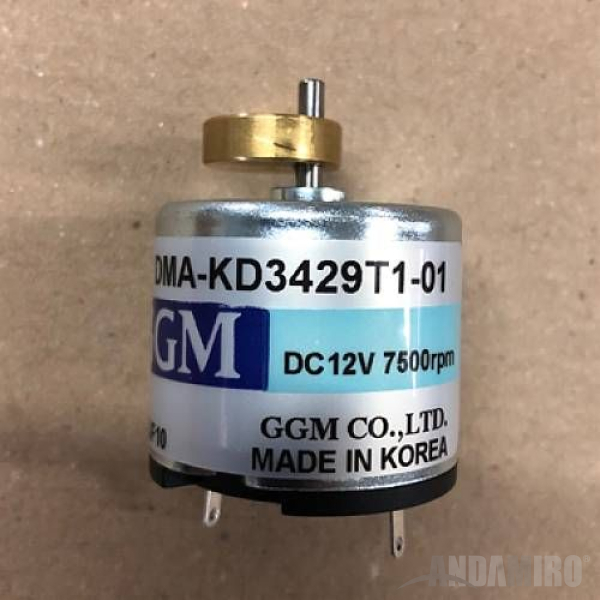

11	MOTOR ASS'Y_VIBRATION .	MOTOR ASS'Y_VIBRATION ATIR0ASS004	Part picture
12	FLEX_WS2813B_650_NWP_L_39 WS2813 TOP300구 39알	FLEX_WS2813B_650_NWP_L_39 MELE0LED025	Part picture
13	LED BAR 12V ASS'Y 460MM	LED BAR 12V ASS'Y AZZZ0PCB124	Part picture
14	COIN SELECTOR TW-389	COIN SELECTOR MZZZ0COS052	Part picture

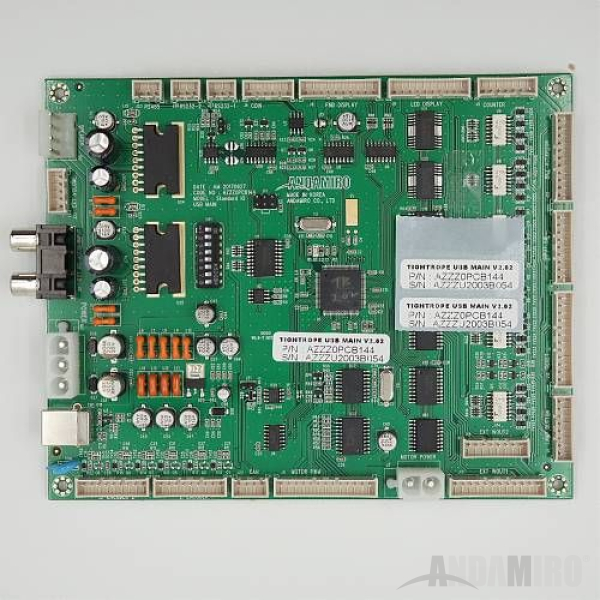

15	USB MAIN PCB ASS'Y STANDARD IO	USB MAIN PCB ASS'Y AZZZ0PCB144	Part picture
16	RGB_BUTTON_LED PCB ASS'Y V2 1T	RGB_BUTTON_LED PCB ASS'Y V2 AZZZ0PCB209	Part picture
17	BUTTON SWITCH TICKET AM1PB-26SH R12D	BUTTON SWITCH MMUM0BUT002	Part picture
18	MONITOR CABLE HDMI_HDMI 2M	MONITOR CABLE MZZZ0HAN053	Part picture
19	LED STICK BAR BRK 12MM 90도	LED STICK BAR BRK MELE0000022	Part picture
20	NOISE FILTER RNS-2010	NOISE FILTER MELE0NOI009	Part picture
21	TERMINAL BLOCK 250V 10P UL_CE	TERMINAL BLOCK MELE0TEB003	Part picture
22	CONTROLLER ASS'Y .	CONTROLLER ASS'Y ATIR0ASS005	Part picture

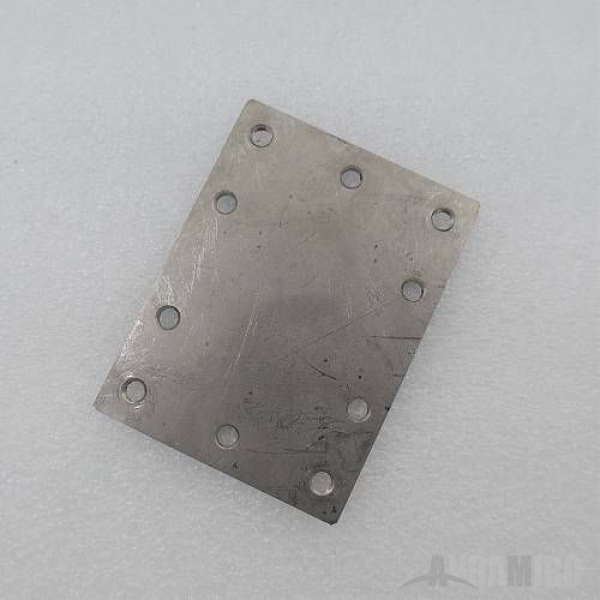

23	CONTROLLER FRAME BASE PLATE .	CONTROLLER FRAME BASE PLATE MTIR0PRO005	Part picture
23.1	[CONTROLLER FRAME BASE PLATE] ATX POWER SUPPLY FSP350-50TAC	[CONTROLLER FRAME BASE PLATE] ATX POWER SUPPLY MELE0SMP149	Part picture
23.2	[CONTROLLER FRAME BASE PLATE] MAIN BOARD ASROCK H110M-DVS R2.0 V2	[CONTROLLER FRAME BASE PLATE] MAIN BOARD MZZZ0PCB102	Part picture
24	KEY ASS'Y 6001 6001 ONLY BODY	KEY ASS'Y 6001 MZZZ0KEY075	Part picture
25	KEY ASS'Y 7001 7001 ONLY BODY	KEY ASS'Y 7001 MZZZ0KEY076	Part picture
26	KEY ONLY 7001 2EA 1SET_WITH RING	KEY ONLY 7001 MZZZ0KEY035	Part picture
27	KEY ONLY 6001 2EA 1SET _WITH RING	KEY ONLY 6001 MZZZ0KEY014	Part picture
28	ROCKER SWITCH R595KDF	ROCKER SWITCH MELE0SWI021	Part picture
29	PUSH BUTTON SWITCH DS-412R ROSH	PUSH BUTTON SWITCH MELE0PUS006	Part picture
29.1	[PUSH BUTTON SWITCH] GRAPHIC CARD_GIGABYTE GEFORCE GT1030 UD2 D4 2GB	[PUSH BUTTON SWITCH] GRAPHIC CARD_GIGABYTE GEFORCE MZZZ0PCB101	Part picture
30	CONTROLLER COVER PC-5.0T(광확산)	CONTROLLER COVER MTIR0PLA002	Part picture
31	WS2812B IO PCB ASS'Y V3 TIGHT ROPE 2P	WS2812B IO PCB ASS'Y V3 ATIR0PCB004	Part picture

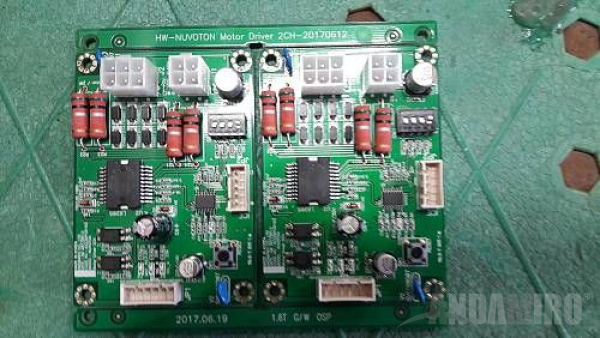

32	NUVOTON MOTOR DRIVER 2CH PCB ASS'Y 20170612	NUVOTON MOTOR DRIVER 2CH PCB ASS'Y AT1P0PCB001	Part picture
33	VOLUME PCB ASS'Y 1 VOLUME	VOLUME PCB ASS'Y AHM20PCB016	Part picture
33.1	[VOLUME PCB ASS'Y] CONTROLLER BEARING HOUSING ASS'Y_CHN 중국향 SKD	[VOLUME PCB ASS'Y] CONTROLLER BEARING HOUSING ASS'Y_CHN ATIR0ASS001	Part picture
34	BUTTON ASS'Y _ NO SWITCH CL-2020 65 TYPE LED	BUTTON ASS'Y _ NO SWITCH MZZZ0BUT101	Part picture

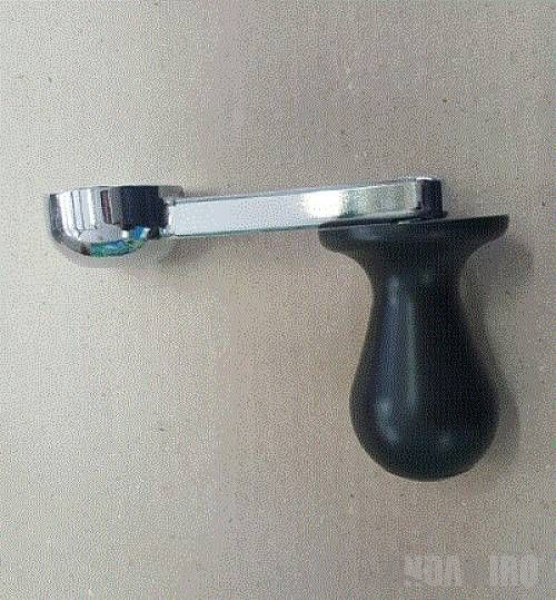

35	CONTROLLER HANDLE ASS'Y_CHN 중국향 SKD	CONTROLLER HANDLE ASS'Y_CHN ATIR0ASS002	Part picture
36	COUNTER OA127CL W/2P CONNECTOR_20CM WIRE	COUNTER MZZZ0COU002	Part picture
37	HOLDER ASS'Y LED포함	HOLDER ASS'Y MZZZ0BUT103	Part picture
38	VOLUME KNOB CAP BLUE	VOLUME KNOB MELE0VOL007	Part picture
39	FND PCB ASS'Y 6390-4(STRAIGHT)	FND PCB ASS'Y AFND0PCB011	Part picture

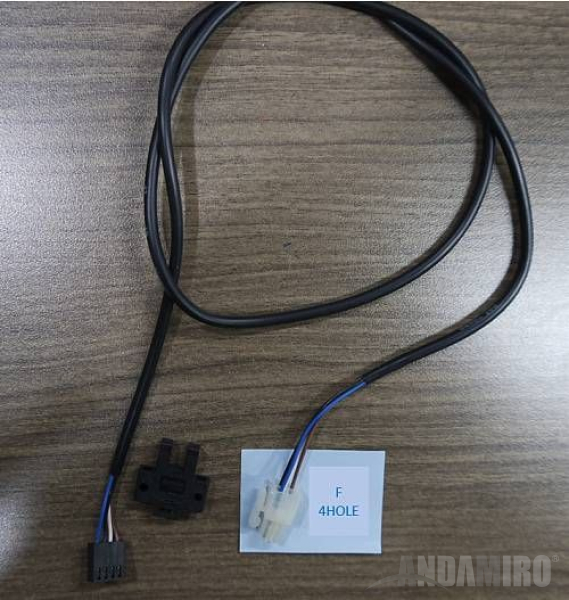

40	PHOTO SENSOR F BS5-K2M_CT02 1M	PHOTO SENSOR F AELE0PHO002	Part picture

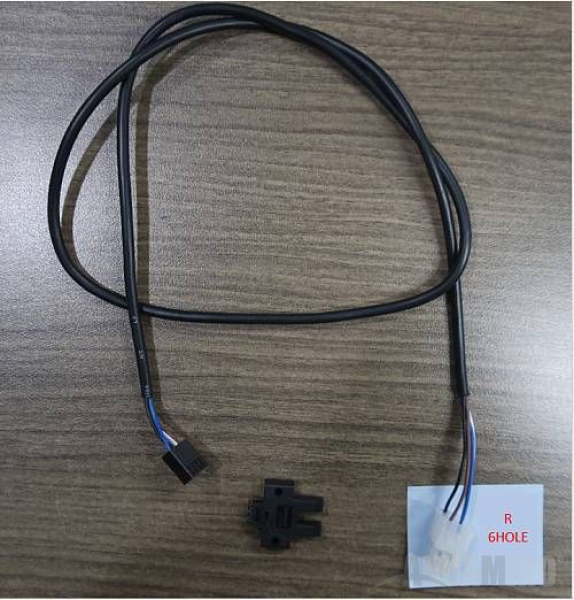

41	PHOTO SENSOR R BS5-K2M_CT02 1M	PHOTO SENSOR R AELE0PHO003	Part picture
42	TICKET DISPENSER CLE CL-002Q_270 HIGH SPEED	TICKET DISPENSER MZZZ0TID010	Part picture
43	POWER SMPS LRS 150F-5	POWER SMPS MELE0SMP096	Part picture
43.1.1	[POWER SMPS] MEDAL TENSION GUIDE BLOCK .	[POWER SMPS] MEDAL TENSION GUIDE BLOCK MZZZ0ELH008	Part picture
44	MAIN BOX ASS'Y TIGHT ROPE 2P	MAIN BOX ASS'Y ATIR0SYS003	Part picture

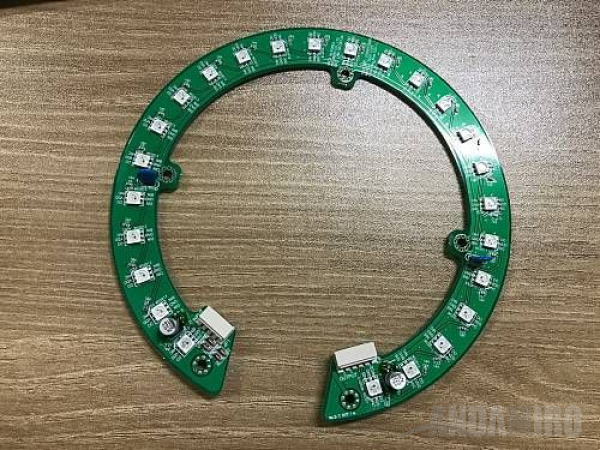

45	CONT-SIDE LED-L PCB ASS'Y TIGHTROPE 1P 2P	CONT-SIDE LED-L PCB ASS'Y ATIR0PCB001	Part picture
46	SMPS BKT MEANWELL	SMPS BKT MZZZ0MEP048	Part picture
46.1.1	[SMPS BKT] LOCK KEY ELIGHT LC	[SMPS BKT] LOCK KEY MZZZ0MEM021	Part picture

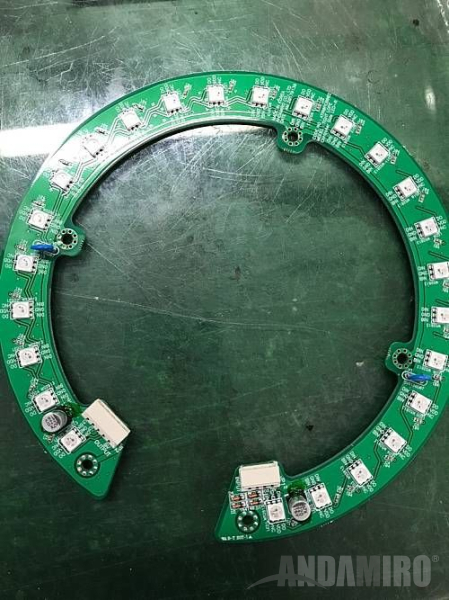

47	CONT-SIDE LED-R PSB ASS'Y TIGHTROPE 1P 2P	CONT-SIDE LED-R PSB ASS'Y ATIR0PCB002	Part picture
48	WS2813B LED PCB 30EA-L ASS'Y PUMP LX	WS2813B LED PCB 30EA-L ASS'Y APLX0PCB006	Part picture
48.1.1	[WS2813B LED PCB 30EA-L ASS'Y] WHEEL CENTER DECO SHEET L .	[WS2813B LED PCB 30EA-L ASS'Y] WHEEL CENTER DECO SHEET L MTIR0SHE008	Part picture
48.2.1	[WS2813B LED PCB 30EA-L ASS'Y] 1P BUTTON SHEET .	[WS2813B LED PCB 30EA-L ASS'Y] 1P BUTTON SHEET MTIR0SHE013	Part picture
48.3.1	[WS2813B LED PCB 30EA-L ASS'Y] WHEEL SIDE DECO SHEET L .	[WS2813B LED PCB 30EA-L ASS'Y] WHEEL SIDE DECO SHEET L MTIR0SHE006	Part picture
48.4.1	[WS2813B LED PCB 30EA-L ASS'Y] CONTROLLER LED SUPT PET-1.0T	[WS2813B LED PCB 30EA-L ASS'Y] CONTROLLER LED SUPT MTIR0ACR002	Part picture
48.5.1	[WS2813B LED PCB 30EA-L ASS'Y] CONTROLLER MOLD FIX ACR ACRYL-10T	[WS2813B LED PCB 30EA-L ASS'Y] CONTROLLER MOLD FIX ACR MTIR0ACR003	Part picture
48.6.1	[WS2813B LED PCB 30EA-L ASS'Y] BILLBOARD FRONT ACR .	[WS2813B LED PCB 30EA-L ASS'Y] BILLBOARD FRONT ACR MTIR0PRI001	Part picture
48.7.1	[WS2813B LED PCB 30EA-L ASS'Y] BILLBOARD COVER .	[WS2813B LED PCB 30EA-L ASS'Y] BILLBOARD COVER MTIR0PRI002	Part picture
48.8.1	[WS2813B LED PCB 30EA-L ASS'Y] MONITOR DECO ACR-A .	[WS2813B LED PCB 30EA-L ASS'Y] MONITOR DECO ACR-A MTIR0PRI003	Part picture
48.9.1	[WS2813B LED PCB 30EA-L ASS'Y] MONITOR DECO ACR-B .	[WS2813B LED PCB 30EA-L ASS'Y] MONITOR DECO ACR-B MTIR0PRI004	Part picture
48.10.1	[WS2813B LED PCB 30EA-L ASS'Y] SPEAKER ACR PANEL .	[WS2813B LED PCB 30EA-L ASS'Y] SPEAKER ACR PANEL MTIR0PRI005	Part picture
48.11.1	[WS2813B LED PCB 30EA-L ASS'Y] SIDE SHEET L-1 .	[WS2813B LED PCB 30EA-L ASS'Y] SIDE SHEET L-1 MTIR0SHE001	Part picture
48.12.1	[WS2813B LED PCB 30EA-L ASS'Y] SIDE SHEET L-2 .	[WS2813B LED PCB 30EA-L ASS'Y] SIDE SHEET L-2 MTIR0SHE002	Part picture
48.13.1	[WS2813B LED PCB 30EA-L ASS'Y] SIDE SHEET R-1 .	[WS2813B LED PCB 30EA-L ASS'Y] SIDE SHEET R-1 MTIR0SHE003	Part picture
48.14.1	[WS2813B LED PCB 30EA-L ASS'Y] SIDE SHEET R-2 .	[WS2813B LED PCB 30EA-L ASS'Y] SIDE SHEET R-2 MTIR0SHE004	Part picture
48.15.1	[WS2813B LED PCB 30EA-L ASS'Y] TABLE SHEET .	[WS2813B LED PCB 30EA-L ASS'Y] TABLE SHEET MTIR0SHE005	Part picture
48.16.1	[WS2813B LED PCB 30EA-L ASS'Y] WHEEL SIDE DECO SHEET R .	[WS2813B LED PCB 30EA-L ASS'Y] WHEEL SIDE DECO SHEET R MTIR0SHE007	Part picture
48.17.1	[WS2813B LED PCB 30EA-L ASS'Y] WHEEL CENTER DECO SHEET R .	[WS2813B LED PCB 30EA-L ASS'Y] WHEEL CENTER DECO SHEET R MTIR0SHE009	Part picture
48.18.1	[WS2813B LED PCB 30EA-L ASS'Y] FRONT DOOR SHEET .	[WS2813B LED PCB 30EA-L ASS'Y] FRONT DOOR SHEET MTIR0SHE010	Part picture
48.19.1	[WS2813B LED PCB 30EA-L ASS'Y] 1P TICKET DOOR SHEET .	[WS2813B LED PCB 30EA-L ASS'Y] 1P TICKET DOOR SHEET MTIR0SHE011	Part picture
48.20.1	[WS2813B LED PCB 30EA-L ASS'Y] 2P TICKET DOOR SHEET .	[WS2813B LED PCB 30EA-L ASS'Y] 2P TICKET DOOR SHEET MTIR0SHE012	Part picture
48.21.1	[WS2813B LED PCB 30EA-L ASS'Y] 2P BUTTON SHEET .	[WS2813B LED PCB 30EA-L ASS'Y] 2P BUTTON SHEET MTIR0SHE014	Part picture
48.22.1	[WS2813B LED PCB 30EA-L ASS'Y] BILLBOARD FRONT ACR ACRYL-5.0T(REAR PRINT)	[WS2813B LED PCB 30EA-L ASS'Y] BILLBOARD FRONT ACR MTIR0ACR001	Part picture
48.23.1	[WS2813B LED PCB 30EA-L ASS'Y] FRONT SIDE LED COVER PC-2.0T(광확산)	[WS2813B LED PCB 30EA-L ASS'Y] FRONT SIDE LED COVER MTIR0ACR004	Part picture
48.24.1	[WS2813B LED PCB 30EA-L ASS'Y] FRONT TABLE BUTTON ACRYL ACRYL-5T	[WS2813B LED PCB 30EA-L ASS'Y] FRONT TABLE BUTTON ACRYL MTIR0ACR005	Part picture
48.25.1	[WS2813B LED PCB 30EA-L ASS'Y] FRONT TABLE LED ACRYL COVER ACRYL-2.0T(스리아크릴)	[WS2813B LED PCB 30EA-L ASS'Y] FRONT TABLE LED ACRYL COVER MTIR0ACR006	Part picture
48.26.1	[WS2813B LED PCB 30EA-L ASS'Y] MONITOR DECO ACR-A PET-1.0T(REAR PRINT)	[WS2813B LED PCB 30EA-L ASS'Y] MONITOR DECO ACR-A MTIR0ACR007	Part picture
48.27.1	[WS2813B LED PCB 30EA-L ASS'Y] MONITOR DECO ACR-B PET-1.0T(REAR PRINT)	[WS2813B LED PCB 30EA-L ASS'Y] MONITOR DECO ACR-B MTIR0ACR008	Part picture
48.28.1	[WS2813B LED PCB 30EA-L ASS'Y] MONITOR LED COVER ACRYL-3T	[WS2813B LED PCB 30EA-L ASS'Y] MONITOR LED COVER MTIR0ACR009	Part picture
48.29.1	[WS2813B LED PCB 30EA-L ASS'Y] SPEAKER ACR PANEL ACRYL-5T(REAR PRINT)	[WS2813B LED PCB 30EA-L ASS'Y] SPEAKER ACR PANEL MTIR0ACR010	Part picture
49	WEB ACR ACP SHEET PART T2P	WEB ACR ACP SHEET PART ATIR0PAT003	Part picture
