PAW PATROL PAW PATROL Ready for action!

Short url COPY http://www.andamiro.com/games/pawpatrol

Tags PawPatrol Ticket

Dimensions 1,359mm x 741mm x 3,076mm
54" x 29" x 121"

Packing Dimensions 1,150mm x 840mm x 2,200mm
45" x 33" x 87"

Product Weight 145 kg / 320 lbs

Packing Weight 180 kg / 397 lbs

Power 210W

INQUIRY

PARTS INQUIRY

INQUIRE
CATEGORY OF QUESTIONS	TYPE OF QUESTIONS
AREA	AREA
COUNTRY	COUNTRY
Your Name (required)	Your Name (required)
Your Email (required)	Your Email (required)
Subject	Subject
Select Parts	Select Parts
Your Message	Your Message
FILE UPLOAD ##1	FILE UPLOAD ##1
FILE UPLOAD ##2	FILE UPLOAD ##2
CAPTCHA	CAPTCHA
NEWS LETTER	NEWS LETTER Yes! I would like to receive ANDAMIRO's newsletter.
CAPTCHA
I agree to the collection and use of personal information.

SUPPORT

Leaflets (1)
Manuals (1)
Document (1)
Trouble shooting
Video List (0)

FEATURES

PAW PATROL Ready for action!

- The worldwide phenomenon!

- Classic game play

- Popular kids theme

- Family friendly

- Lookout tower cabinet design

GALLERY

Sorry, this is not available at the moment.

PARTS

동기화 작업중입니다.
페이지를 이동하거나 닫으면 오류가 발생할 수 있습니다.

Total 59Parts

No.	Part name Part picture	Code Info	Part picture	Part Add

PARTS INQUIRY

1	AC INPUT DAC-13H	AC INPUT MELE0SWI015	Part picture
2	MICRO SWITCH GSMV16_51A2	MICRO SWITCH MELE0MIC021	Part picture
3	FUSE 10A 0218010.MXP 250V,10A,4PA	FUSE 10A MELE0FUS018	Part picture
4	POWER SMPS LRS 150F-12	POWER SMPS MELE0SMP090	Part picture

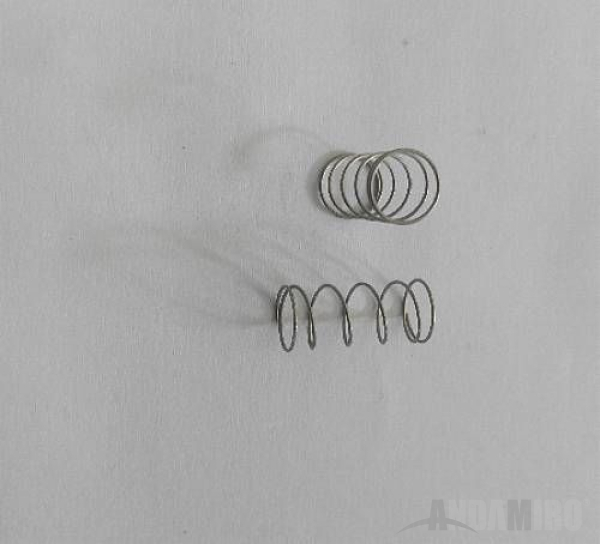

5	BUTTON SPRING .	BUTTON SPRING MPAW0SPR001	Part picture

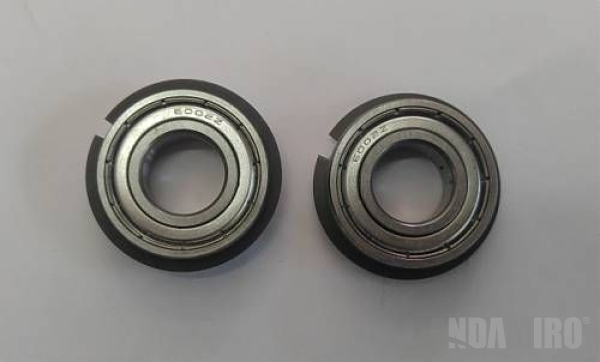

6	BEARING 6002ZZNR	BEARING MZZZ0BEA116	Part picture
6.1	[BEARING] FLEX_5050_WHITE_1400_NWP_L_84 PAW	[BEARING] FLEX_5050_WHITE_1400_NWP_L_84 MELE0LED023	Part picture

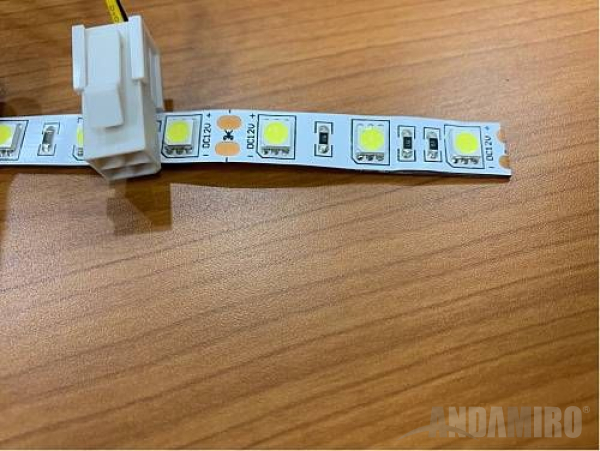

7	FLEX_5050_WHITE_1400_NWP_L_84 PAW	FLEX_5050_WHITE_1400_NWP_L_84 MELE0LED023	Part picture
7.1	[FLEX_5050_WHITE_1400_NWP_L_84] FLEX_5050_RGB_2900_NWP_L PAW	[FLEX_5050_WHITE_1400_NWP_L_84] FLEX_5050_RGB_2900_NWP_L MELE0LED022	Part picture

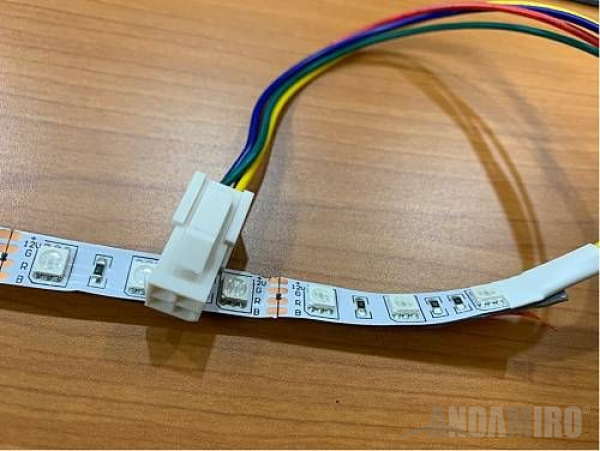

8	FLEX_5050_RGB_2900_NWP_L PAW	FLEX_5050_RGB_2900_NWP_L MELE0LED022	Part picture

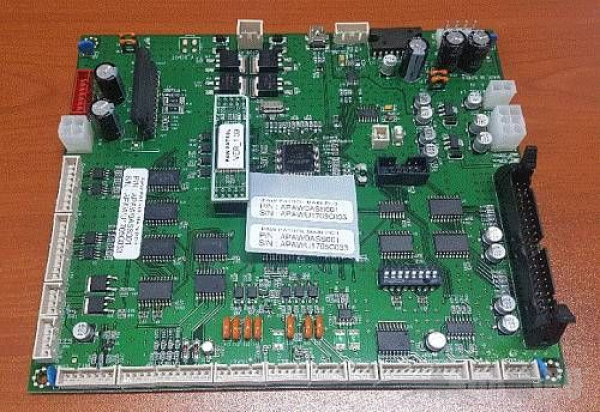

9	MAIN BOARD PCB ASS'Y WITH CPU	MAIN BOARD PCB ASS'Y APAW0ASS001	Part picture

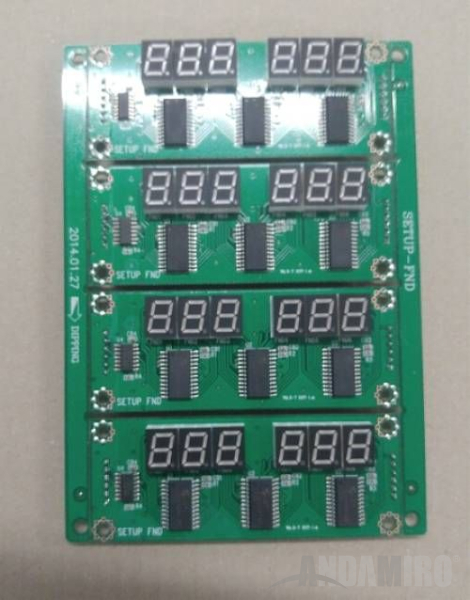

10	SETUP FND ASS'Y HUNGRY CHICKEN CEC	SETUP FND ASS'Y AHCH0PCB001	Part picture

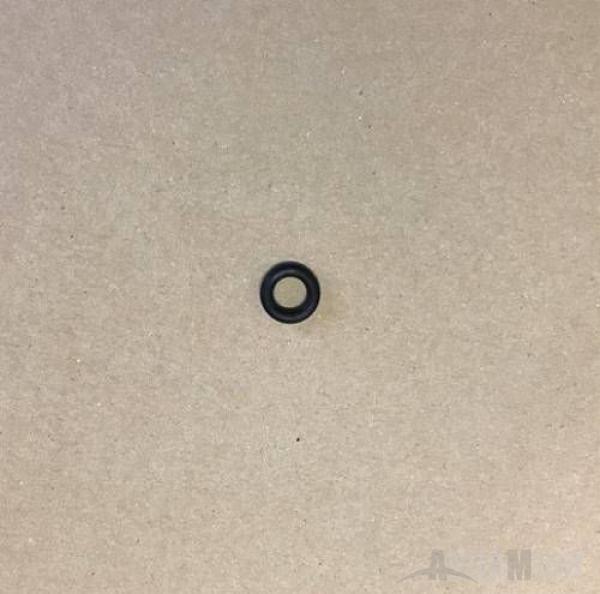

11	O-RING 외경12 내경6	O-RING MZZZ0ORI005	Part picture
12	SPEAKER MID 4.5"+TW1/2" 8Ω W-C-100 F BK	SPEAKER MZZZ0SPE021	Part picture

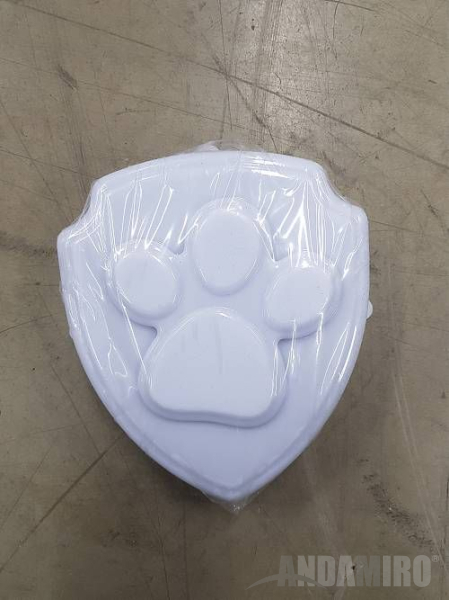

13	BUTTON COVER .	BUTTON COVER MPAW0PLA001	Part picture
13.1	[BUTTON COVER] FLEX_5050_RGB_2900_NWP_L PAW	[BUTTON COVER] FLEX_5050_RGB_2900_NWP_L MELE0LED022	Part picture
14	FLEX_5050_RGB_2900_NWP_L PAW	FLEX_5050_RGB_2900_NWP_L MELE0LED022	Part picture
14.1	[FLEX_5050_RGB_2900_NWP_L] FLEX_5050_WHITE_1400_NWP_L_84 PAW	[FLEX_5050_RGB_2900_NWP_L] FLEX_5050_WHITE_1400_NWP_L_84 MELE0LED023	Part picture
15	FLEX_5050_WHITE_1400_NWP_L_84 PAW	FLEX_5050_WHITE_1400_NWP_L_84 MELE0LED023	Part picture
16	LED BAR 12V ASS'Y 460MM	LED BAR 12V ASS'Y AZZZ0PCB124	Part picture
17	BUTTON SWITCH TICKET AM1PB-26SH R12D	BUTTON SWITCH MMUM0BUT002	Part picture
18	PLUG CUSHION RUBBER 공진 [KD-96R-9] 6MM	PLUG CUSHION RUBBER MCIR0RUB001	Part picture
19	LED STICK BAR BRK 12MM 90도	LED STICK BAR BRK MELE0000022	Part picture
20	PHOTO INT-1 PCB ASS'Y ANGLE TYPE	PHOTO INT-1 PCB ASS'Y AZZZ0PCB103	Part picture

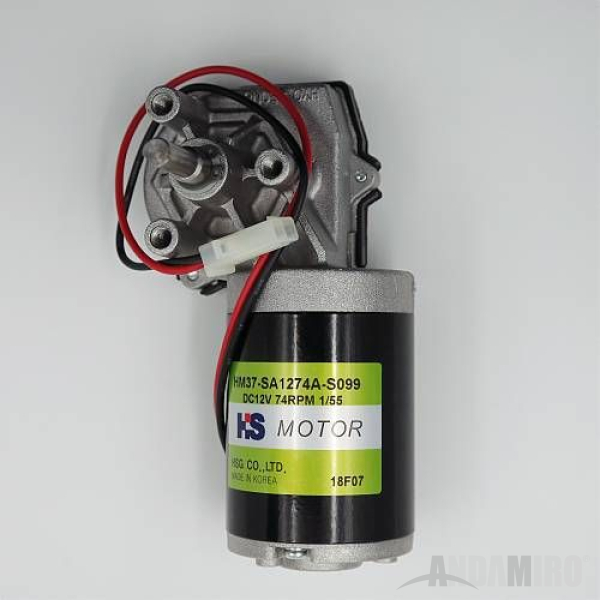

21	MOTOR HM37-SA1274A-S099(DC12V,74RPM,1:55)	MOTOR MZZZ0MOT113	Part picture
22	TERMINAL BLOCK 250V 10P UL_CE	TERMINAL BLOCK MELE0TEB003	Part picture
23	KEY ONLY 7001 2EA 1SET_WITH RING	KEY ONLY 7001 MZZZ0KEY035	Part picture
24	KEY ONLY 6001 2EA 1SET _WITH RING	KEY ONLY 6001 MZZZ0KEY014	Part picture
25	FERRITE CORE RU(TU)1132	FERRITE CORE MELE0FER003	Part picture
26	FERRITE CORE RU(TU)1335	FERRITE CORE MELE0FER001	Part picture
27	ROCKER SWITCH R595KDF	ROCKER SWITCH MELE0SWI021	Part picture
28	PUSH BUTTON SWITCH DS-412R ROSH	PUSH BUTTON SWITCH MELE0PUS006	Part picture

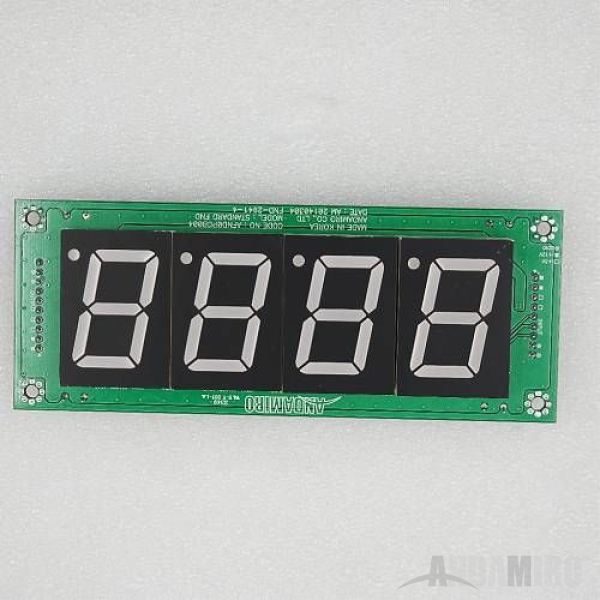

29	FND PCB ASS'Y 2941-4 (STRAIGHT)	FND PCB ASS'Y AFND0PCB004	Part picture
30	VOLUME PCB ASS'Y 1 VOLUME	VOLUME PCB ASS'Y AHM20PCB016	Part picture
31	COUNTER OA127CL W/2P CONNECTOR_20CM WIRE	COUNTER MZZZ0COU002	Part picture
32	VOLUME KNOB CAP BLUE	VOLUME KNOB MELE0VOL007	Part picture

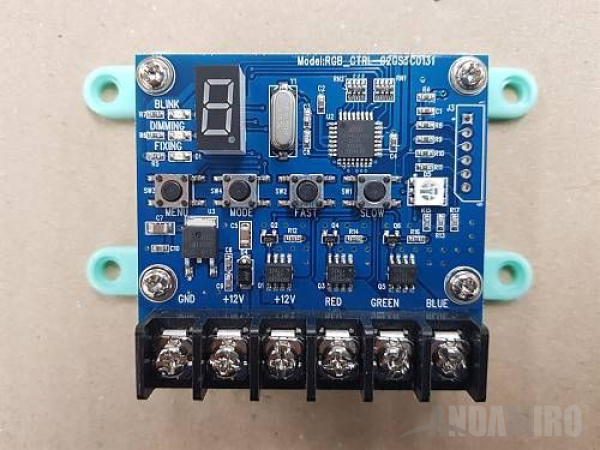

33	RGB PWM PCB RGB_CTRL-G2GSTC0131	RGB PWM PCB MZZZ0000629	Part picture

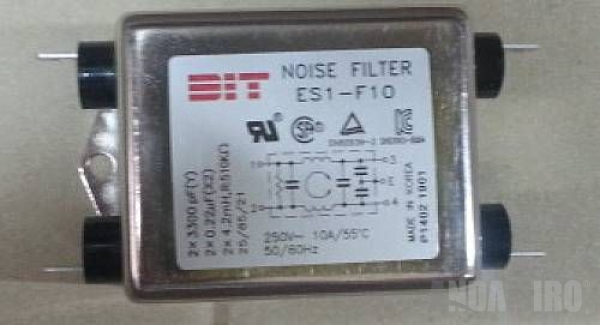

34	NOISE FILTER ES1-F10	NOISE FILTER MELE0NOI006	Part picture
35	POWER SMPS LRS 100-5	POWER SMPS MELE0SMP095	Part picture

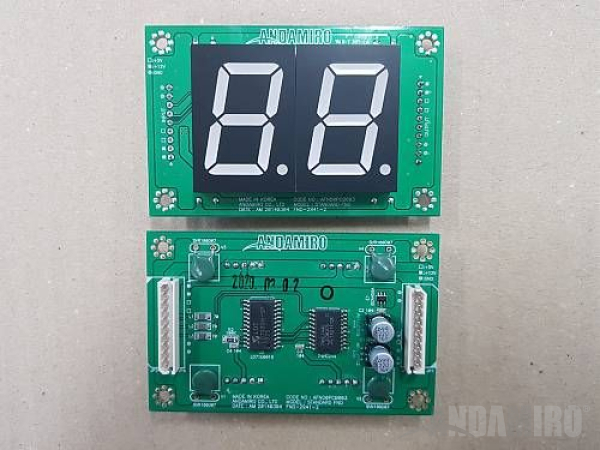

36	FND PCB ASS'Y 2941-2(STRAIGHT)	FND PCB ASS'Y AFND0PCB003	Part picture

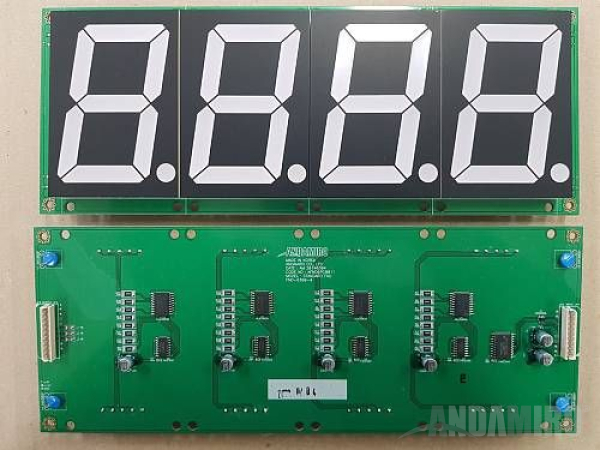

37	FND PCB ASS'Y 6390-4(STRAIGHT)	FND PCB ASS'Y AFND0PCB011	Part picture

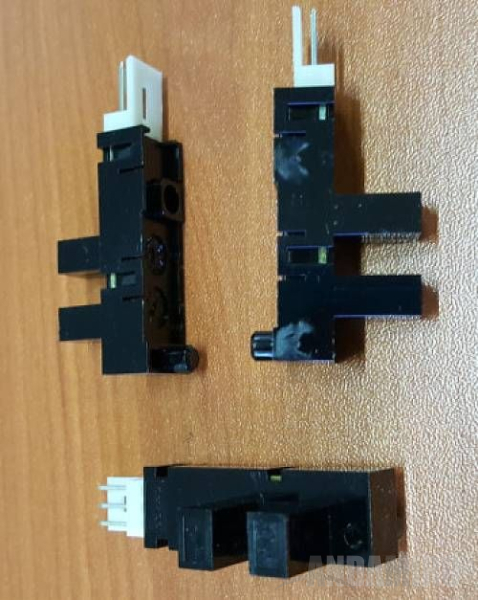

38	PHOTO SENSOR LG-217L3	PHOTO SENSOR MELE0PHO007	Part picture
39	SMPS BKT MEANWELL	SMPS BKT MZZZ0MEP048	Part picture
39.1	[SMPS BKT] 4P LED PCB ASS'Y PAW PATROL	[SMPS BKT] 4P LED PCB ASS'Y APAW0PCB006	Part picture

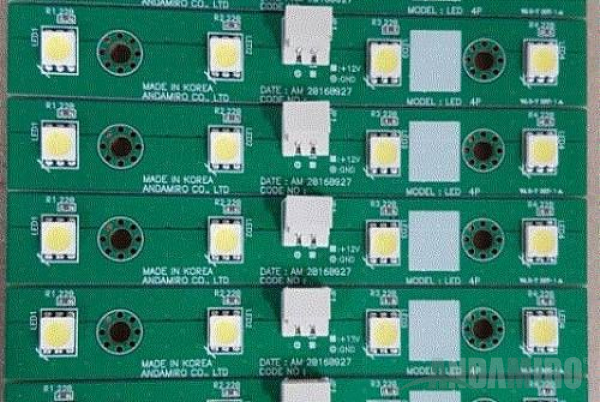

40	4P LED PCB ASS'Y PAW PATROL	4P LED PCB ASS'Y APAW0PCB006	Part picture
40.1	[4P LED PCB ASS'Y] 8P LED PCB ASS'Y PAW PATROL	[4P LED PCB ASS'Y] 8P LED PCB ASS'Y APAW0PCB007	Part picture

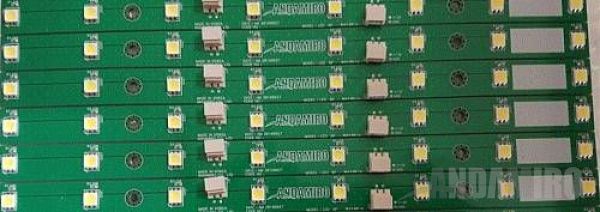

41	8P LED PCB ASS'Y PAW PATROL	8P LED PCB ASS'Y APAW0PCB007	Part picture
41.1	[8P LED PCB ASS'Y] SCORE PLT SHEET-CEC .	[8P LED PCB ASS'Y] SCORE PLT SHEET-CEC MPAW0SHE011	Part picture
41.2	[8P LED PCB ASS'Y] 3P LED PCB ASS'Y PAW PATROL	[8P LED PCB ASS'Y] 3P LED PCB ASS'Y APAW0PCB005	Part picture

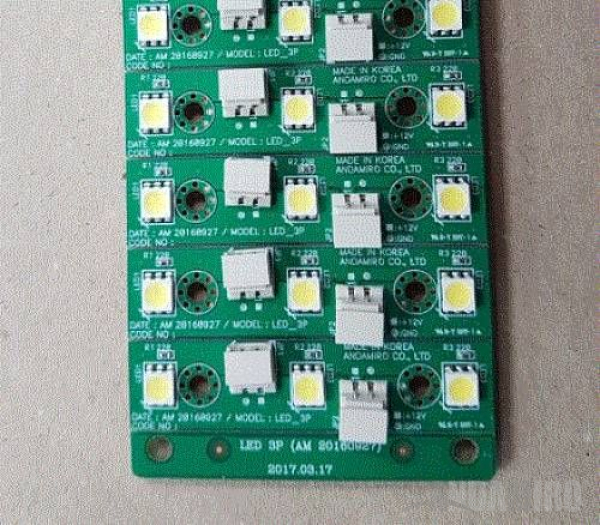

42	3P LED PCB ASS'Y PAW PATROL	3P LED PCB ASS'Y APAW0PCB005	Part picture
42.1	[3P LED PCB ASS'Y] WHEEL INNER PCB ASS'Y PAW PATROL	[3P LED PCB ASS'Y] WHEEL INNER PCB ASS'Y APAW0PCB004	Part picture

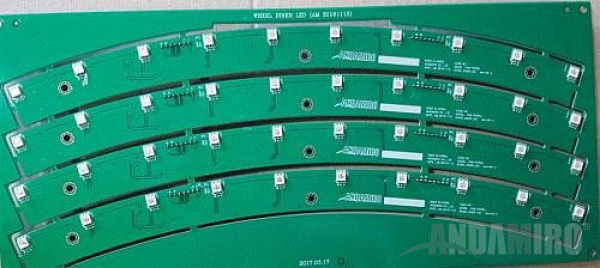

43	WHEEL INNER PCB ASS'Y PAW PATROL	WHEEL INNER PCB ASS'Y APAW0PCB004	Part picture
43.1	[WHEEL INNER PCB ASS'Y] WHEEL INNER FLEXIBLE LED PCB FIX ACRYL .	[WHEEL INNER PCB ASS'Y] WHEEL INNER FLEXIBLE LED PCB FIX ACRYL MPAW0ACR012	Part picture
43.2	[WHEEL INNER PCB ASS'Y] WHEEL OUTSIDE FRONT ACRYL .	[WHEEL INNER PCB ASS'Y] WHEEL OUTSIDE FRONT ACRYL MPAW0ACR014	Part picture
43.3	[WHEEL INNER PCB ASS'Y] WHEEL OUTSIDE REAR ACRYL .	[WHEEL INNER PCB ASS'Y] WHEEL OUTSIDE REAR ACRYL MPAW0ACR015	Part picture
43.4	[WHEEL INNER PCB ASS'Y] WHEEL SCORE BOARD ACRYL .	[WHEEL INNER PCB ASS'Y] WHEEL SCORE BOARD ACRYL MPAW0ACR016	Part picture
44	OUTSIDE WHEEL INNER COVER ACRYL .	OUTSIDE WHEEL INNER COVER ACRYL MPAW0ACR017	Part picture

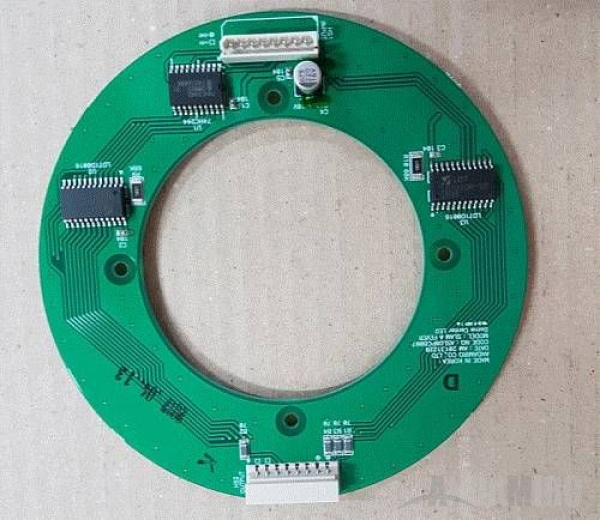

45	DOME CENTER LED PCB ASS'Y PAW PATROL	DOME CENTER LED PCB ASS'Y APAW0PCB003	Part picture
46	WHEEL ASS'Y .	WHEEL ASS'Y APAW0ASS009	Part picture
