Andamiro Co., Ltd.

PRIZE REDEMPTION

STEADY SELLER

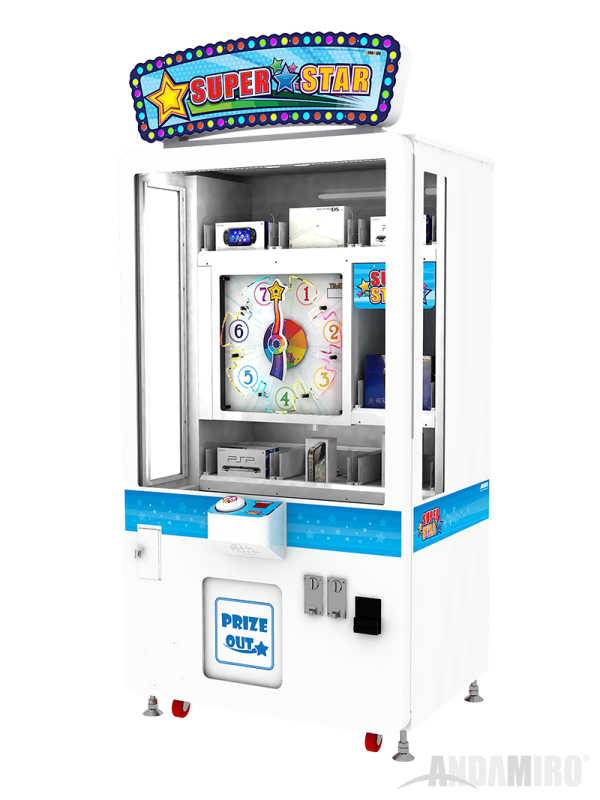

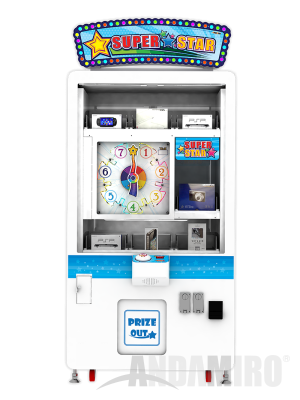

SUPER STAR HERE IS YOUR SUPERSTAR!

Short url COPY http://www.andamiro.com/games/superstar

Tags SuperStar Prize

Dimensions 1,026mm x 932mm x 2,254mm
40" x 37" x 89"

Packing Dimensions 1,150mm x 850mm x 2,260mm
45" x 33" x 89"

Product Weight 280 kg / 617 lbs

Packing Weight 310 kg / 683 lbs

Power 280W

INQUIRY

PARTS INQUIRY

INQUIRE
CATEGORY OF QUESTIONS	TYPE OF QUESTIONS
AREA	AREA
COUNTRY	COUNTRY
Your Name (required)	Your Name (required)
Your Email (required)	Your Email (required)
Subject	Subject
Select Parts	Select Parts
Your Message	Your Message
FILE UPLOAD ##1	FILE UPLOAD ##1
FILE UPLOAD ##2	FILE UPLOAD ##2
CAPTCHA	CAPTCHA
NEWS LETTER	NEWS LETTER Yes! I would like to receive ANDAMIRO's newsletter.
CAPTCHA
I agree to the collection and use of personal information.

SUPPORT

Leaflets (1)
Manuals (2)
Document (1)
Trouble shooting
Video List (0)

FEATURES

- Andamiro's newest prize merchandiser

- Beautifully finished & polished cabinet design

- LED panorama lighting effect

- Simple One button control

- 7 various sized prizes can be displayed

- Anti-theft protection for each prize bin

- Smart Monitoring System™ Optional upon Customer Request!

- The fixed winning rate

GALLERY

Sorry, this is not available at the moment.

PARTS

동기화 작업중입니다.
페이지를 이동하거나 닫으면 오류가 발생할 수 있습니다.

Total 114Parts

No.	Part name Part picture	Code Info	Part picture	Part Add

1	TERMINAL BLOCK 250V 10P UL_CE	TERMINAL BLOCK MELE0TEB003	Part picture
2	MICRO SWITCH-S GSMS5_41TLA(구3142)	MICRO SWITCH-S MELE0MIC003	Part picture
3	KEY ONLY 7001 2EA 1SET_WITH RING	KEY ONLY 7001 MZZZ0KEY035	Part picture
4	KEY ONLY 6001 2EA 1SET_WITH RING	KEY ONLY 6001 MZZZ0KEY014	Part picture

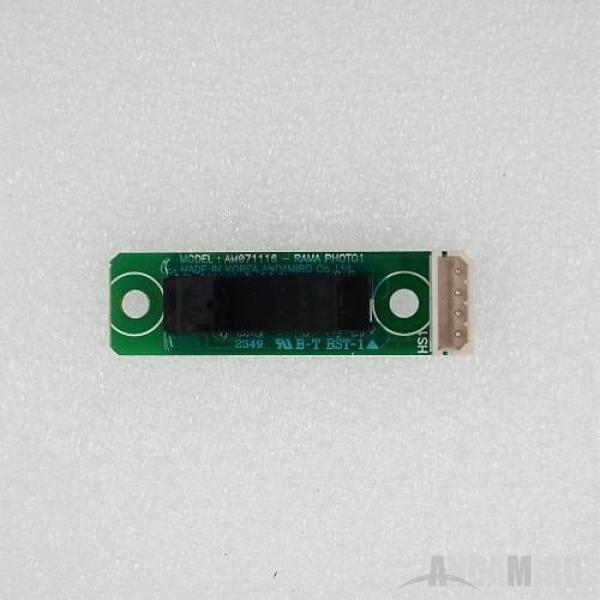

5	PHOTO INT-1 PCB ASS'Y STRIGHT_CIRCLE RAMA	PHOTO INT-1 PCB ASS'Y ACIR0PCB011	Part picture
6	PLUG CUSHION RUBBER 공진 [KD-96R-9] 6MM	PLUG CUSHION RUBBER MCIR0RUB001	Part picture
7	Z MOTOR PART TENSION SPRING .	Z MOTOR PART TENSION SPRING MWID0SPR001	Part picture
7.1	[Z MOTOR PART TENSION SPRING] CREDIT FND PCB ASS'Y WINNERS CUBE DX	[Z MOTOR PART TENSION SPRING] CREDIT FND PCB ASS'Y AWID0PCB004	Part picture
8	CREDIT FND PCB ASS'Y WINNERS CUBE DX	CREDIT FND PCB ASS'Y AWID0PCB004	Part picture
8.1	[CREDIT FND PCB ASS'Y] KEY ASS'Y 6001 BODY	[CREDIT FND PCB ASS'Y] KEY ASS'Y 6001 MZZZ0KEY075	Part picture
9	KEY ASS'Y 7001 BODY	KEY ASS'Y 7001 MZZZ0KEY076	Part picture
10	TILT .	TILT MWIC0PAR100	Part picture

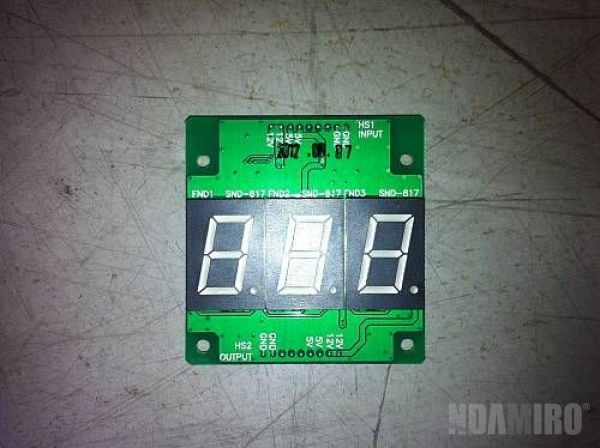

11	FND PCB ASS'Y SUSHI PARTY	FND PCB ASS'Y ASUP0PCB004	Part picture
12	AC INPUT ASS'Y DAC-13H,WITH FUSE10A_2EA	AC INPUT ASS'Y AELE0FUS002	Part picture

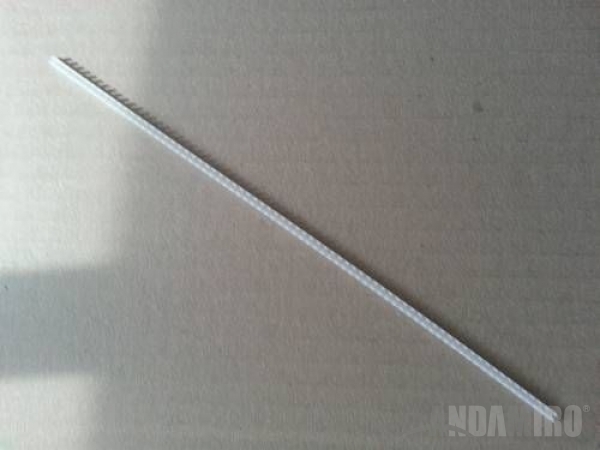

13	COVER BUSHING 판금용엣지_1.2T 27CM	COVER BUSHING MZZZ0000481	Part picture
13.1	[COVER BUSHING] PRIZE DISPENSER SCREW ABS.	[COVER BUSHING] PRIZE DISPENSER SCREW MICU0PLA001	Part picture
13.2	[COVER BUSHING] PRIZE DISPENSER BLOCK ACETAL	[COVER BUSHING] PRIZE DISPENSER BLOCK MICU0PLA002	Part picture
14	PRIZE DISPENSER PUSH BKT GUIDE ACETAL	PRIZE DISPENSER PUSH BKT GUIDE MICU0PLA003	Part picture
14.1	[PRIZE DISPENSER PUSH BKT GUIDE] BEARING F688ZZ	[PRIZE DISPENSER PUSH BKT GUIDE] BEARING MZZZ0BEA076	Part picture
14.2	[PRIZE DISPENSER PUSH BKT GUIDE] MOTOR KWC-0025-3429G-0004	[PRIZE DISPENSER PUSH BKT GUIDE] MOTOR MZZZ0MOT063	Part picture
15	STEPPING MOTOR 4S56Q-08576S	STEPPING MOTOR MZZZ0MOT064	Part picture
15.1	[STEPPING MOTOR] PRIZE DISPENSER MAIN BKT .	[STEPPING MOTOR] PRIZE DISPENSER MAIN BKT MICU0MEP009	Part picture

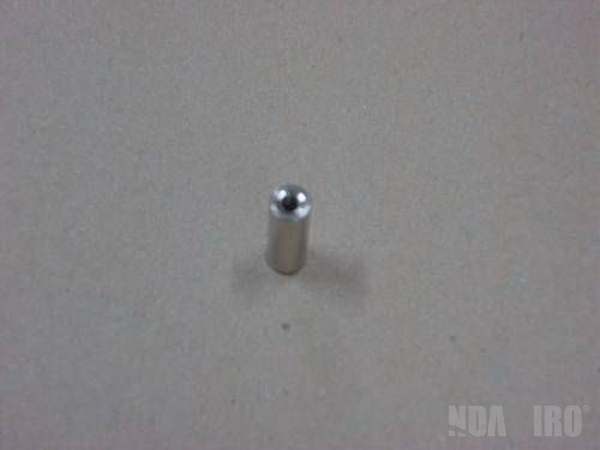

16	Z MOTOR PART GUIDE SHAFT 8*20	Z MOTOR PART GUIDE SHAFT MICU0PRO008	Part picture
16.1	[Z MOTOR PART GUIDE SHAFT] MICRO SWITCH GSMV16_51A2	[Z MOTOR PART GUIDE SHAFT] MICRO SWITCH MELE0MIC021	Part picture
17	SPEAKER_MID 4.5"_TW1/2 8Ω W-C-100 F BK	SPEAKER_MID 4.5"_TW1/2 MZZZ0SPE021	Part picture
18	PRIZE DISPENSER GUIDE BLOCK .	PRIZE DISPENSER GUIDE BLOCK MICU0PLA004	Part picture
19	PRIZE INNER DOOR BUSHING 15*10	PRIZE INNER DOOR BUSHING MICU0PRO012	Part picture
20	PRIZE INNER DOOR ROTATE BUSHING 15*6	PRIZE INNER DOOR ROTATE BUSHING MICU0PRO013	Part picture
21	AC MOTOR PCB ASS'Y I-CUBE	AC MOTOR PCB ASS'Y AICU0PCB007	Part picture
22	MICRO SWITCH GSMV16_31A1	MICRO SWITCH MELE0MIC022	Part picture
23	SSP R PIN 12	SSP R PIN MZZZ0SPR030	Part picture
24	PRIZE DISPENSER ASS'Y I-CUBE	PRIZE DISPENSER ASS'Y AICU0ASS003	Part picture
25	LED STICK BAR BRK 12MM 90도	LED STICK BAR BRK MELE0000022	Part picture
26	COIN SELECTOR TW-333_WITHOUT FND	COIN SELECTOR MZZZ0COS045	Part picture
27	ATTENTION OPERATORS SHEET .	ATTENTION OPERATORS SHEET MICU0SHE027	Part picture
28	TARGET SIDE LED PCB ASS'Y BGR	TARGET SIDE LED PCB ASS'Y ASHS0PCB001	Part picture
28.1	[TARGET SIDE LED PCB ASS'Y] CPU PCB C ASS'Y SCU_ICU_MAG_SM1,3H_SU1,3H_MAG	[TARGET SIDE LED PCB ASS'Y] CPU PCB C ASS'Y ASHS0PCB004	Part picture
28.2	[TARGET SIDE LED PCB ASS'Y] SOUND ROM PCB ASS'Y SHOOTING STAR	[TARGET SIDE LED PCB ASS'Y] SOUND ROM PCB ASS'Y ASHS0PCB005	Part picture

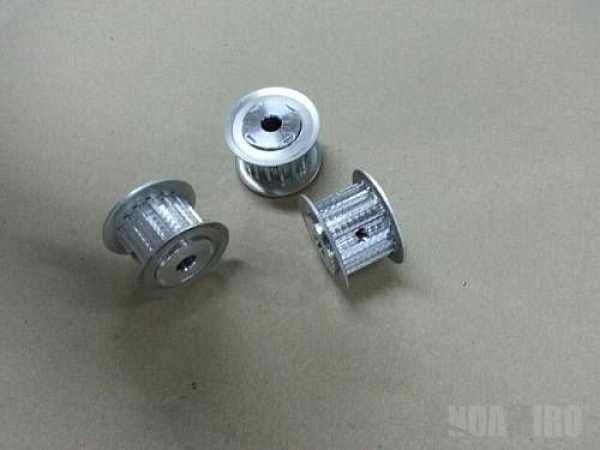

29	TIMMING BELT PULLEY-B P16S5M 33F	TIMMING BELT PULLEY-B MSSS0PRO004	Part picture

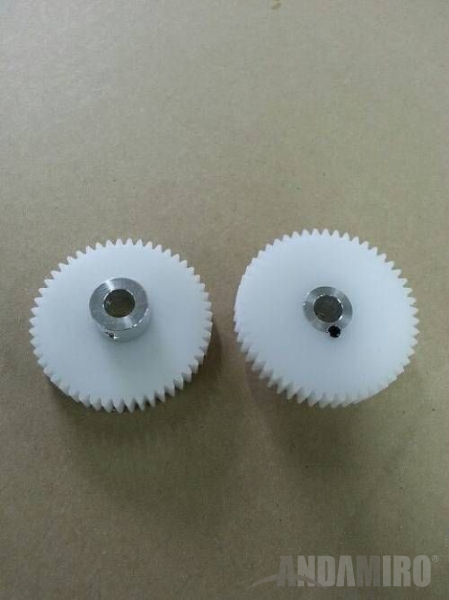

30	Z MOTOR GEAR ASS'Y .	Z MOTOR GEAR ASS'Y MSSS0PRO006	Part picture

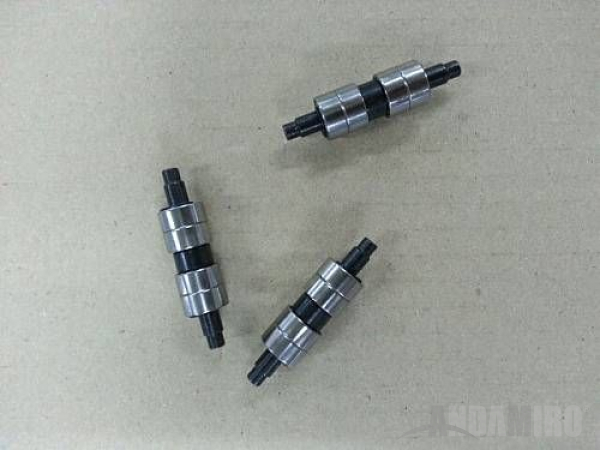

31	BEARING GUIDE SHAFT ASS'Y .	BEARING GUIDE SHAFT ASS'Y MSSS0PRO009	Part picture
31.1	[BEARING GUIDE SHAFT ASS'Y] ARROW BODY ACRYL BASIC 사출	[BEARING GUIDE SHAFT ASS'Y] ARROW BODY ACRYL MSSS0PRO013	Part picture

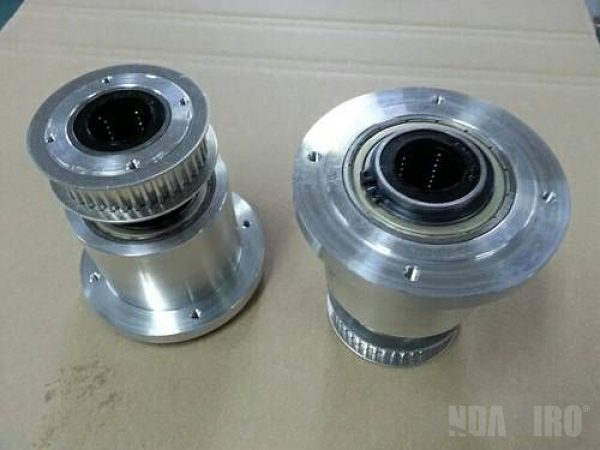

32	ARROW SHAFT BEARING HOUSING ASS'Y .	ARROW SHAFT BEARING HOUSING ASS'Y ASHS0ASS001	Part picture
32.1	[ARROW SHAFT BEARING HOUSING ASS'Y] PRIZE OUT DOOR .	[ARROW SHAFT BEARING HOUSING ASS'Y] PRIZE OUT DOOR MSHS0MEP015	Part picture
32.2	[ARROW SHAFT BEARING HOUSING ASS'Y] MAIN DOOR ON OFF SWITCH ACRYL .	[ARROW SHAFT BEARING HOUSING ASS'Y] MAIN DOOR ON OFF SWITCH ACRYL MSHS0ACR006	Part picture
32.3	[ARROW SHAFT BEARING HOUSING ASS'Y] PRIZE DISPENSER PUSH ACRYL-A .	[ARROW SHAFT BEARING HOUSING ASS'Y] PRIZE DISPENSER PUSH ACRYL-A MSHS0ACR007	Part picture
32.4	[ARROW SHAFT BEARING HOUSING ASS'Y] BUTTON ACRYL .	[ARROW SHAFT BEARING HOUSING ASS'Y] BUTTON ACRYL MSHS0ACR008	Part picture
32.5	[ARROW SHAFT BEARING HOUSING ASS'Y] HOW TO PLAY ACRYL SUPER STAR	[ARROW SHAFT BEARING HOUSING ASS'Y] HOW TO PLAY ACRYL MSHS0ACR009	Part picture
32.6	[ARROW SHAFT BEARING HOUSING ASS'Y] PRIZE DISPENSER LOGO ACRYL SUPER STAR	[ARROW SHAFT BEARING HOUSING ASS'Y] PRIZE DISPENSER LOGO ACRYL MSHS0ACR010	Part picture

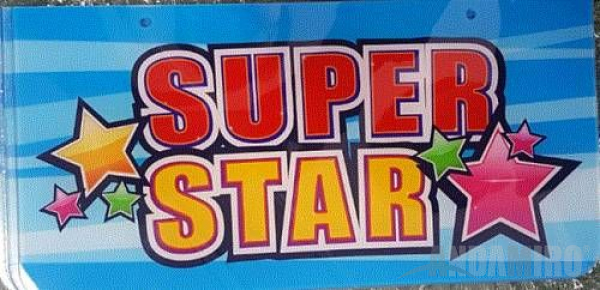

33	PRIZE DISPENSER LOGO ACRYL SUPER STAR	PRIZE DISPENSER LOGO ACRYL MSHS0ACR010	Part picture
33.1	[PRIZE DISPENSER LOGO ACRYL] TARGET BASE ACRYL-A .	[PRIZE DISPENSER LOGO ACRYL] TARGET BASE ACRYL-A MSHS0ACR011	Part picture
33.2	[PRIZE DISPENSER LOGO ACRYL] TARGET BASE ACRYL-B .	[PRIZE DISPENSER LOGO ACRYL] TARGET BASE ACRYL-B MSHS0ACR012	Part picture
34	FRONT DOOR GLASS 93010658T	FRONT DOOR GLASS MSHS0GLA002	Part picture

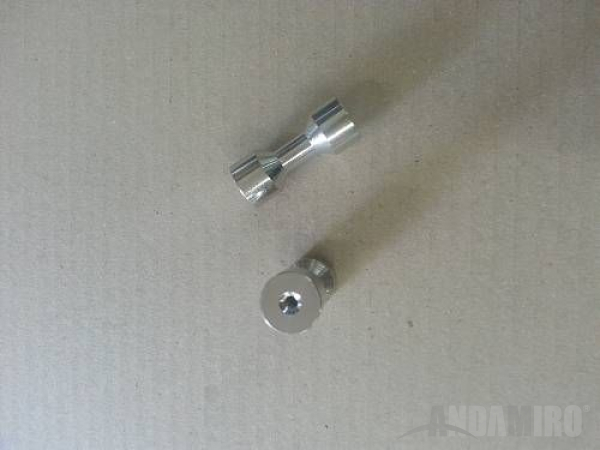

35	TARGET BASE SPACER .	TARGET BASE SPACER MSHS0PRO003	Part picture

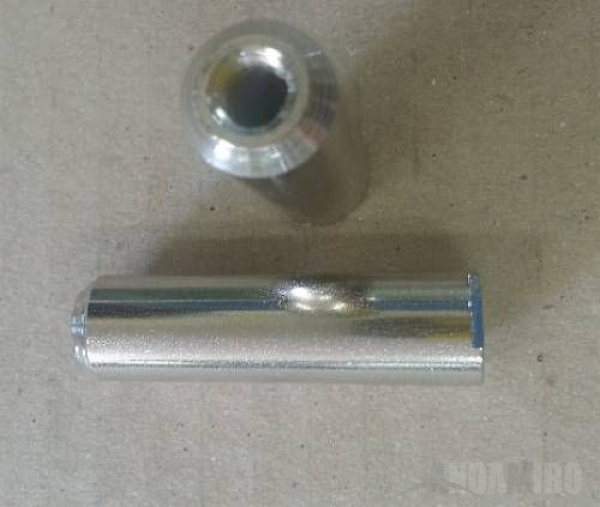

36	TARGET DISPLAY FIX BAR .	TARGET DISPLAY FIX BAR MSHS0PRO004	Part picture
36.1	[TARGET DISPLAY FIX BAR] ARROW BODY MOLD BKT STD	[TARGET DISPLAY FIX BAR] ARROW BODY MOLD BKT MSHS0MEP082	Part picture
37	BEARING 626ZZ	BEARING MZZZ0BEA087	Part picture
38	CODE CHANGE MZZZ0PLA037 20MM 투명 LED	CODE CHANGE MZZZ0PLA037 MZZZ0000521	Part picture
38.1	[CODE CHANGE MZZZ0PLA037] COIN BOX SMALL 200198107 BLACK	[CODE CHANGE MZZZ0PLA037] COIN BOX SMALL MDRE0PLA007	Part picture
39	TIMMING BELT BS3M-339 15MM	TIMMING BELT MZZZ0BEL023	Part picture
39.1	[TIMMING BELT] BILLBOARD FRAME COVER ACRYL SUPER STAR	[TIMMING BELT] BILLBOARD FRAME COVER ACRYL MSHS0ACR016	Part picture

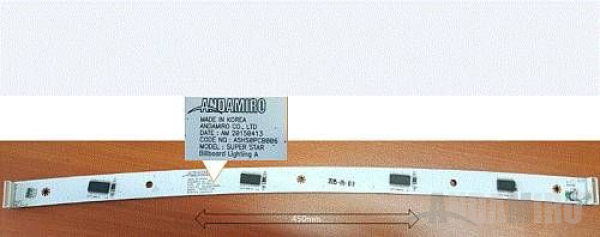

40	BILLBOARD LIGHTING PCB-A .	BILLBOARD LIGHTING PCB-A ASHS0PCB006	Part picture

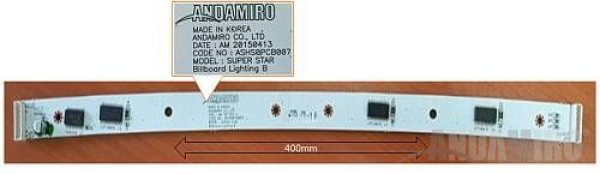

41	BILLBOARD LIGHTING PCB-B .	BILLBOARD LIGHTING PCB-B ASHS0PCB007	Part picture
42	BILLBOARD LIGHTING PCB-C .	BILLBOARD LIGHTING PCB-C ASHS0PCB008	Part picture
42.1	[BILLBOARD LIGHTING PCB-C] ARROW BODY MAIN_1H SKILL .	[BILLBOARD LIGHTING PCB-C] ARROW BODY MAIN_1H SKILL MSHS0PRO005	Part picture
42.2	[BILLBOARD LIGHTING PCB-C] ARROW BODY MAIN_3H SKILL 3H용	[BILLBOARD LIGHTING PCB-C] ARROW BODY MAIN_3H SKILL MSHS0PRO006	Part picture
42.3	[BILLBOARD LIGHTING PCB-C] ARROW BODY BASE BKT_SKILL SKILL용	[BILLBOARD LIGHTING PCB-C] ARROW BODY BASE BKT_SKILL MSHS0MEP092	Part picture
42.4	[BILLBOARD LIGHTING PCB-C] ARROW BODY BASE BKT_SKILL SKILL용	[BILLBOARD LIGHTING PCB-C] ARROW BODY BASE BKT_SKILL MSHS0MEP092	Part picture

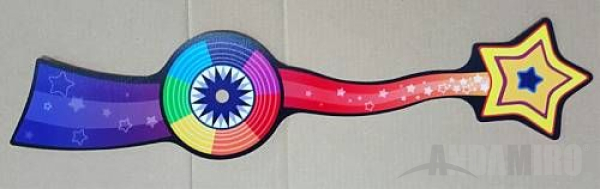

42.5	[BILLBOARD LIGHTING PCB-C] ARROW BODY SHEET .	[BILLBOARD LIGHTING PCB-C] ARROW BODY SHEET MSHS0SHE011	Part picture
42.6	[BILLBOARD LIGHTING PCB-C] ARROW BODY SHEET .	[BILLBOARD LIGHTING PCB-C] ARROW BODY SHEET MSHS0SHE011	Part picture
42.7	[BILLBOARD LIGHTING PCB-C] ARROW BODY SHEET .	[BILLBOARD LIGHTING PCB-C] ARROW BODY SHEET MSHS0SHE011	Part picture
42.8	[BILLBOARD LIGHTING PCB-C] ARROW BODY SHEET .	[BILLBOARD LIGHTING PCB-C] ARROW BODY SHEET MSHS0SHE011	Part picture
42.9	[BILLBOARD LIGHTING PCB-C] FRONT DECO SHEET L .	[BILLBOARD LIGHTING PCB-C] FRONT DECO SHEET L MSHS0SHE012	Part picture
42.10	[BILLBOARD LIGHTING PCB-C] FRONT DECO SHEET R .	[BILLBOARD LIGHTING PCB-C] FRONT DECO SHEET R MSHS0SHE013	Part picture
42.11	[BILLBOARD LIGHTING PCB-C] SIDE DECO SHEET L .	[BILLBOARD LIGHTING PCB-C] SIDE DECO SHEET L MSHS0SHE014	Part picture
42.12	[BILLBOARD LIGHTING PCB-C] TARGET BASE COVER SHEET SUPER STAR	[BILLBOARD LIGHTING PCB-C] TARGET BASE COVER SHEET MSHS0SHE015	Part picture
42.13	[BILLBOARD LIGHTING PCB-C] SIDE DECO SHEET R SUPER STAR	[BILLBOARD LIGHTING PCB-C] SIDE DECO SHEET R MSHS0SHE016	Part picture

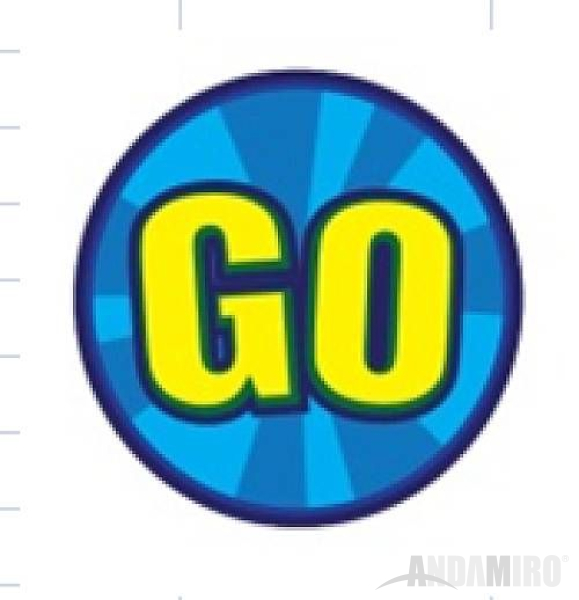

42.14	[BILLBOARD LIGHTING PCB-C] BUTTON SHEET_ GO SUPER STAR	[BILLBOARD LIGHTING PCB-C] BUTTON SHEET_ GO MSHS0SHE018	Part picture
42.15	[BILLBOARD LIGHTING PCB-C] BUTTON SHEET_ GO SUPER STAR	[BILLBOARD LIGHTING PCB-C] BUTTON SHEET_ GO MSHS0SHE018	Part picture

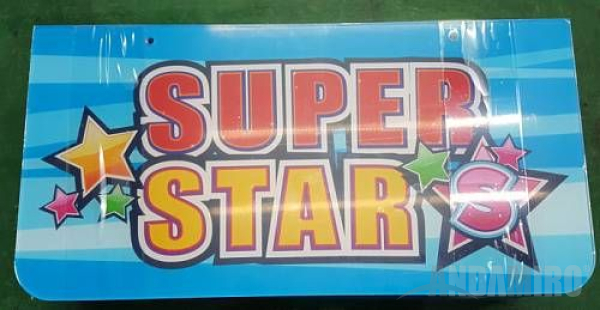

43	PRIZE DISPENSER LOGO ACRYL SUPER STAR S	PRIZE DISPENSER LOGO ACRYL MSHS0ACR017	Part picture
43.1	[PRIZE DISPENSER LOGO ACRYL] BUTTON ACRYL SUPER STAR	[PRIZE DISPENSER LOGO ACRYL] BUTTON ACRYL MSHS0ACR018	Part picture
43.2	[PRIZE DISPENSER LOGO ACRYL] TARGET BASE ACRYL-A SUPER STAR	[PRIZE DISPENSER LOGO ACRYL] TARGET BASE ACRYL-A MSHS0ACR019	Part picture
43.3	[PRIZE DISPENSER LOGO ACRYL] BUTTON ASS'Y _ NO SWITCH CL-2020 65 TYPE LED	[PRIZE DISPENSER LOGO ACRYL] BUTTON ASS'Y _ NO SWITCH MZZZ0BUT101	Part picture
43.4	[PRIZE DISPENSER LOGO ACRYL] BUTTON ASS'Y _ NO SWITCH CL-2020 65 TYPE LED	[PRIZE DISPENSER LOGO ACRYL] BUTTON ASS'Y _ NO SWITCH MZZZ0BUT101	Part picture
44	LED BAR 12V ASS'Y 460MM	LED BAR 12V ASS'Y AZZZ0PCB124	Part picture

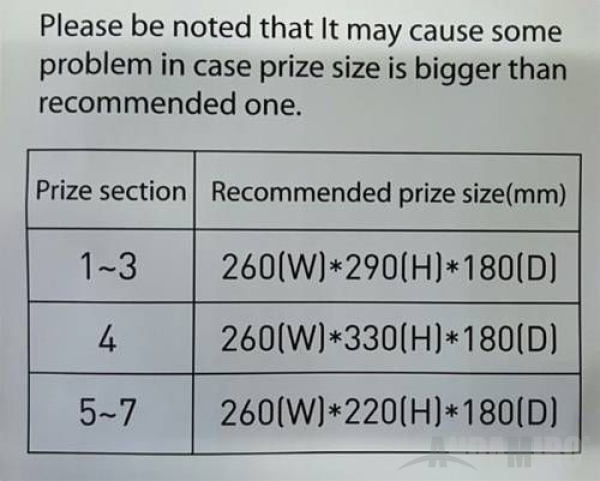

45	PRIZE SIZE SHEET SUPER STAR	PRIZE SIZE SHEET MSHS0SHE026	Part picture
45.1	[PRIZE SIZE SHEET] BUTTON LED HOUSING	[PRIZE SIZE SHEET] BUTTON LED HOUSING MZZZ0PLA038	Part picture
46	BUTTON LED HOUSING	BUTTON LED HOUSING MZZZ0PLA038	Part picture
47	ATX JOIN 2 OZ PCB ASS'Y SPONGE BOB PINEAPPLE	ATX JOIN 2 OZ PCB ASS'Y ASBP0PCB010	Part picture
48	LED BAR 12V ASS'Y 910MM	LED BAR 12V ASS'Y AZZZ0PCB128	Part picture

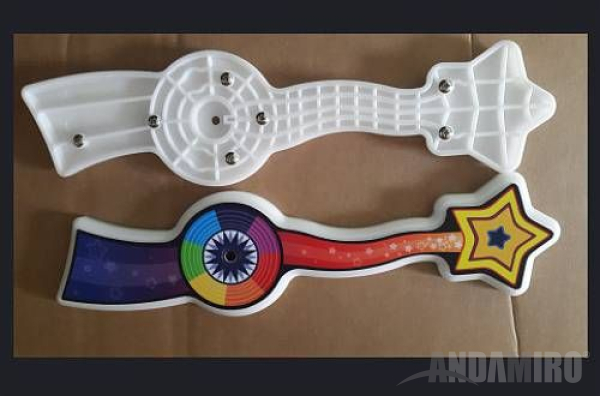

49	ARROW BODY MAIN ASS'Y STD	ARROW BODY MAIN ASS'Y ASHS0ASS004	Part picture

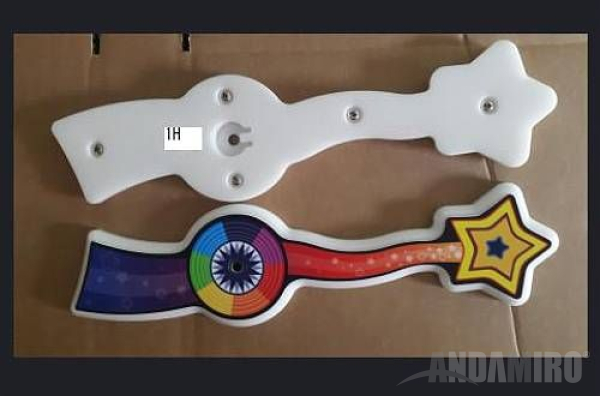

50	ARROW BODY MAIN ASS'Y 1H	ARROW BODY MAIN ASS'Y ASHS0ASS005	Part picture

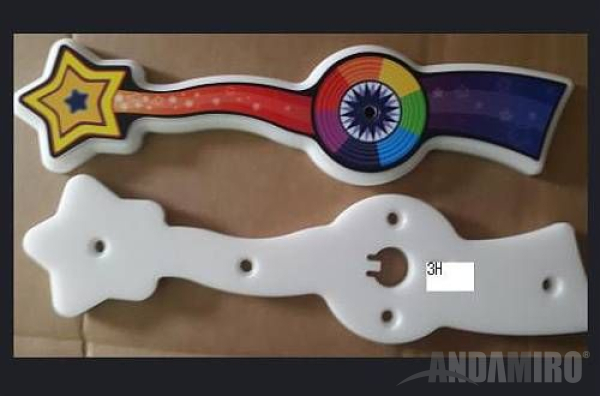

51	ARROW BODY MAIN ASS'Y 3H	ARROW BODY MAIN ASS'Y ASHS0ASS006	Part picture
52	FERRITE CORE RU(TU)1132	FERRITE CORE MELE0FER003	Part picture
53	HAND BOLT 6*35	HAND BOLT BHAB0060002	Part picture
53.1	[HAND BOLT] CODE CHANGE AZZZ0PCB256	[HAND BOLT] CODE CHANGE AZZZ0PCB256 AZZZ0PCB138	Part picture
54	WARNING STICKER (ETL 유리 파손) 110*35	WARNING STICKER (ETL 유리 파손) MZZZ0STI088	Part picture
55	NOTICE STICKER 100*35 10초후전원ON	NOTICE STICKER MZZZ0STI092	Part picture
56	CAUTION STICKER-B(WATCH YOUR HEAD OR HAN 160*35 SS2 11SHE삽입	CAUTION STICKER-B(WATCH YOUR HEAD OR HAN MZZZ0STI094	Part picture
57	CODE CHANGE MELE0SMP149	CODE CHANGE MELE0SMP149 MELE0SMP099	Part picture
58	CODE CHANGE AZZZ0PCB245	CODE CHANGE AZZZ0PCB245 AZZZ0PCB146	Part picture
59	NOTICE(DON'T SHAKE) .	NOTICE(DON'T SHAKE) MZZZ0STI098	Part picture
60	COIN BOX ASS WITH 6001 SMALL 200198107	COIN BOX ASS WITH 6001 AZZZ0ASS002	Part picture
61	NOISE FILTER RNS-2010	NOISE FILTER MELE0NOI009	Part picture
62	ROCKER SWITCH R595KDF	ROCKER SWITCH MELE0SWI021	Part picture

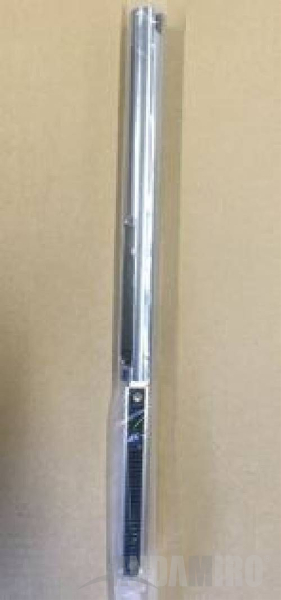

63	ARROW SHAFT MAIN ASS'Y .	ARROW SHAFT MAIN ASS'Y ASSS0ASS002	Part picture

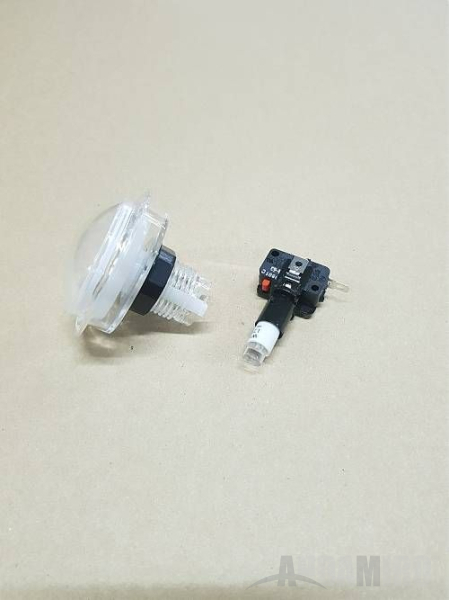

64	BUTTON ASS'Y CL-2020 65 WITH LED	BUTTON ASS'Y AZZZ0BUT009	Part picture

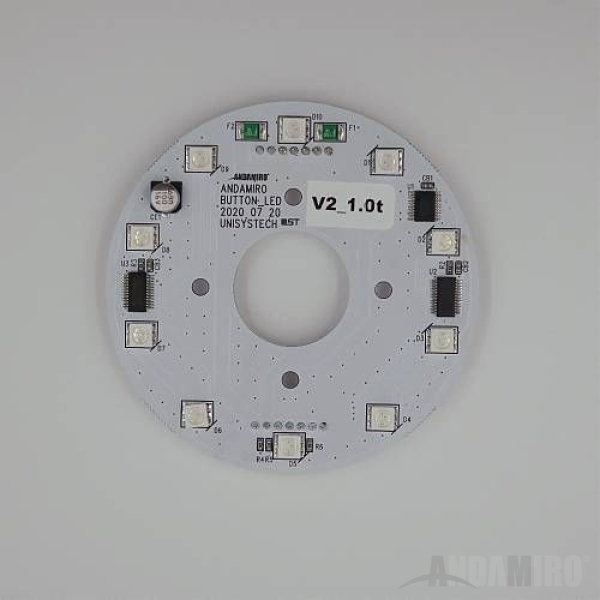

65	RGB_BUTTON_LED PCB ASS'Y V2 1T	RGB_BUTTON_LED PCB ASS'Y V2 AZZZ0PCB209	Part picture
65.1	[RGB_BUTTON_LED PCB ASS'Y V2] PRIZES/W3-1 I CUBE	[RGB_BUTTON_LED PCB ASS'Y V2] PRIZES/W3-1 MICU0HAN001	Part picture

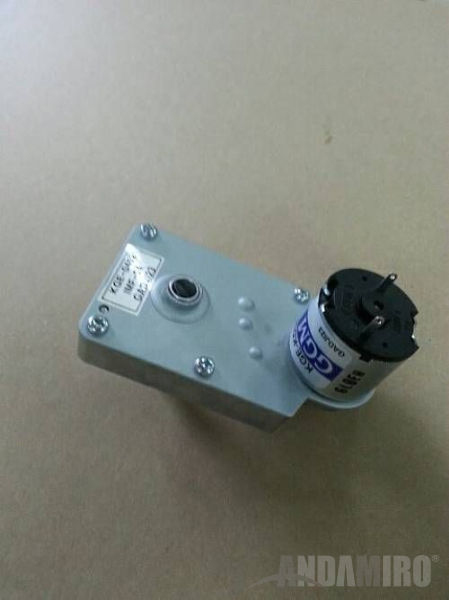

66	MOTOR KGE-3429-050,1/452(10 RPM)	MOTOR MZZZ0MOT082	Part picture
67	BUTTON FRAME PART SUPERSTAR	BUTTON FRAME PART ASHS0ASS017	Part picture
68	COUNTER OA127CL W/ 2P WIRE_20CM	COUNTER OA127CL MZZZ0COU002	Part picture

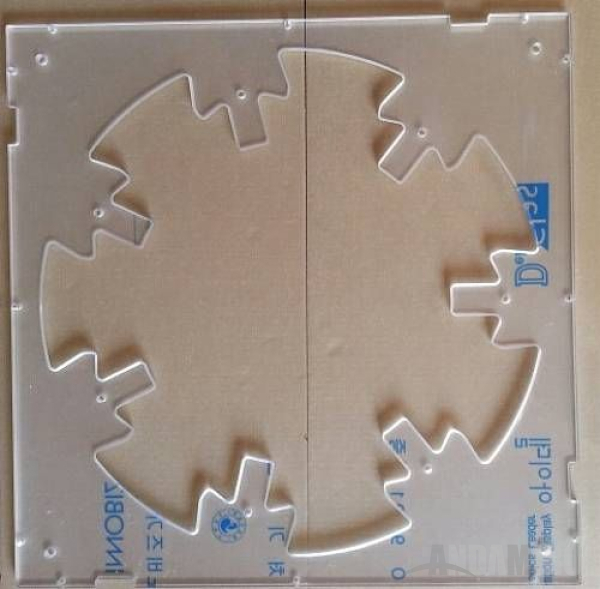

69	TARGET DISPLAY ACRYL .	TARGET DISPLAY ACRYL MSSS0PRO012	Part picture
70	WEB ACR SHEET SUPER STAR	WEB ACR SHEET ASUS0PAT001	Part picture
